Part Names and Functions
1-4 OPERATION GUIDE

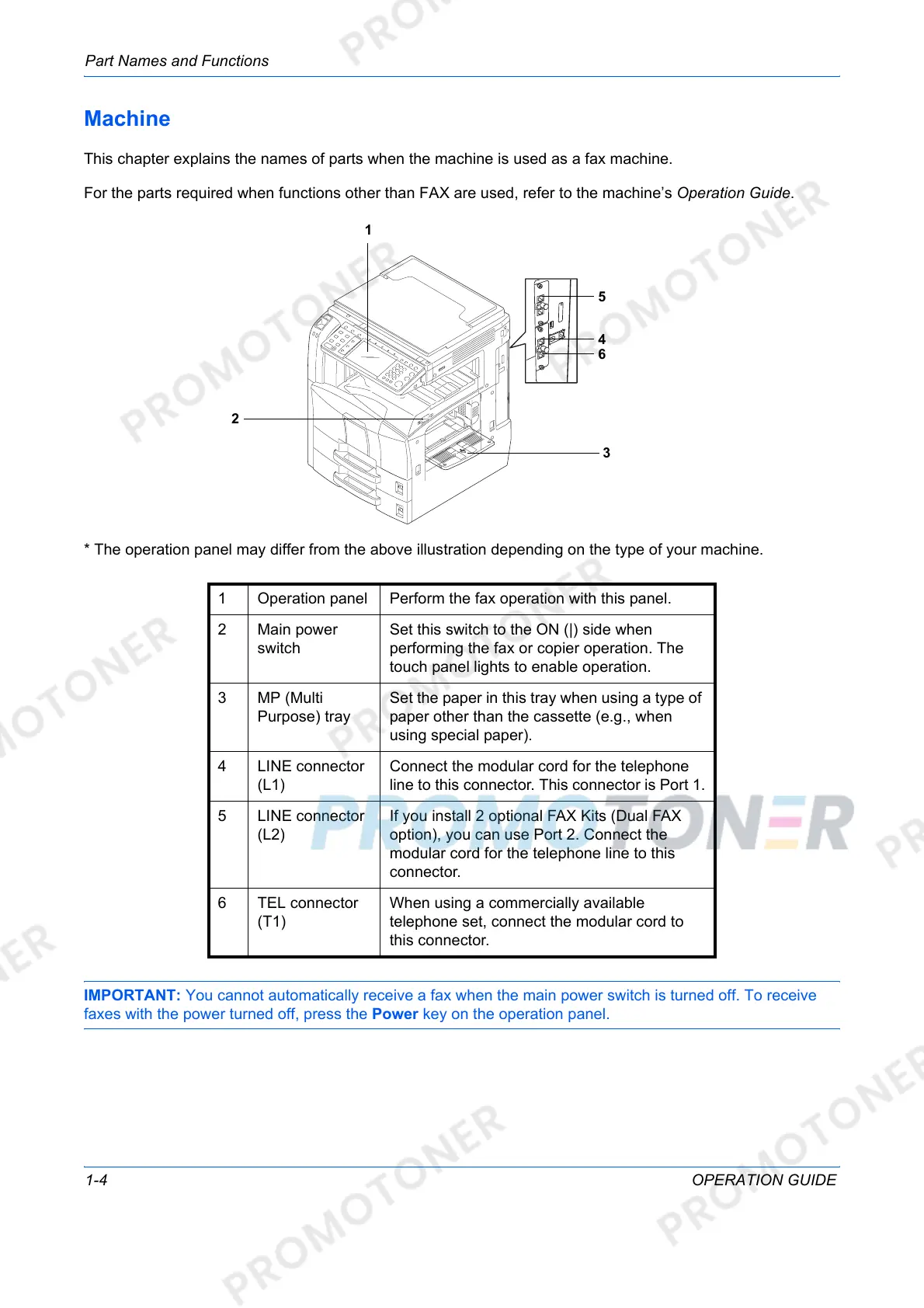

Machine
This chapter explains the names of parts when the machine is used as a fax machine.
For the parts required when functions other than FAX are used, refer to the machine’s Operation Guide.
* The operation panel may differ from the above illustration depending on the type of your machine.
IMPORTANT: You cannot automatically receive a fax when the main power switch is turned off. To receive
faxes with the power turned off, press the Power key on the operation panel.
1
3
5
2
4
6
1 Operation panel Perform the fax operation with this panel.
2 Main power
switch
Set this switch to the ON (|) side when
performing the fax or copier operation. The
touch panel lights to enable operation.
3MP (Multi
Purpose) tray
Set the paper in this tray when using a type of
paper other than the cassette (e.g., when
using special paper).
4 LINE connector
(L1)
Connect the modular cord for the telephone
line to this connector. This connector is Port 1.
5 LINE connector
(L2)
If you install 2 optional FAX Kits (Dual FAX
option), you can use Port 2. Connect the
modular cord for the telephone line to this
connector.
6 TEL connector
(T1)
When using a commercially available
telephone set, connect the modular cord to
this connector.
To Next Page
