3. Other Field Service Ver. 2.0 Jan. 2008
16
SD-505
Maintenance

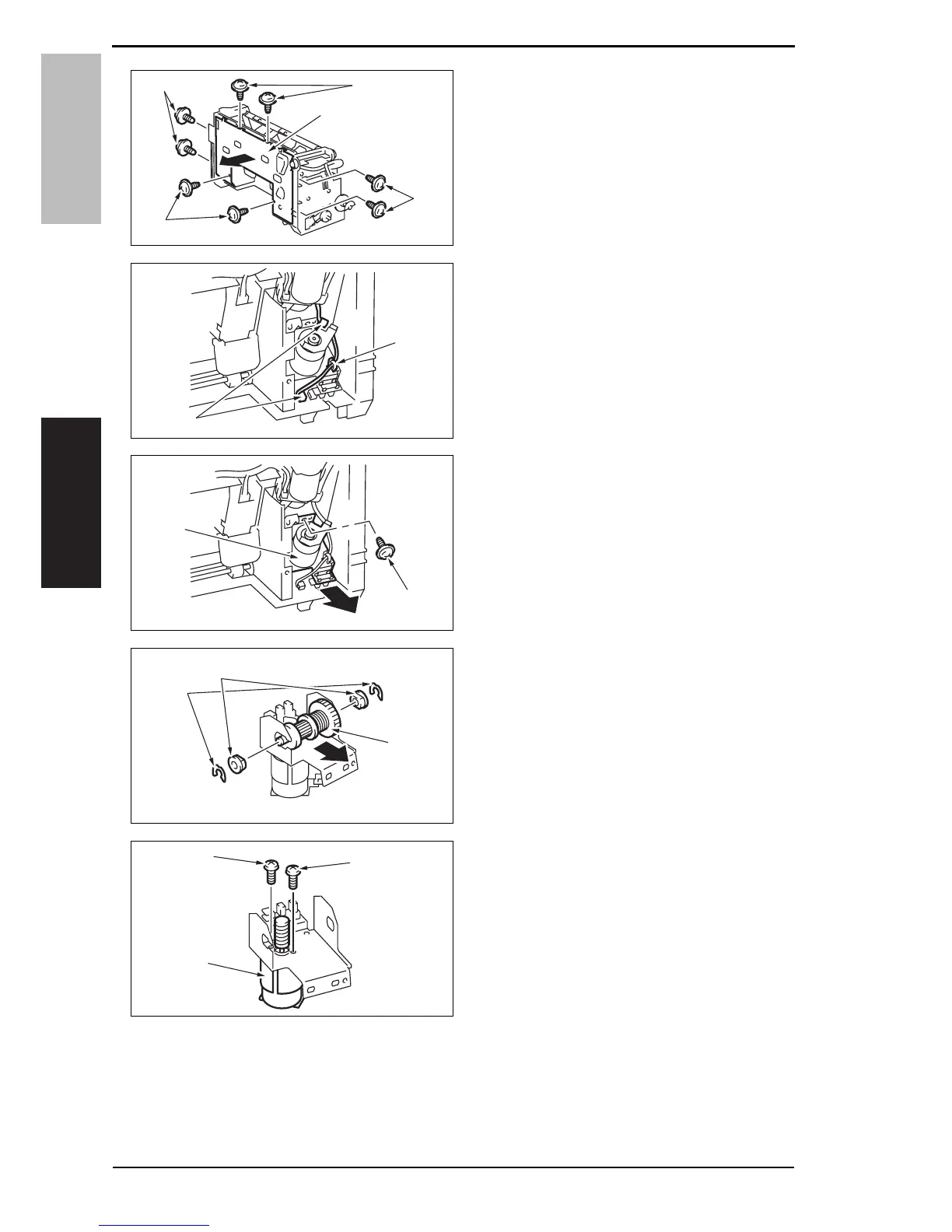

11. Remove eight screws [1], and
remove the lower cover [2].
12. Remove the wire saddle [1], and dis-
connect two connectors [2].
13. Remove the screw [1], and remove
the in & out guide motor assy [2].
14. Remove two C-rings [1].
15. Remove two bushings [2], and
remove the clutch gear assy [3].
16. Remove two screws [1], and remove
the in & out guide motor [2].
4511F2C523DA
[2]
[1]
[1]
[1]
[1]
4511F2C529DA
[1]
[2]
4511F2C530DA
[1]
[2]
4511F2C531DA
[3]
[2]
[1]
4511F2C532DA
[1]
[1]
[2]
Service Manual Y108482-2
