Troubleshooting
Troubleshooting

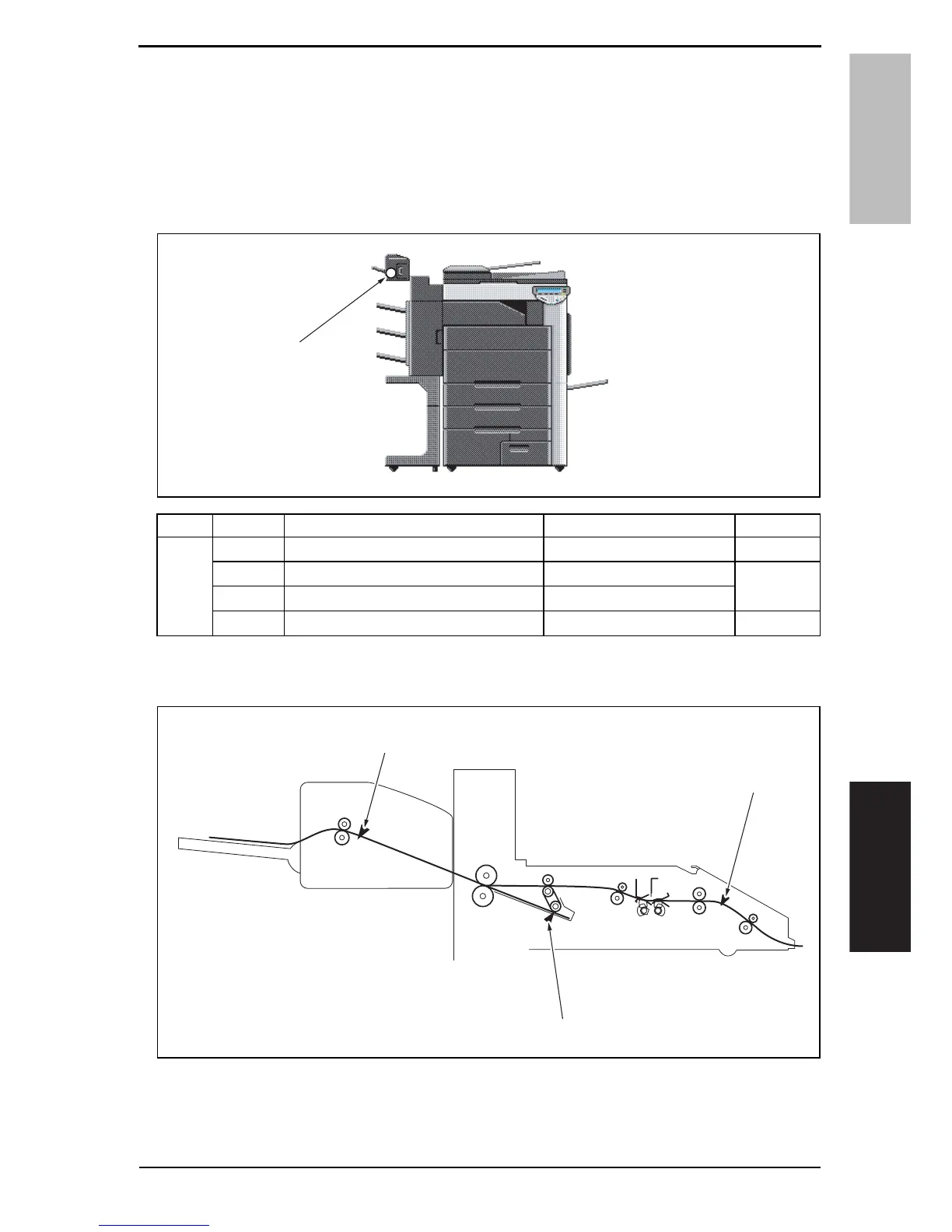

9.Jam display for d-Color MF450
9.1 Misfeed display
• When misfeed occurs, message, misfeed location “Blinking” and paper location “Light-
ing” are displayed on the touch panel of the main unit.
9.2 Sensor layout
Display Code Misfeed location Misfeed processing location Action
[1]
7221
Paper bundle exit misfeedFront doorP.45
7285
Staple unit 1 misfeed Saddle cover
P.46
7284
Staple unit 2 misfeed Saddle cover
7225
Creasing section misfeedFront doorP.47
4511F4C504DA
[1]
[1] Saddle exit sensor PS20
[2] Entrance sensor PS1
[3] Storage tray detect sensor PS3
4511F4C501DA
[1]
[3]
[2]
