3. Other Field Service Ver. 2.0 Jan. 2008
24
SD-505
Maintenance
NOTE
• Use care to mount the crease roller
assy 1 [1] and 2 [2] in the proper
directions.

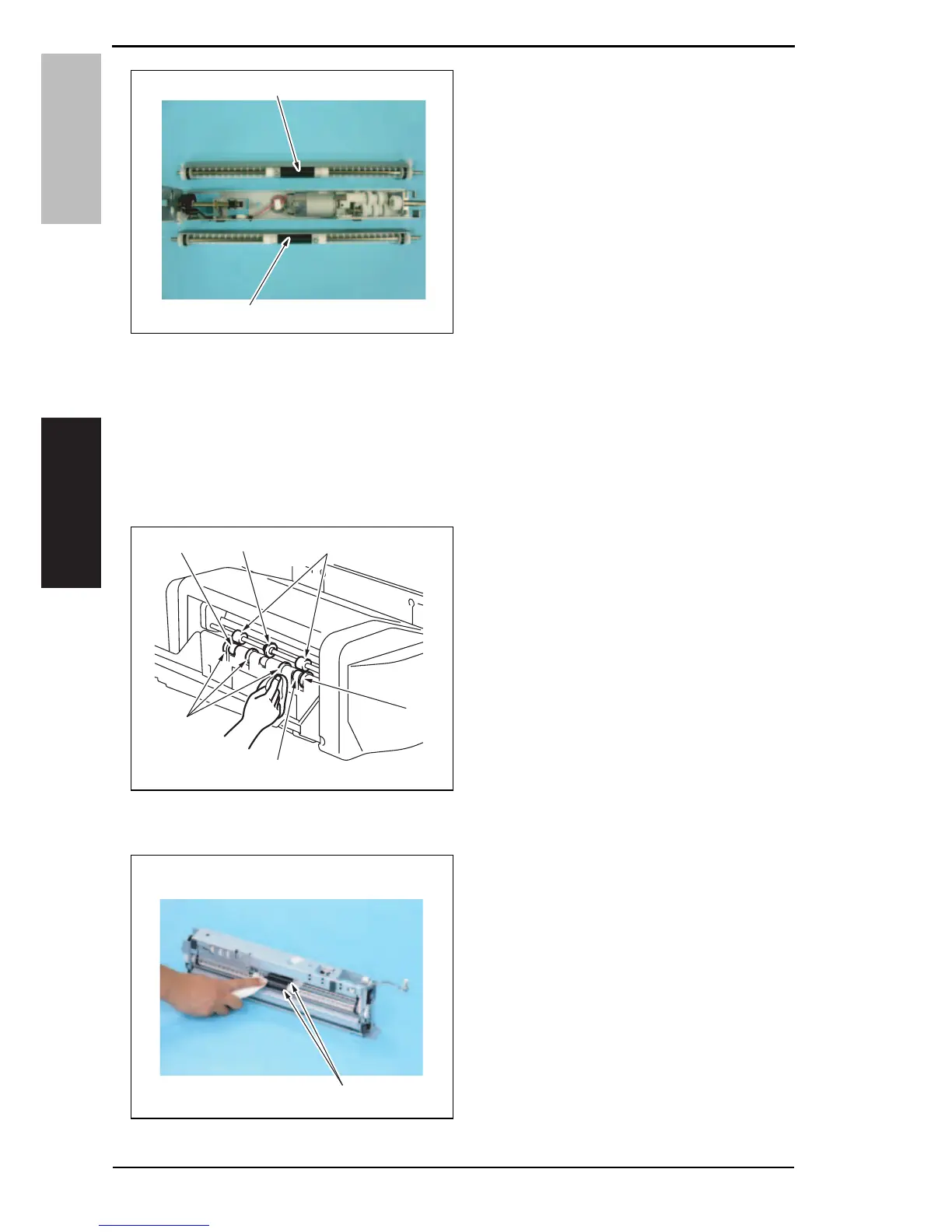

3.4 Cleaning procedure
NOTE
• The alcohol described in the cleaning procedure of maintenance represents the
isopropyl alcohol.
3.4.1 Cleaning of the rollers and rolls
1. Using a cleaning pad dampened with
alcohol, wipe the roller [1] and roll
[2].
2. Remove the crease unit.
See P.9
3. Using a cleaning pad dampened with
alcohol, wipe the roller [1].
4511F2C580DA
[1]
[2]
4511F2C502DA
[1]
[1]
[1]
[2]
[2]
[2]
4511F2C011DA
[1]
Service Manual Y108482-2
