6. Finisher operations Field Service Ver. 2.0 Jan. 2008
30
SD-505
Adjustment / Setting
6.3 Fold & Staple Pos. Adjustment
NOTE
Make this adjustment after any of the following procedures has been performed.
• When the crease unit has been replaced.
• When a deviation occurs in the crease.
• When fold angle adjustment has been made.

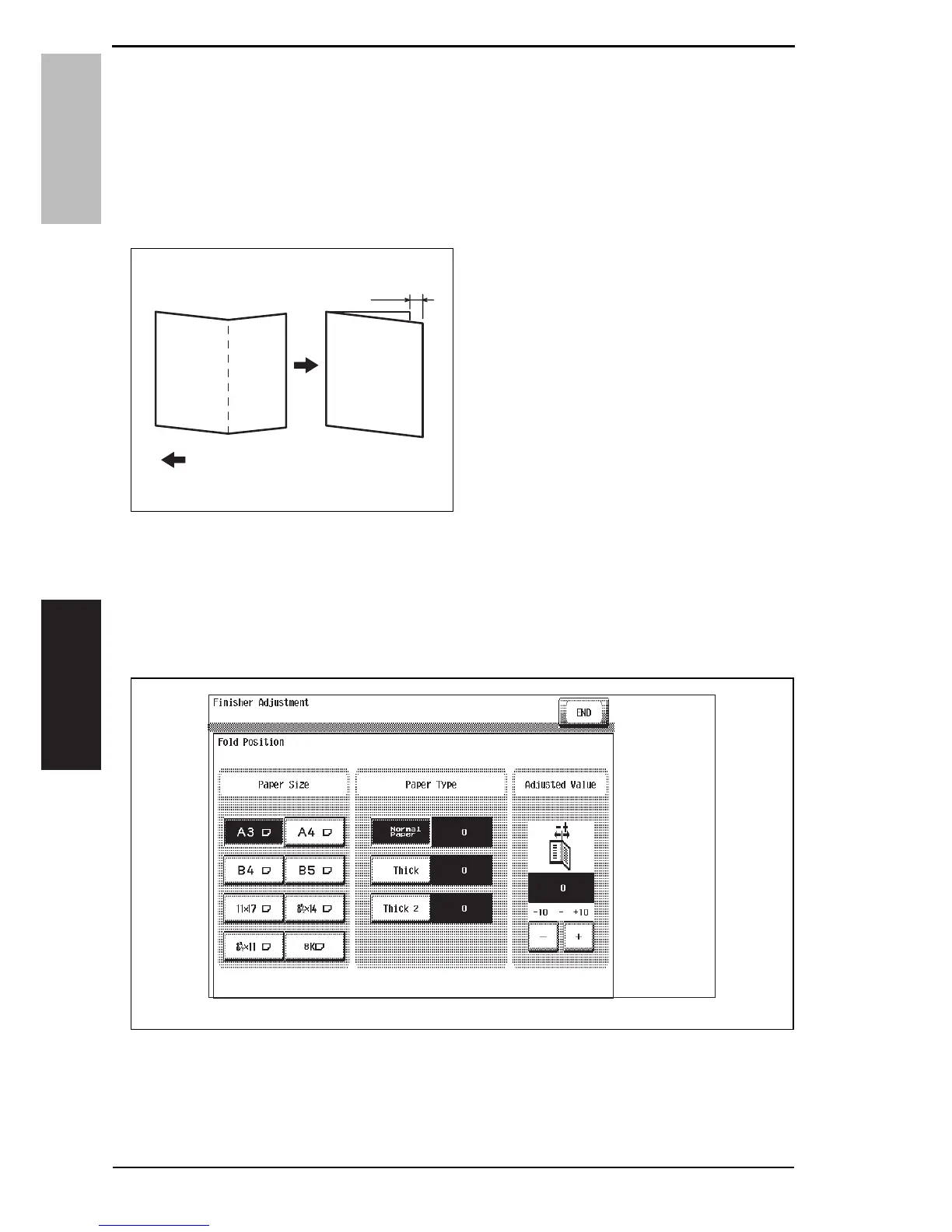

1. Make a copy in the crease mode. (A3 size)
2. Fold the copy fed out along the
crease.
3. Check the crease for deviation (Mea-
sure width A).
Specification: 0 ± 1.5 mm
4. When the width A does not fall within
the specified value, conduct the fol-
lowing adjustment.
5. Display the Service Mode screen.
See P.338 of the main body service manual.
6. Touch [Finisher].
7. Touch [CB-FN adjustment].
8. Touch [Fold & Staple Pos.Adjustment].
9. Touch [Fold Position Adjustment].
10. Touch [A3] and then touch [Normal Paper].
4511F3C505DA
A
Exit direction
4511F3E539DA
Service Manual Y108482-2
