Olivetti SD-505 - Crease Unit

Field Service Ver. 2.0 Jan. 2008 3. Other
9
SD-505Maintenance

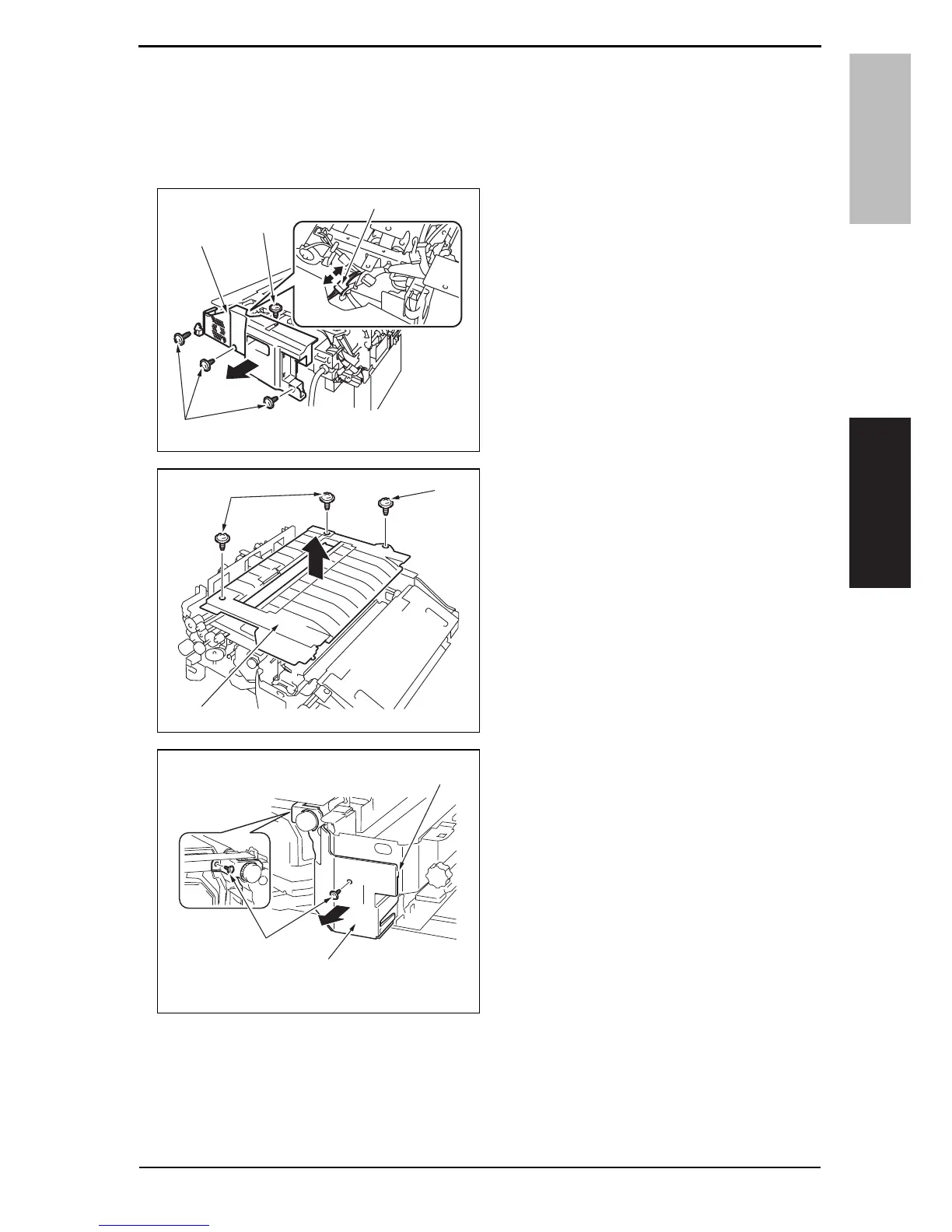

3.3.5 Crease unit
1. Remove the saddle unit.
See P.7
2. Remove the finisher unit.
See P.34 of the FS-519/PK-515/OT-602 service manual.
3. Remove four screws [1] and remove
the finisher unit rear cover [2].
4. Disconnect the connector [3].
5. Remove three screws [1] and
remove the finisher unit upper cover
[2].
6. Remove two screws [1] and remove
the finisher unit right front cover [2].
NOTE
• At reinstallation, first fit the tab [3]
into position.
4511F2C560DA
[3]
[1]
[2]
[1]
4511F2C561DA
[1]
[1]
[2]
4511F2C562DA
[2]
[3]
[1]
Y108482-2 Service Manual
