Field Service Ver. 2.0 Jan. 2008 7. Mechanical adjustment
35
SD-505Adjustment / Setting

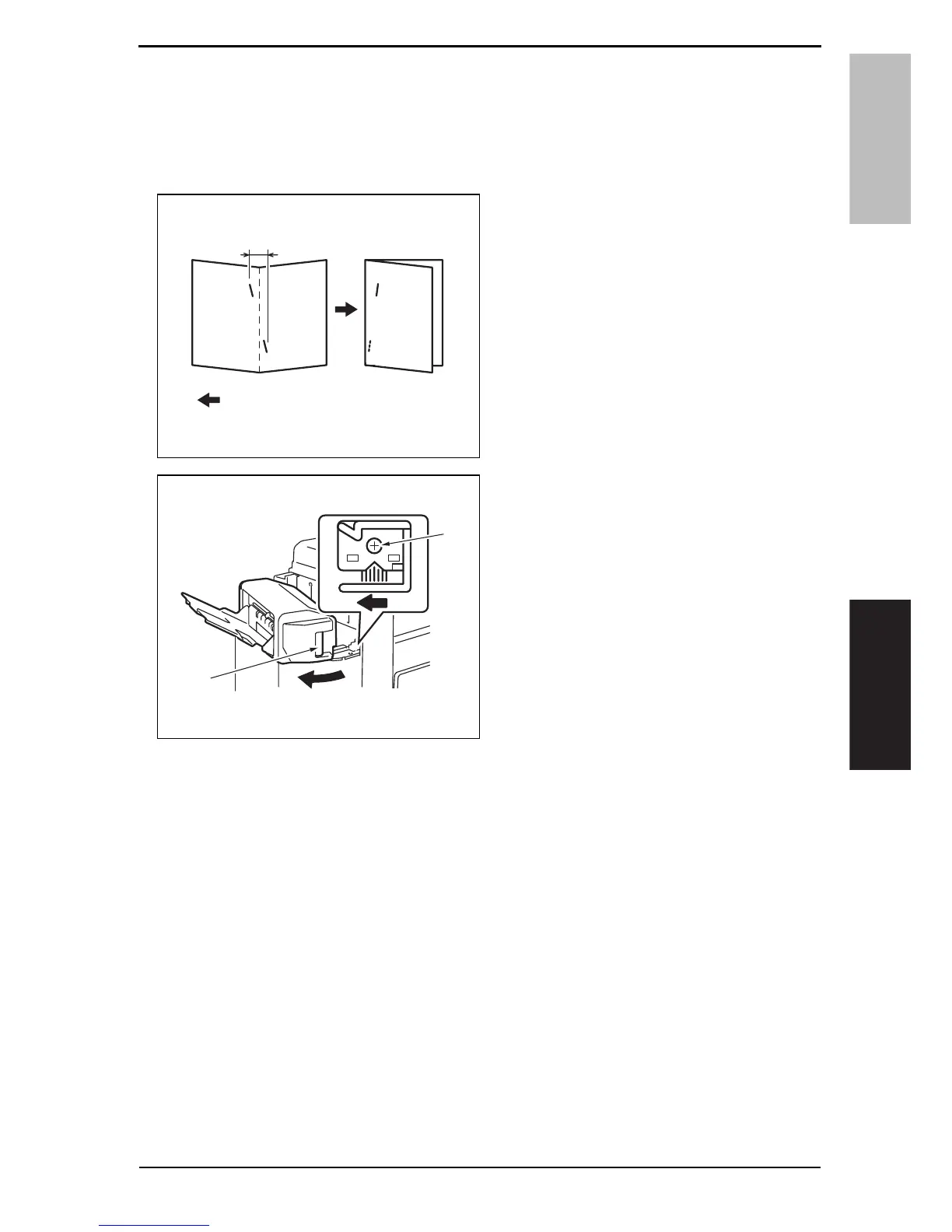

7.2 Center Staple Angle Adjustment
NOTE
Make this adjustment after any of the following procedures has been performed.
• When staple unit has been replaced.
• When a slant occurs in the position of the center staple.
1. Load a five-page A4 document in the
document feed tray.
2. Select the center staple mode and
make a copy. (A3 Size)
3. Check the staple position for devia-
tion from the crease (Measure width
A).
Specification: 0 ± 1.5 mm
4. If the staple position is slanted as
shown on the left, make the following
adjustment.
5. Release the lock release lever [1] of
the saddle unit.
6. Loosen the adjustment screw [2] and
move the lock lever to the left to
make the adjustment.
• If the staple position is slanted oppo-
site to the figure of step 2, move the
lock lever to the right to make the
adjustment.
7. Make another copy and check the staple position.
4511F3C507DA
Exit direction
A
4511F3C508DA
[2]
[1]
Y108482-2 Service Manual
