Field Service Ver. 2.0 Jan. 2008 3. Other
17
SD-505Maintenance

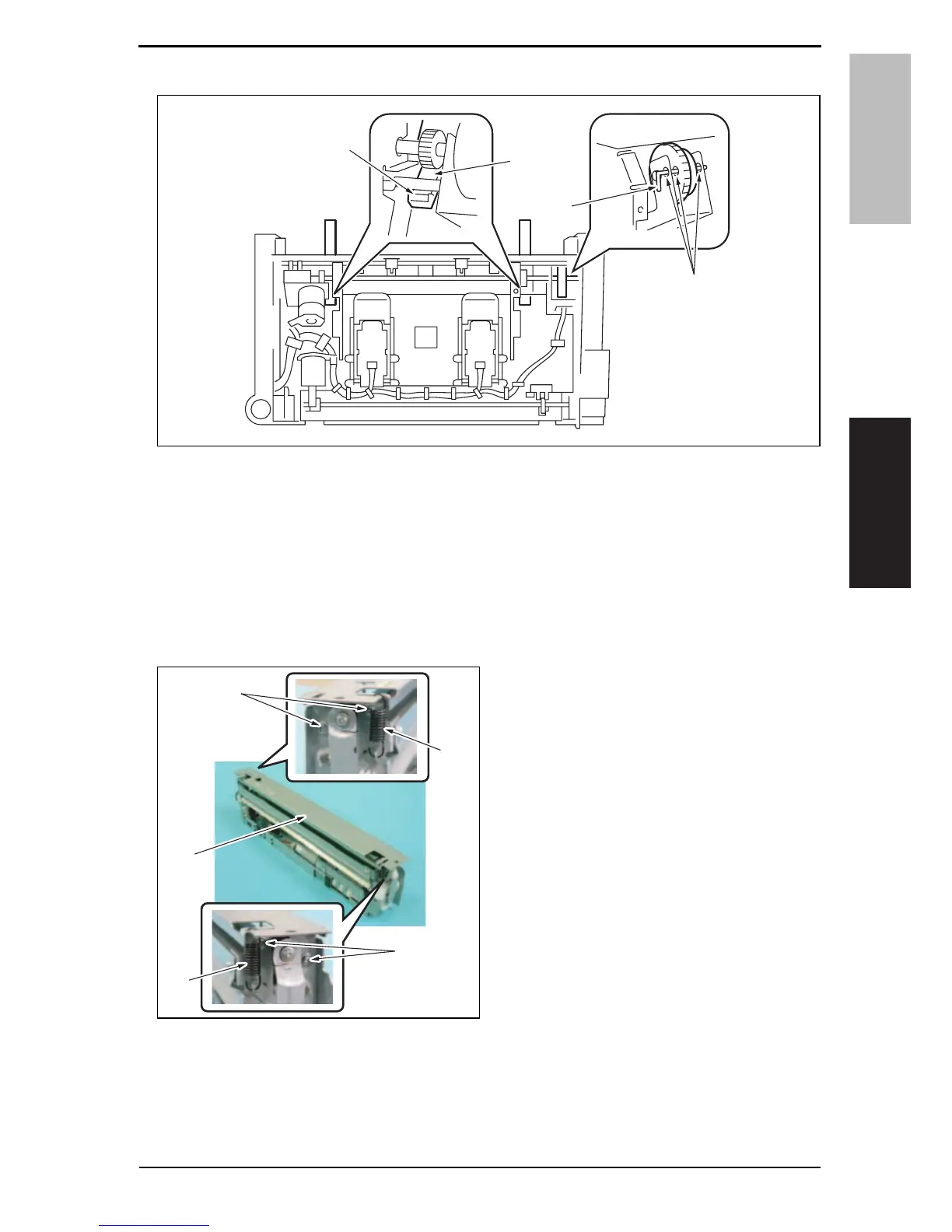

Precaution for in & out guide motor reinstallation
1. Press the two in & out guides [1] in and check that they touch the stopper [2] simulta-
neously.
2. Check that pins [4] can be inserted through the positioning holes [3] (3 holes) of the in
& out guide sensor assy.
3. Use two screws to secure the in & out guide motor.
3.3.8 Crease roller
1. Remove the crease unit.
See P.9
2. Remove two springs [1] and four
screws [2], and remove the upper
plate [3].
4511F2C533DA
[1]
[2]
[3]
[4]
4511F2C565DA
[1]
[1]
[2]
[2]
[3]
Y108482-2 Service Manual
