Olivetti SD-505 - Saddle Unit

Field Service Ver. 2.0 Jan. 2008 3. Other
7
SD-505Maintenance

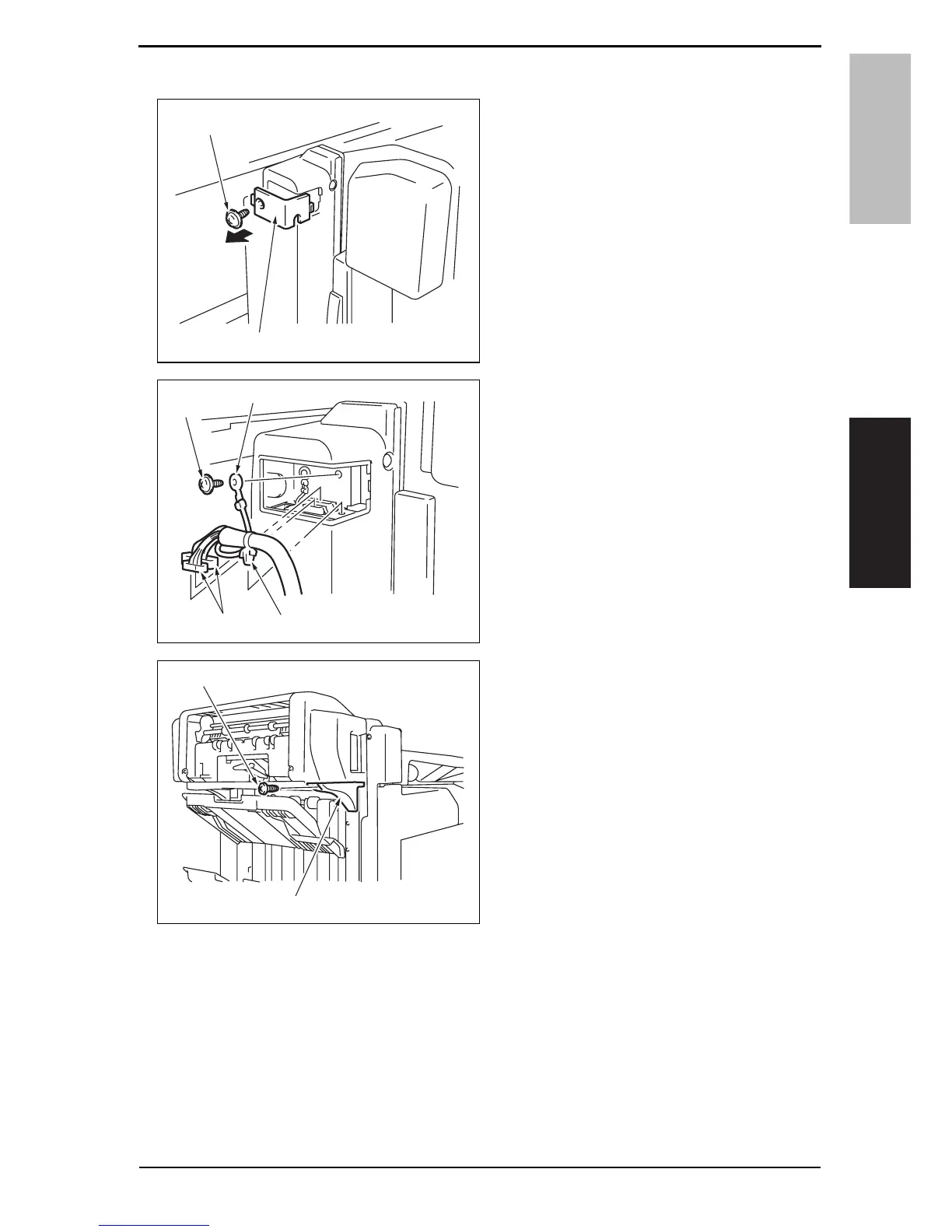

3.3.4 Saddle unit
1. Remove the screw [1], and remove
the connector cover [2].
2. Remove the screw [1], and remove
the ground wire [2].
3. Disconnect two connectors [3].
4. Remove the snap band [4].
5. Remove the screw [1], and remove
the mounting bracket [2].
4511F2C555DA
[2]
[1]
4511F2C556DA
[1]
[2]
[3] [4]
4511F2C557DA
[1]
[2]
Y108482-2 Service Manual
