Field Service Ver. 2.0 Jan. 2008 8. Jam display
37
SD-505
Troubleshooting
Troubleshooting

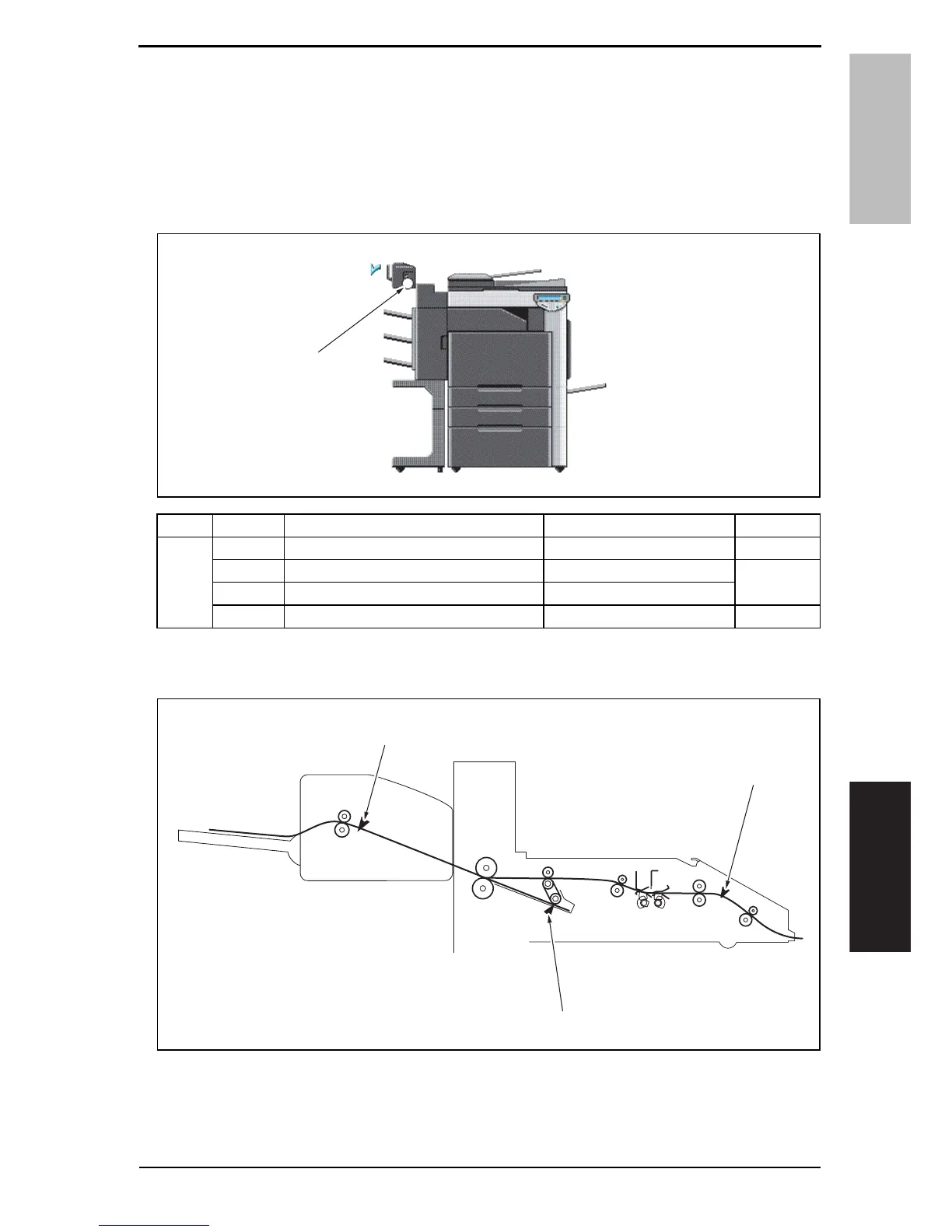

8.Jam display for d-Color MF350 / MF250 / MF201Plus
8.1 Misfeed display
• When misfeed occurs, message, misfeed location “Blinking” and paper location “Light-
ing” are displayed on the touch panel of the main body.
8.2 Sensor layout
Display Code Misfeed location Misfeed processing location Action
[1]
7221 Paper bundle exit misfeed Front door P. 3 9
7285 Staple unit 1 misfeed Saddle cover
P. 4 0
7284 Staple unit 2 misfeed Saddle cover
7225 Creasing section misfeed Front door P. 4 1
4511F4C505DA
[1]
[1] Saddle exit sensor PS20
[2] Entrance sensor PS1
[3] Storage tray detect sensor PS3
4511F4C501DA
[1]
[3]
[2]
Y108482-2 Service Manual
