3. Other Field Service Ver. 2.0 Jan. 2008
18
SD-505
Maintenance

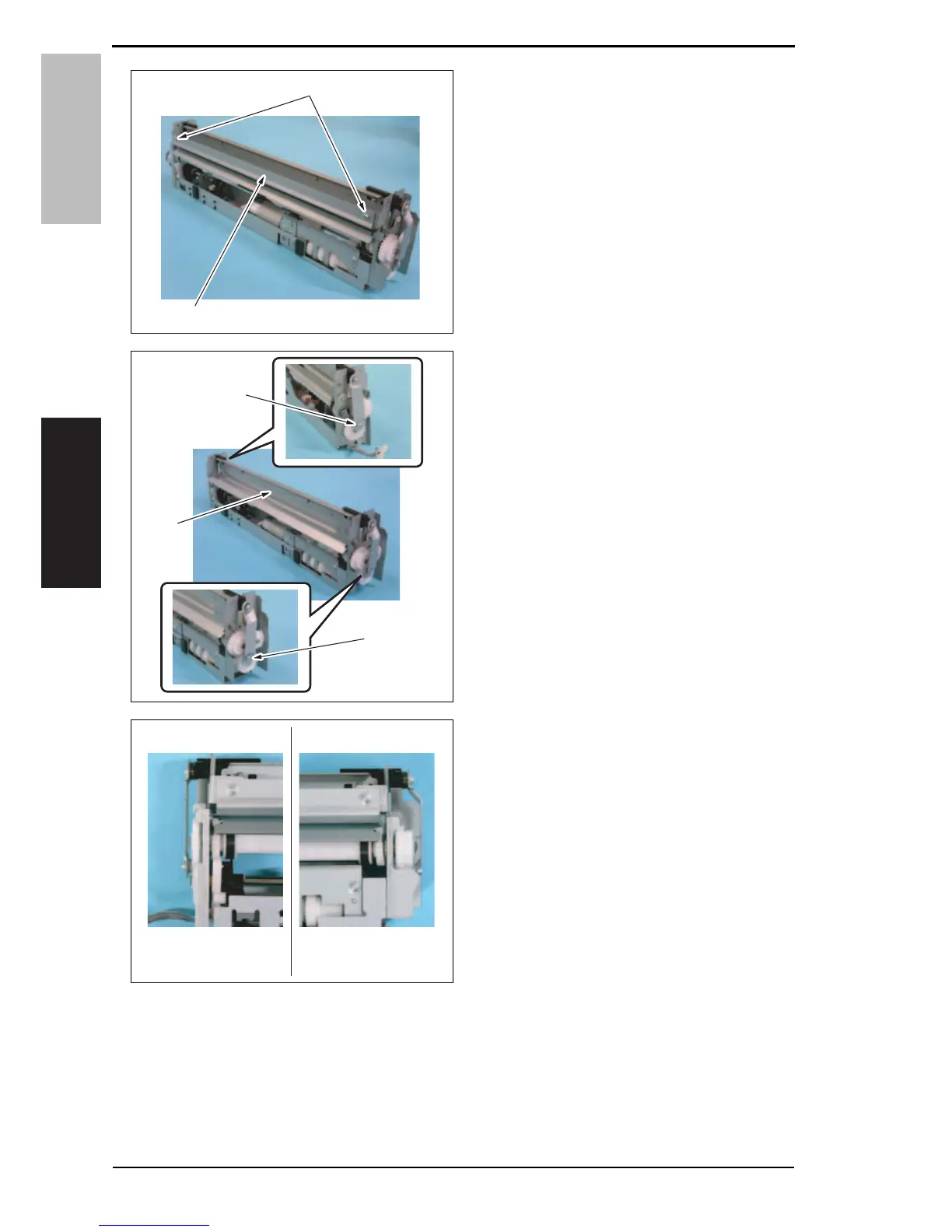

3. Remove two screws [1], and remove
the guide plate [2].
4. Remove two screws [1], and remove
the chopper assy [2].
NOTE
• Install the chopper assy in the
direction shown in the left figure.
4511F2C566DA
[2]
[1]
4511F2C567DA
[1]
[1]
[2]
4511F2C583DA
Front Rear
