Field Service Ver. 2.0 Jan. 2008 3. Other
19
SD-505Maintenance

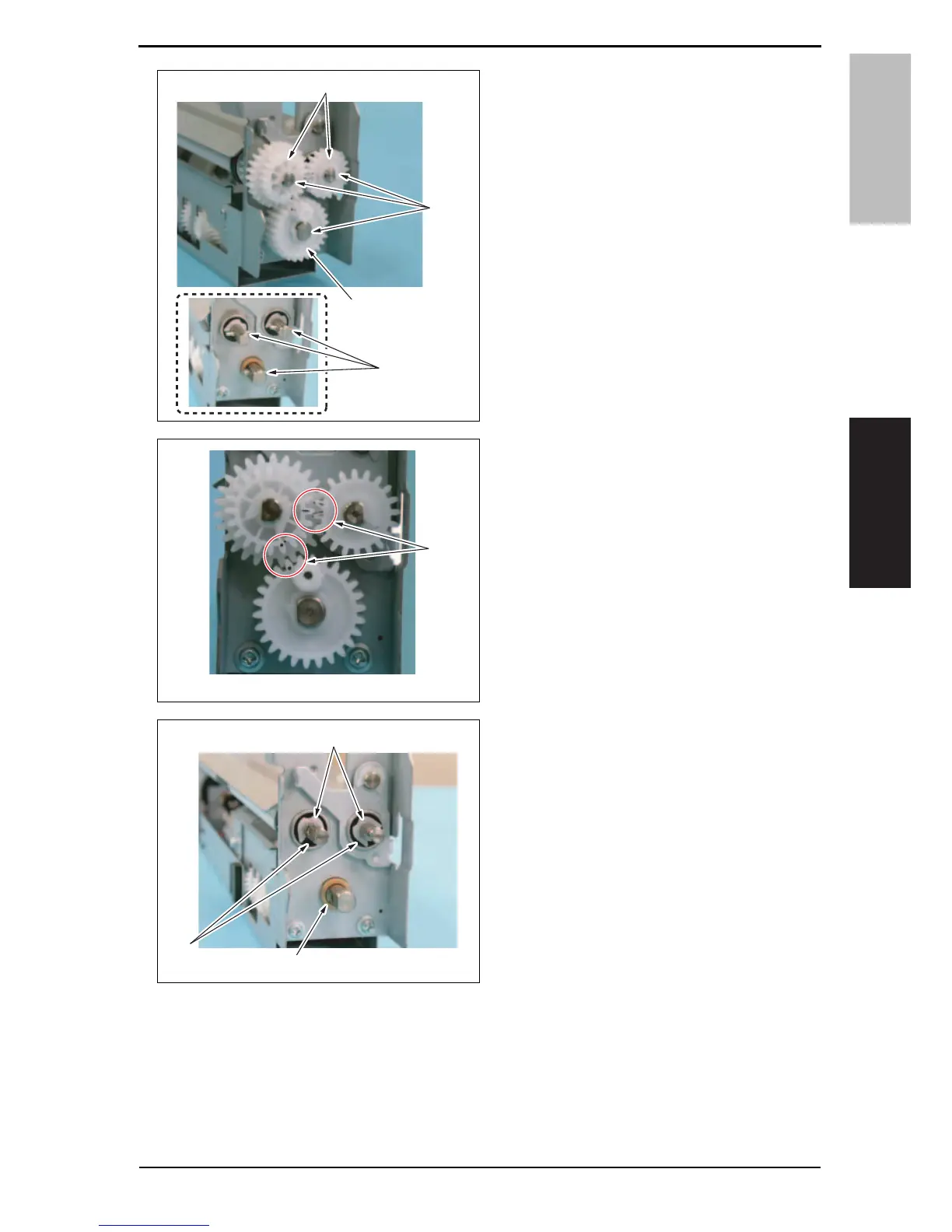

5. Remove three C-rings [1] and three
pins [2], and remove three gears [3].
NOTE
• Use care not to lose the pin.
NOTE
• Install the gear so that the mark [1]
is aligned to the position shown in
the left figure.
6. Remove two C-rings [1], and remove
two bearings [2].
7. Remove the bushing [3].
4511F2C568DA
[1]
[2]
[3]
[3]
4511F2C569DA
[1]
4511F2C570DA
[1]
[2]
[3]
Y108482-2 Service Manual
