3. Other Field Service Ver. 2.0 Jan. 2008
20
SD-505
Maintenance

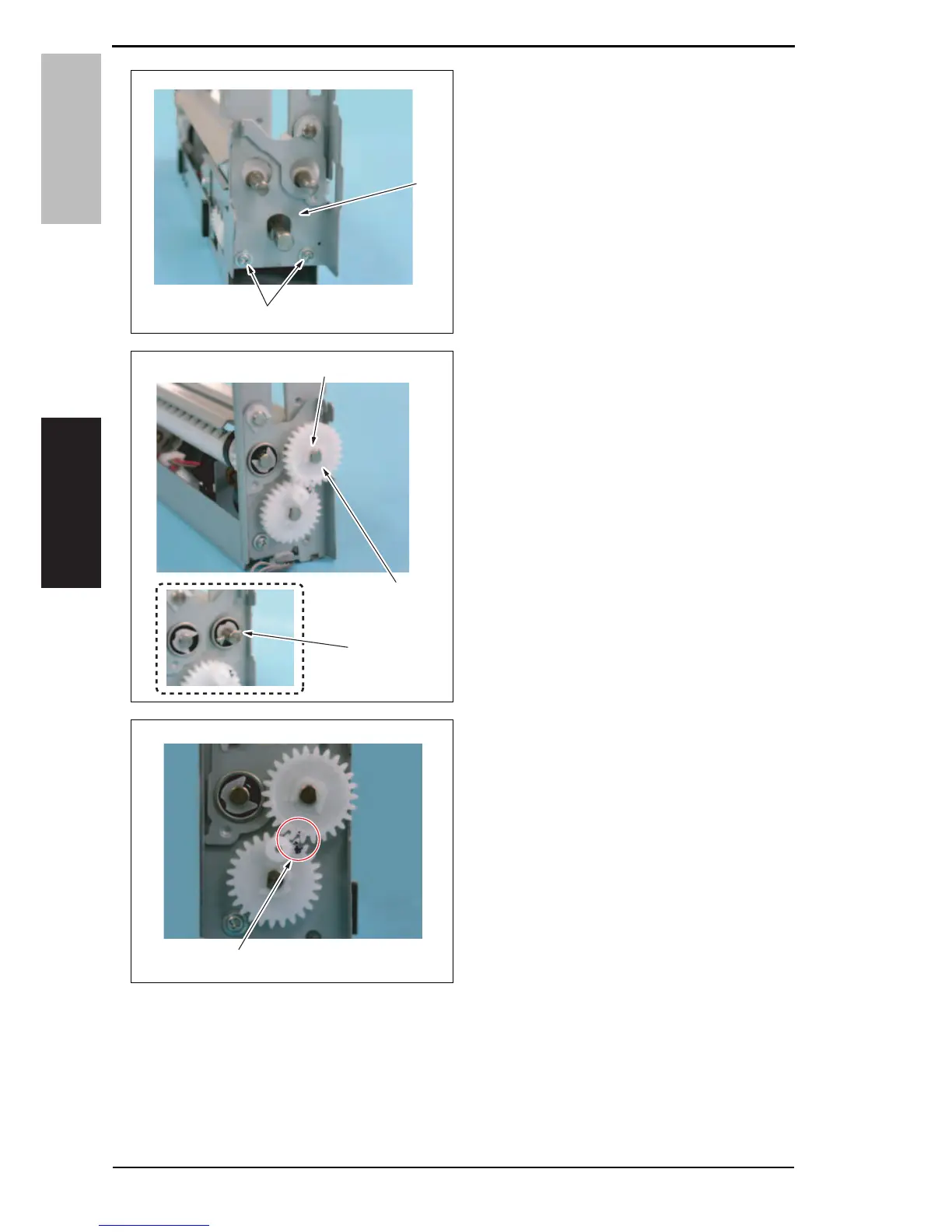

8. Remove two screws [1], and remove
the rear holder [2].
9. Remove the C-ring [1] and the pin
[2], and remove the gear [3].
NOTE
• Use care not to lose the pin.
NOTE
• Install the gear so that the mark [1]
is aligned to the position shown in
the left figure.
4511F2C571DA
[1]
[2]
4511F2C572DA
[1]
[3]
[2]
4511F2C573DA
[1]
Service Manual Y108482-2
