Field Service Ver. 2.0 Jan. 2008 3. Other
21
SD-505Maintenance

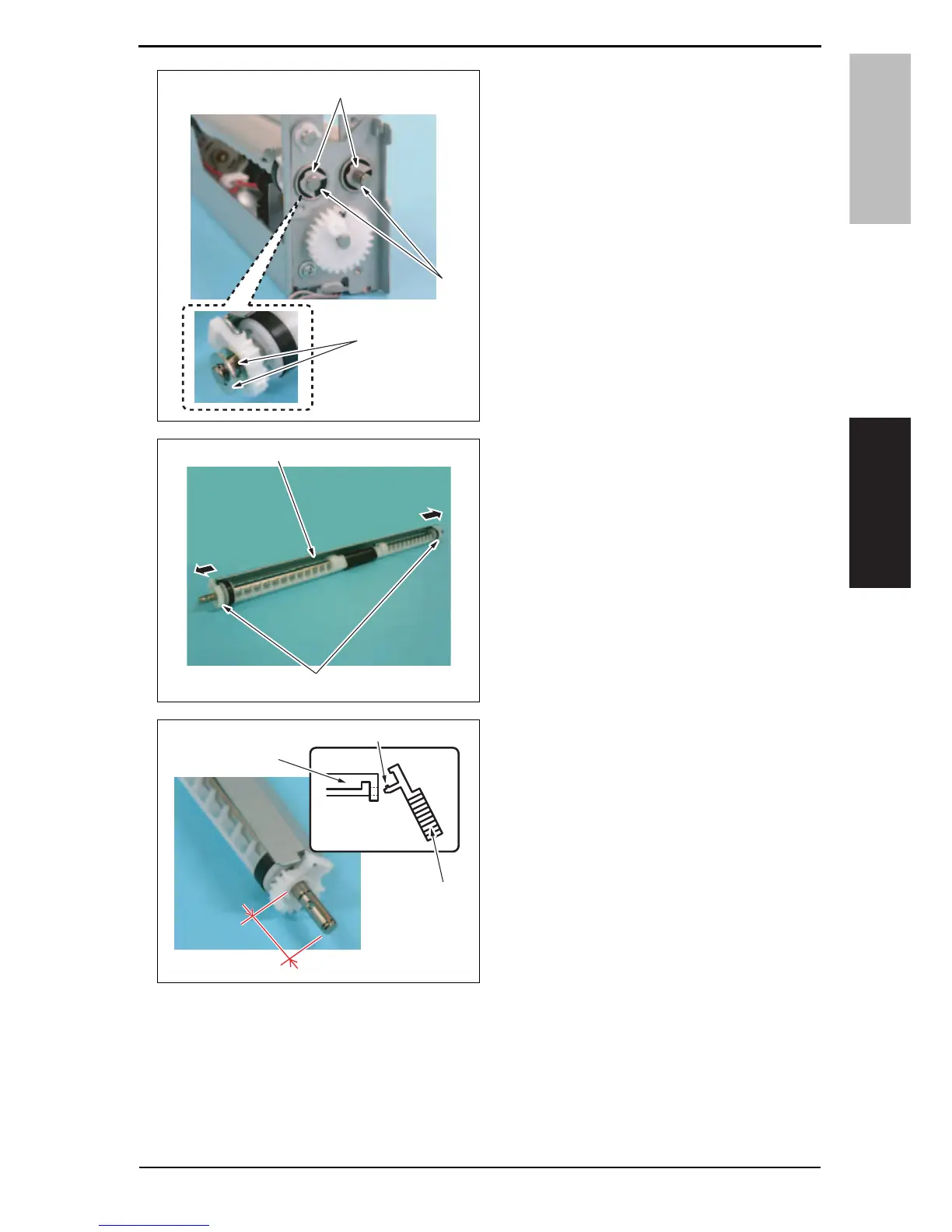

10. Remove two C-rings [1], two bear-
ings [2] and two washers [3].
NOTE
• Use care not to lose the washer.
11. Remove two gears [1] of crease
roller 1 assy, and remove the guide
plate [2].
NOTE
• When installing the gear [1] to the
guide plate [2], insert the gear [1] at
an angle and use care not to break
the tabs [3].
• Install the guide plate as shown on
the left.
4511F2C574DA
[1]
[2]
[3]
4511F2C581DA
[1]
[2]
4511F2C575DA
[1]
[2]
[3]
Long one
Y108482-2 Service Manual
