3. Other Field Service Ver. 2.0 Jan. 2008
22
SD-505
Maintenance

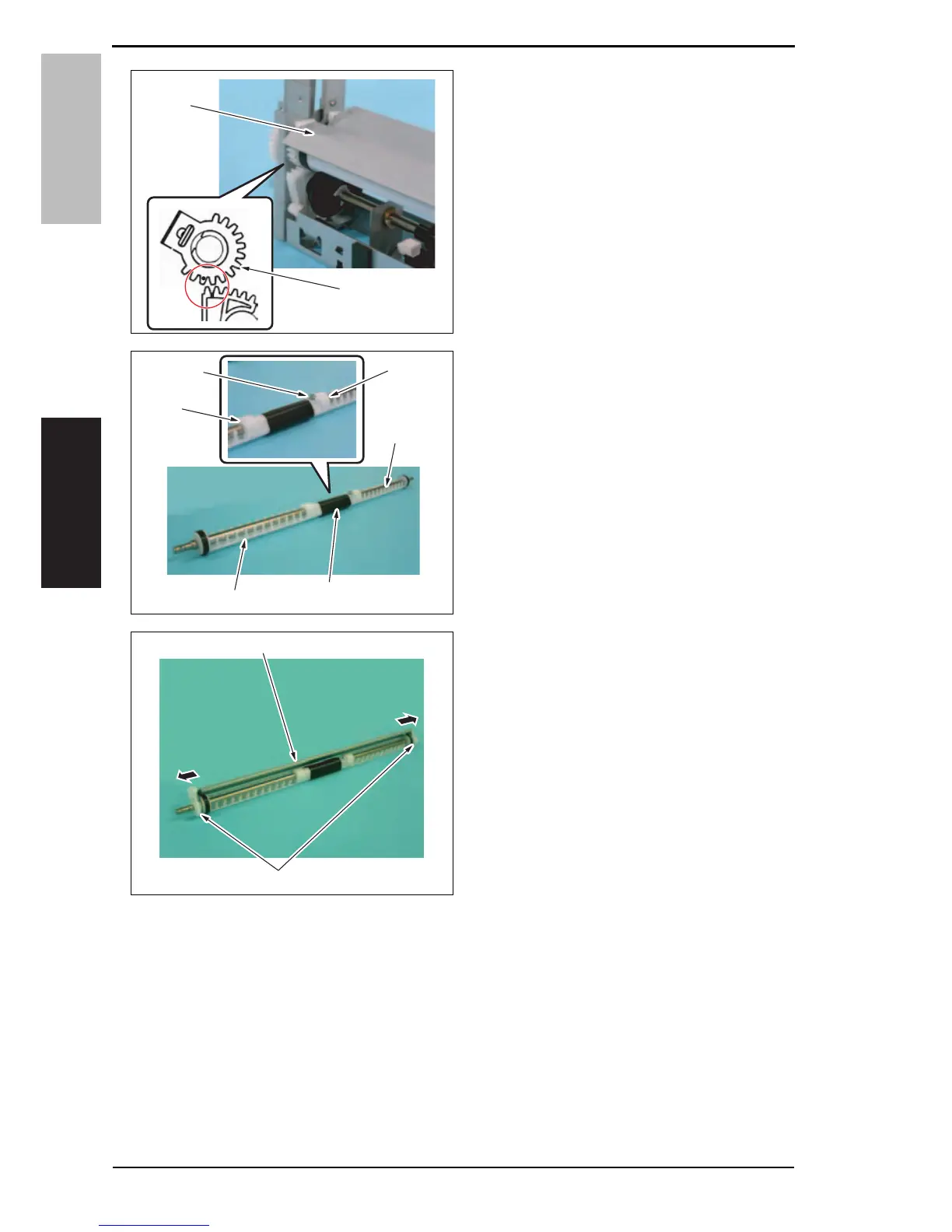

NOTE
• When mounting the crease roller 1
assy [1], mount it so that the tally
mark on the gear [2] for the crease
roller 1 and the tally mark on the
gear below will be next to each
other with the one on the gear [2]
being outer side.
12. Remove the screw [1].
13. Remove two C-rings [2] and remove
the crease roller A [3], B [4] and C
[5].
14. Remove two gears [1] of crease
roller 2 assy, and remove the guide
plate [2].
4511F2C576DA
[2]
[1]
4511F2C577DA
[1]
[2]
[2]
[5]
[4]
[3]
4511F2C582DB
[1]
[2]
Service Manual Y108482-2
