Field Service Ver. 2.0 Jan. 2008 3. Other
23
SD-505Maintenance

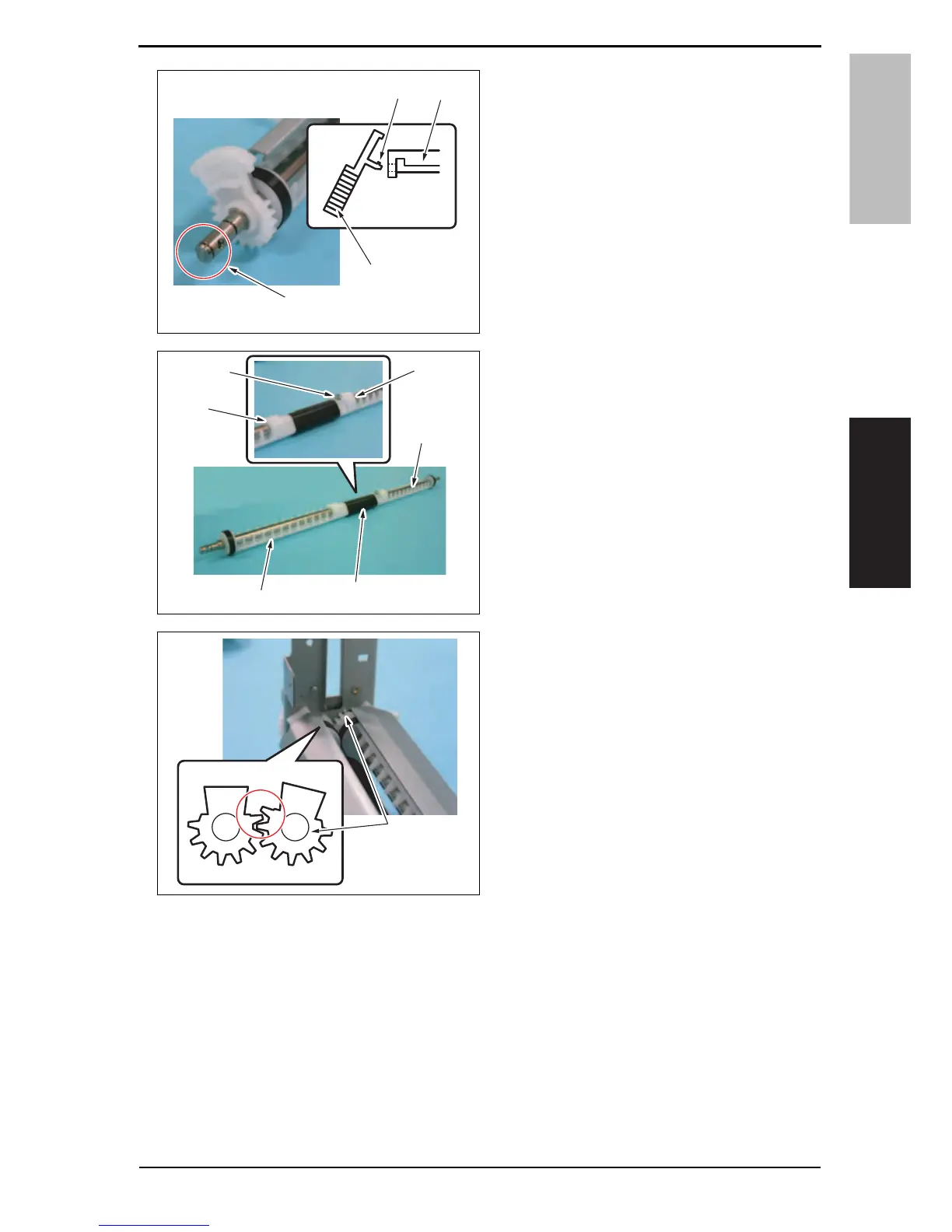

NOTE
• When installing the gear [1] to the
guide plate [2], insert the gear [1] at
an angle and use care not to break
the tabs [3].
• Install the gear and guide plate as
shown on the left.
15. Remove the screw [1].
16. Remove two C-rings [2] and remove
the crease roller A [3], B [4] and C
[5].
NOTE
• When mounting the crease roller
assy 2, mount it so that the gear [1]
for the crease roller 2 assy will be
over the gear for the cease roller 1
by one tooth.
4511F2C578DA
[1]
[3] [2]
D cutting
4511F2C577DA
[1]
[2]
[2]
[5]
[4]
[3]
4511F2C579DA
[1]
Y108482-2 Service Manual
