SD-505Adjustment / Setting

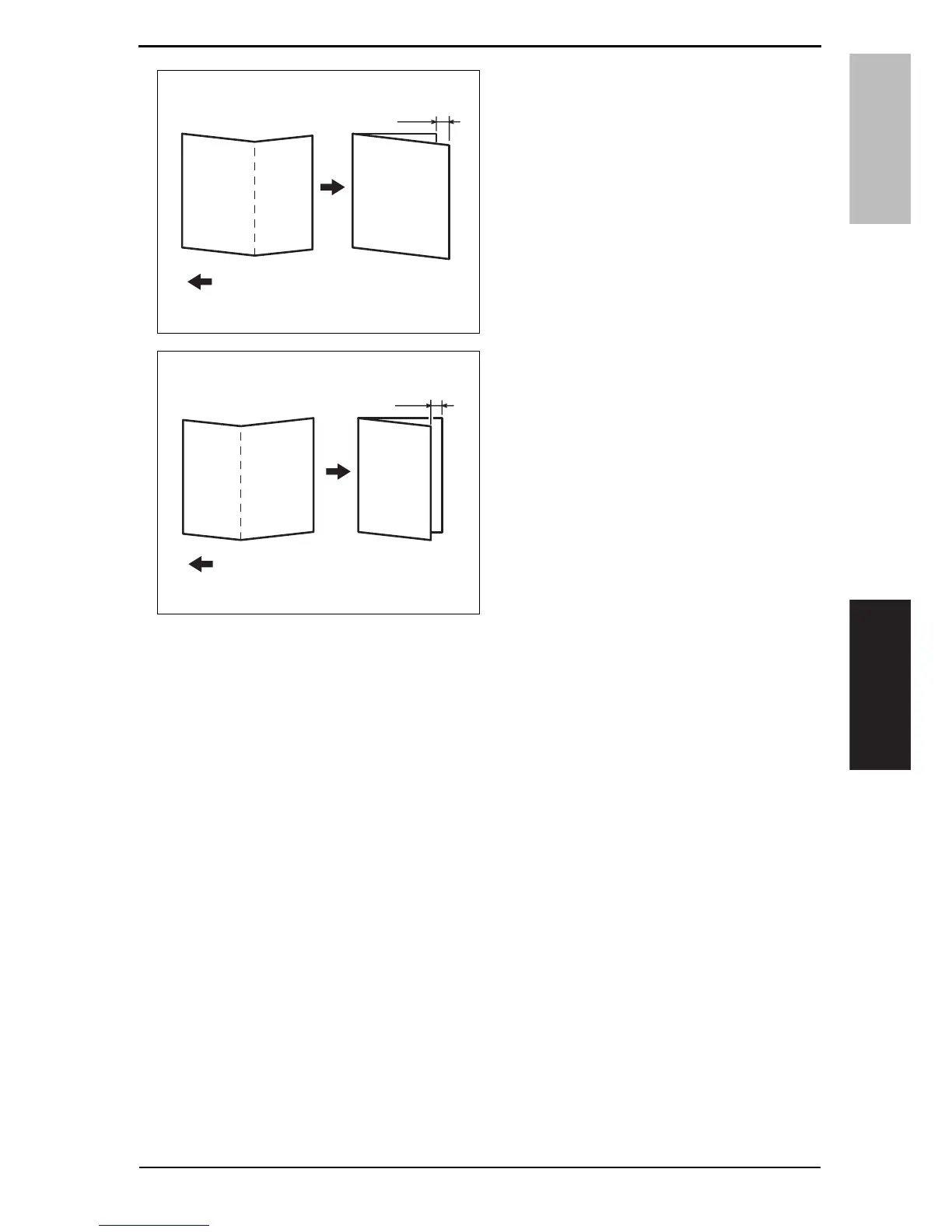

• If the fold is offset as shown on the left.
11. Touch [-] and set the appropriate
numeric value.
Adjustment range: 0 to -10
(1 increment 0.5 mm)
• If the fold is offset as shown on the left.
12. Touch [+] and set the appropriate
numeric value.
Adjustment range: 0 to +10
(1 increment 0.5 mm)
13. Touch [END].
14. Make another copy, and check the deviation.
15. Touch [Exit] on the Service Mode screen.
16. Turn OFF the main power switch, wait for 10 sec., then turn the switch ON.
4511F3C505DA
A
Exit direction
4511F3C506DA
A
Exit direction
