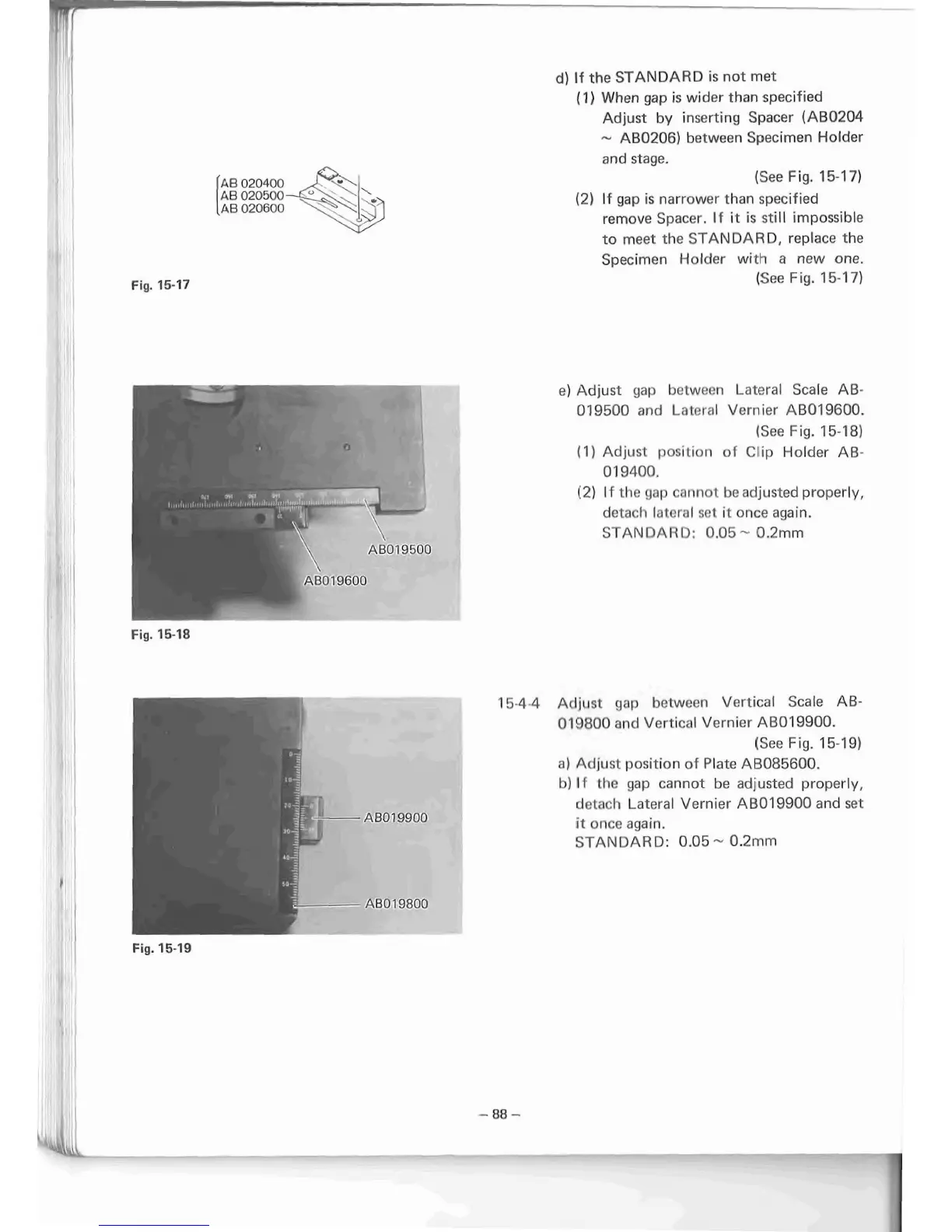

Fig. 15-?7
d) If the STANDARD is net met
( 1 ) When gap is wider than specified
Adjust by inserting Spacer (AB0204
- AB0206) between Specimen Holder
and stage.
(See Fig. 15-1 7)
(2) If gap is narrower than specified
remove Spacer. If it is still impossible
to meet the STANDARD, replace the
Specimen Holder with a new one.
{See Fig. 15-1 7)
e) Adjust gap between Lateral Scale AB-
1319500 and Lateral Vernier AB019600.
(See Fig. 15-18)
(1) Adjust position of Clip Holder AB-
01 9400.
(2) If the gap cannot be adjusted properly,
detach lateral set it once again.
STAN DAR 0: 0.05 - 0.2rnm
Fig. 15-78
15-4-4 Adjust gap between Vertical Scale AB-
019800 and Vertical Vernier AB019900.
[See Fig. 15-19)
a) Adjust position of Plate AB085600.
b) If the gap cannot be adjusted properly,
cletacli Lateral Vernier AB019900 and set
I
A0019900 it once again.
STANDAR D: 0.05 - 0.2mm
I
AB019800
I
Fig. 15-19
