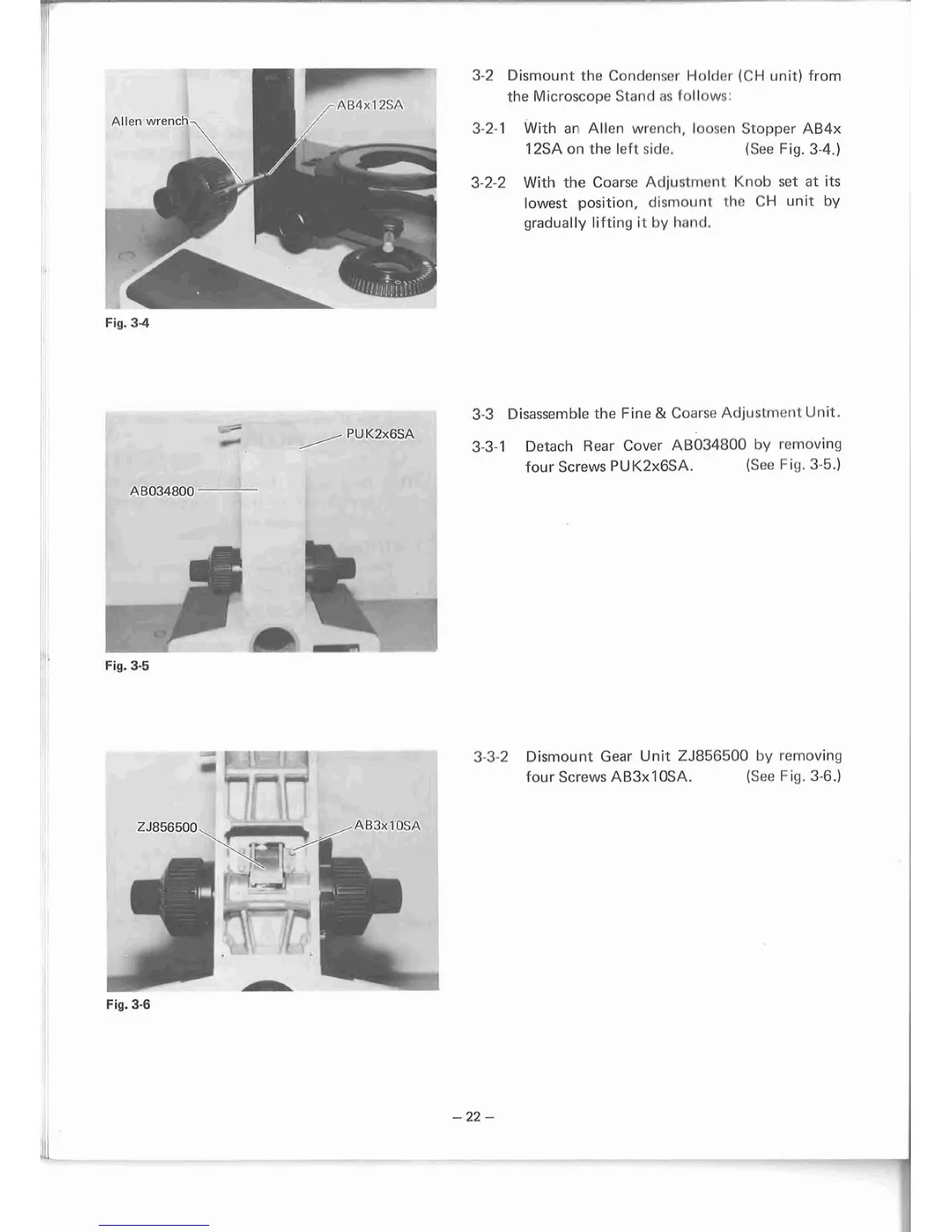

3-2 Dismount the Condenser Holder {CH unit) from
the Microscope Stand as follows:
3-2-1 With an, Allen wrench, loosen Stopper AB4x
12SA on the left side.
(See Fig. 3-4.)
3-2-2
With the Coarse Adjustrncnt Knob set at its
lowest position, dismount the CH unit by
gradually lifting it by hand.
Fig. 34
3-3 Disassemble the fine & Coarse Adjustment Unit.
/
-
4 PU K2x6SA
3-3-1
Detach Rear Cover ~~034800 by removing
four Screws PUK2x6SA. (See Fig. 3-5.)
h-
c.
Fig. 3-5
~C.7 YE-
',-+: 7
"~1.- - 4
, >-'
w
Fig, 3-6
3.3-2
Dismount Gear Unit ZJ856500 by removing
four Screws AB3xl OSA. (See Fig. 3-6.)
