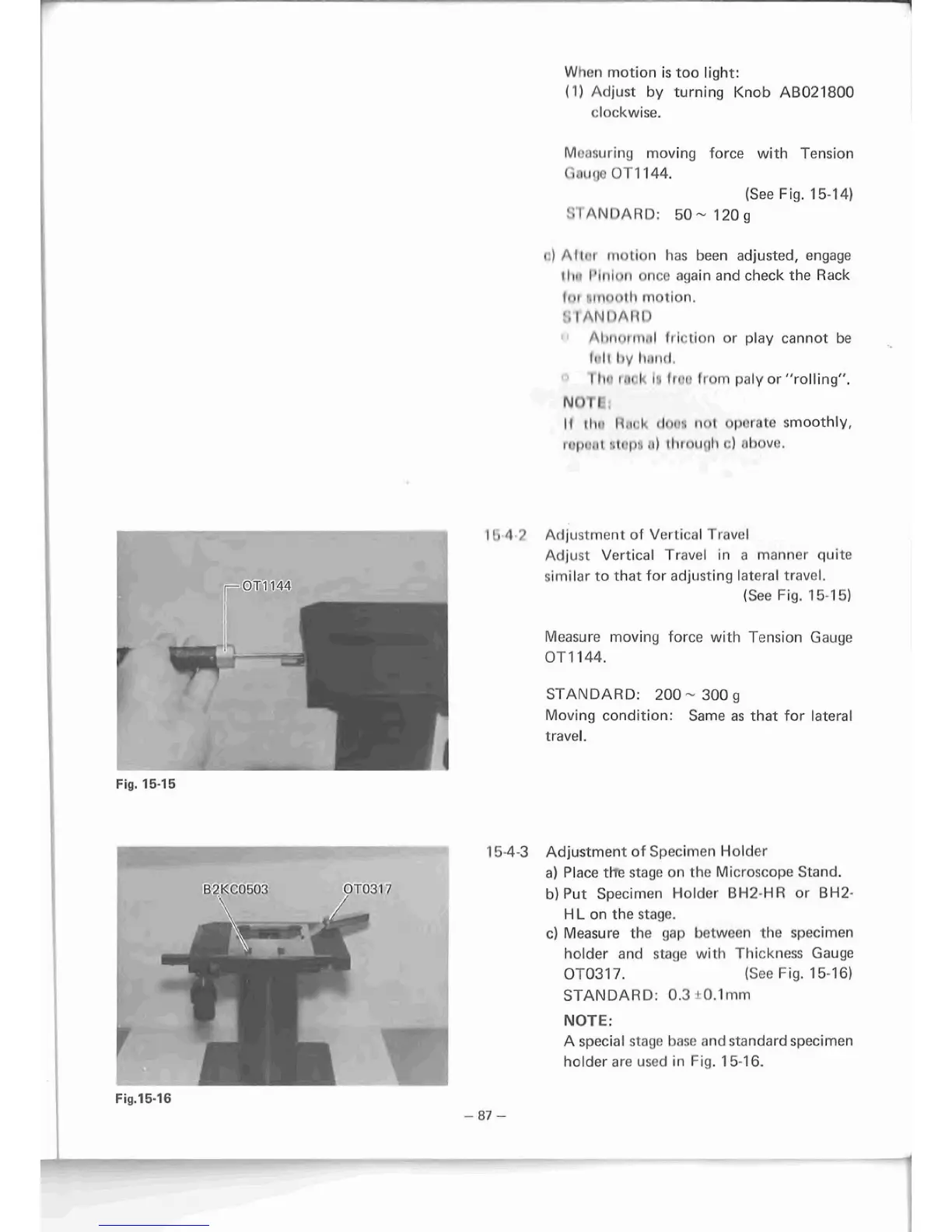

When motion is too light:
(11 Adjust by turning Knob ABQ21800
clockwise.
M~nsuring moving force with Tension
G nuqr? OT 1 144.
(See F ig. 1 5-1 4)
!:I'ANDARD: 50 - 120 g
I-) Alittr rr~otion has been adjusted, engage
I 1111 I'ir~in~~ once again and check the Rack
lrrr *:rl~r~lth motion.
', I AN!jAIIl>
Al III~II l~lrll friction or play cannot be
ll*ll l\v I~~II~~I~
1 lit* I rhc-C 14r Irvr1 from paly or '?rolling"'.
NIITF
11 1111% 1 Edllak tlrrclr owit oplvate smoothly,
1 ryrru;lt a;trhpt; :I) ~lir 0111111 C) nhnve.
1 !h 4 7
Adjustment of Vertical Travel
Adjust Vertical Travel in a manner quite
similar to that for adjusting lateral travel,
{See Fig. T 5-1 5)
Measure moving force with Tension Gauge
OT1144.
STANDARD: 200- 300g
Moving condition: Same as that for lateral
travel.
L---- - 15-4-3 Adjustment of Specimen Holder
a) Place the stage on the Microscope Stand.
B2KC0503 OT0317 b) Put Specimen Holder BH2-HR or BH2-
L- H'L on the stage.
.. - . 4~ c) Measure the gap between the specimen
holder and stage with Thickness Gauge
OT0317. (See iFig. 15-3 6)
STANDARD: 0.3 ? 0.1 mm
NOTE:
A special stage base and standard specimen
holder are used in Fig. 1 5-1 6.
