Olympus BH2 Series User Manual

AB021200

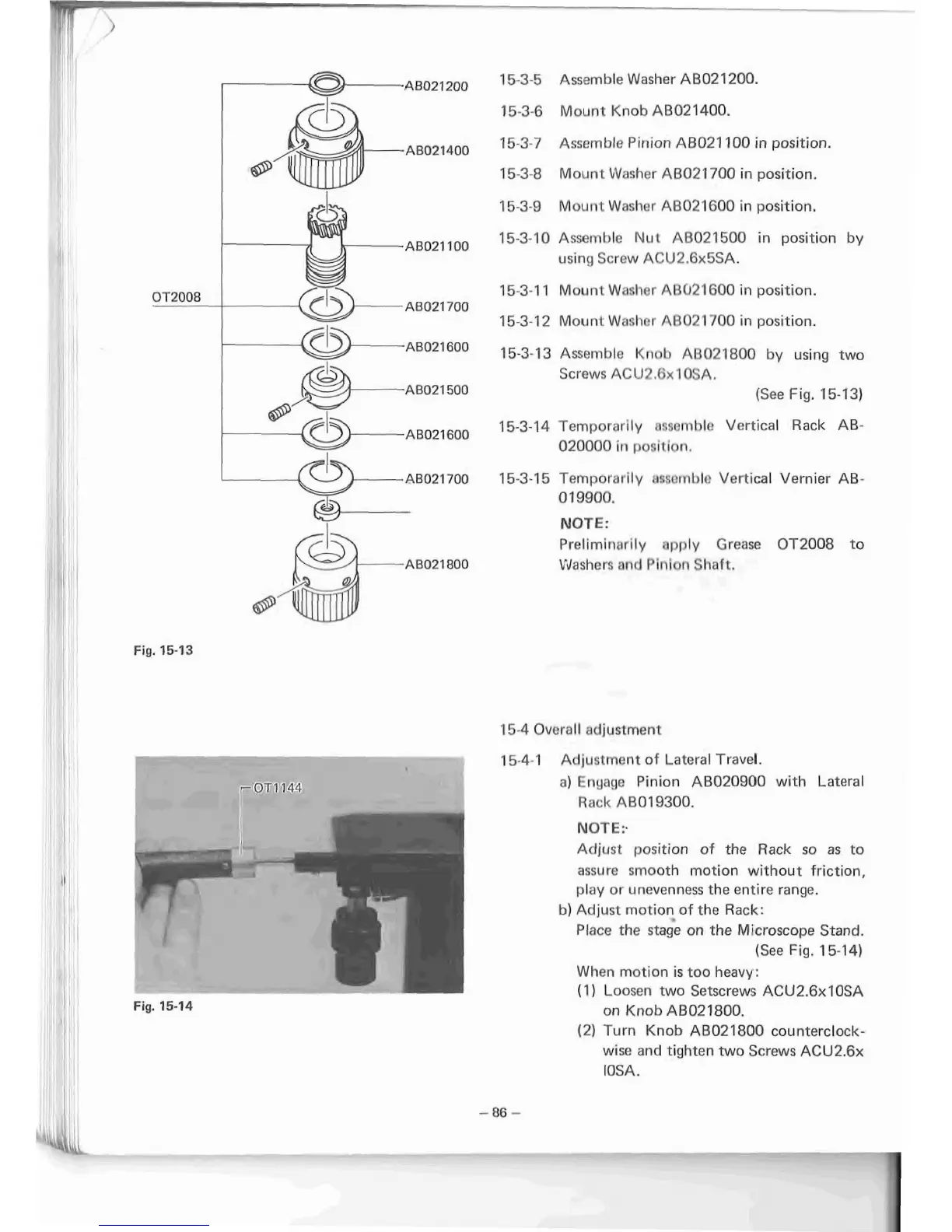

1 5-3-5 Assemble Washer AB021200.
15-3-6 Mount Knob AB021400.
AB021400
15-3-7
Assemble Pinion AB023 100 in position.
15-3-8 Mount Washer A8021 700 in position.
15-3-9 Mount Washer AB021600 in position.
AB021'100
15-3-10 Assemble Nut A6021500 in position by
using Screw ACU2.6xSSA.
OT2008
15-3-1 1 Mount Washer AR023 600 in position.
AB021700
15-3-1 2 Mount Waslirtr AR021700 in position.
AB021600
15-3-13 Assemble Knnb Al3021800 by using two
Screws ACU?.Rxl OSA,
(See Fig. 15-13)
AB021800
15-3-14 Temporarily nnnmhlr! Vertical Rack AB-
020000 in position.
*
AB021700
15-3-15 Temporarily nssnmt)lc Vertical Vernier AB-
+
0 19900.
I NOTE:
Preliminarily apl~ly Grease OT2008 to
AB021800 Washers and Pirrion Shaft.
Fig. 95-13
15-4 Overall adjustment
--
15-4- 1
Adjustment of Lateral Travel.
-0T1144
a) Engage Pinion AB020900 with Lateral
- -
- -
Rack AB019300.
NOTE:.
Fig. 15-14
Adjust position of the Rack st, as to
assure smooth motion without friction,
play or unevenness the entire range.
b) Adjust motion of the Rack:
Place the stagk on the Microscope Stand.
(See Fig. 1 5-1 4)
When motion is too heavy:
(I 1 Loosen two Setscrews ACU2.6xlOSA
on Knob AB021800.
(2) Turn Knob AB021800 countercIock-
wise and tighten two Screws ACU2.6x
IOSA.
