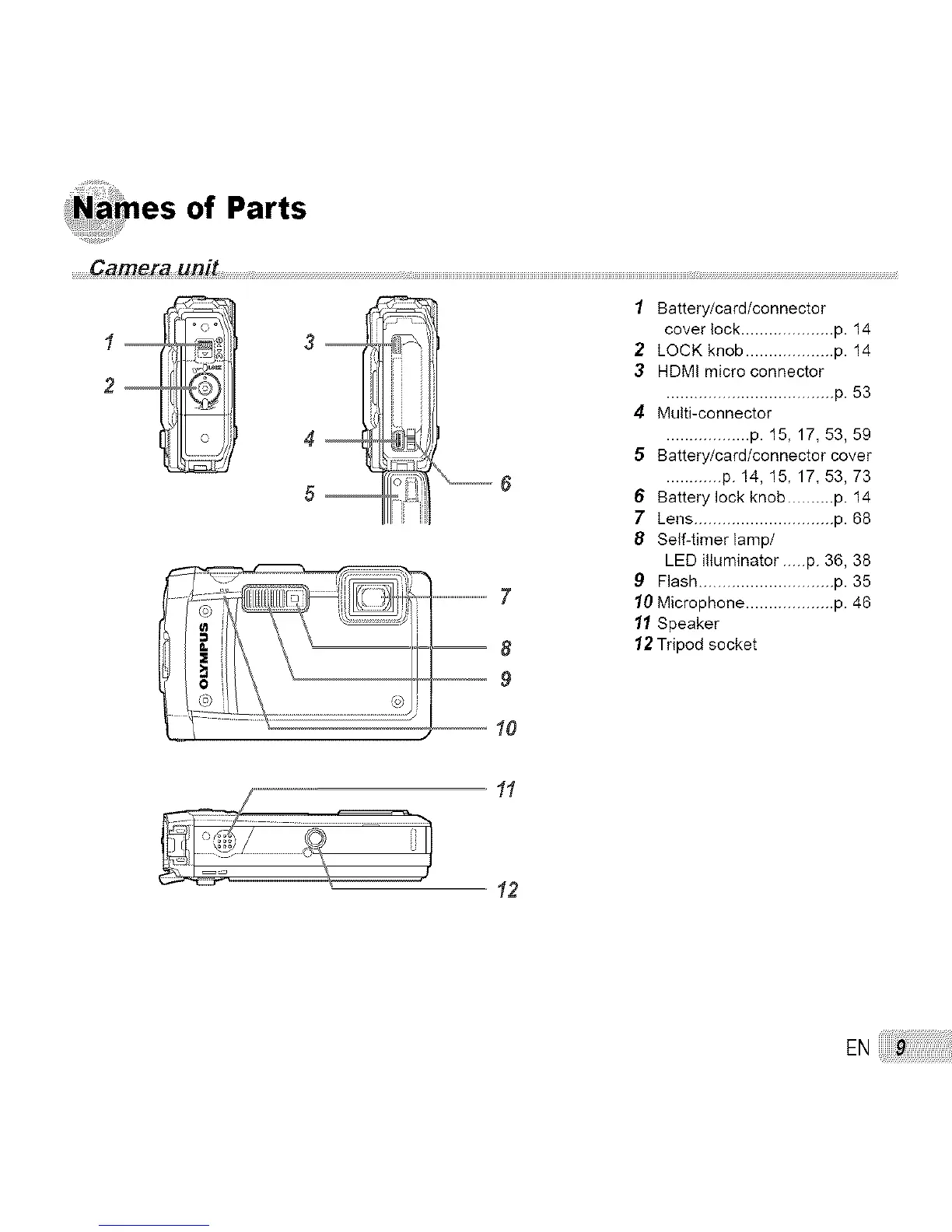

_es of Parts
Cameraunff ...........................................................................................................................................................................................................................................................................................................................................................
2
3 --
......................................7
8
9
10
1 Battery/card/connector
cover lock .................... p. 14
2 LOCK knob ................... p. 14
3 HDMI micro connector
.................................... p. 53
4 Multi-connector
.................. p. 15, 17, 53, 59
5 Battery/card/connector cover
............ p. 14, 15, 17, 53, 73
6 Battery lock knob .......... p. 14
7 Lens .............................. p. 68
8 Self-timer lamp/
LED illuminator .....p. 36, 38
9 Flash ............................. p. 35
10 Microphone ................... p. 46
11 Speaker
12 Tripod socket
11
12
EN
