10-019116-01EN, Rev. 2, January 2021
Chapter 336

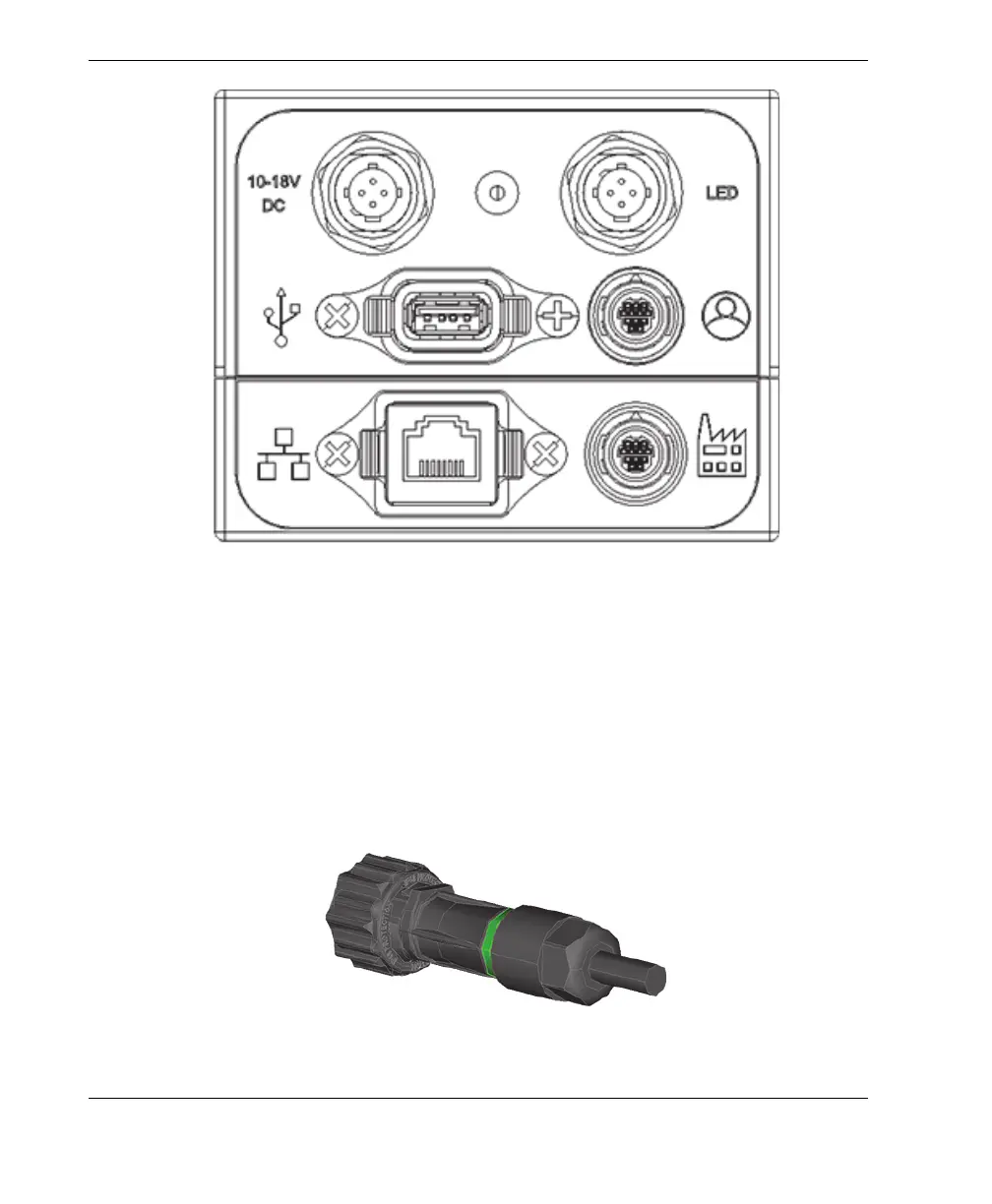

Figure 3-1 I/O panel connectors
3.1.1 Power Connectors and Cables
The power connectors enable you to connect DC power to the Vanta iX.
The DC power connector (10-18V DC) accepts a DC power cable to supply power to
the instrument see Figure 3-2 on page 36. The DC power cable comes with a barrel
connector on one end to connect to the instrument, and a barrel connector on the other
end to interface with the standard 18V AC adapter (supplied).
Figure 3-2 DC power cable
