10-019116-01EN, Rev. 2, January 2021
Chapter 338

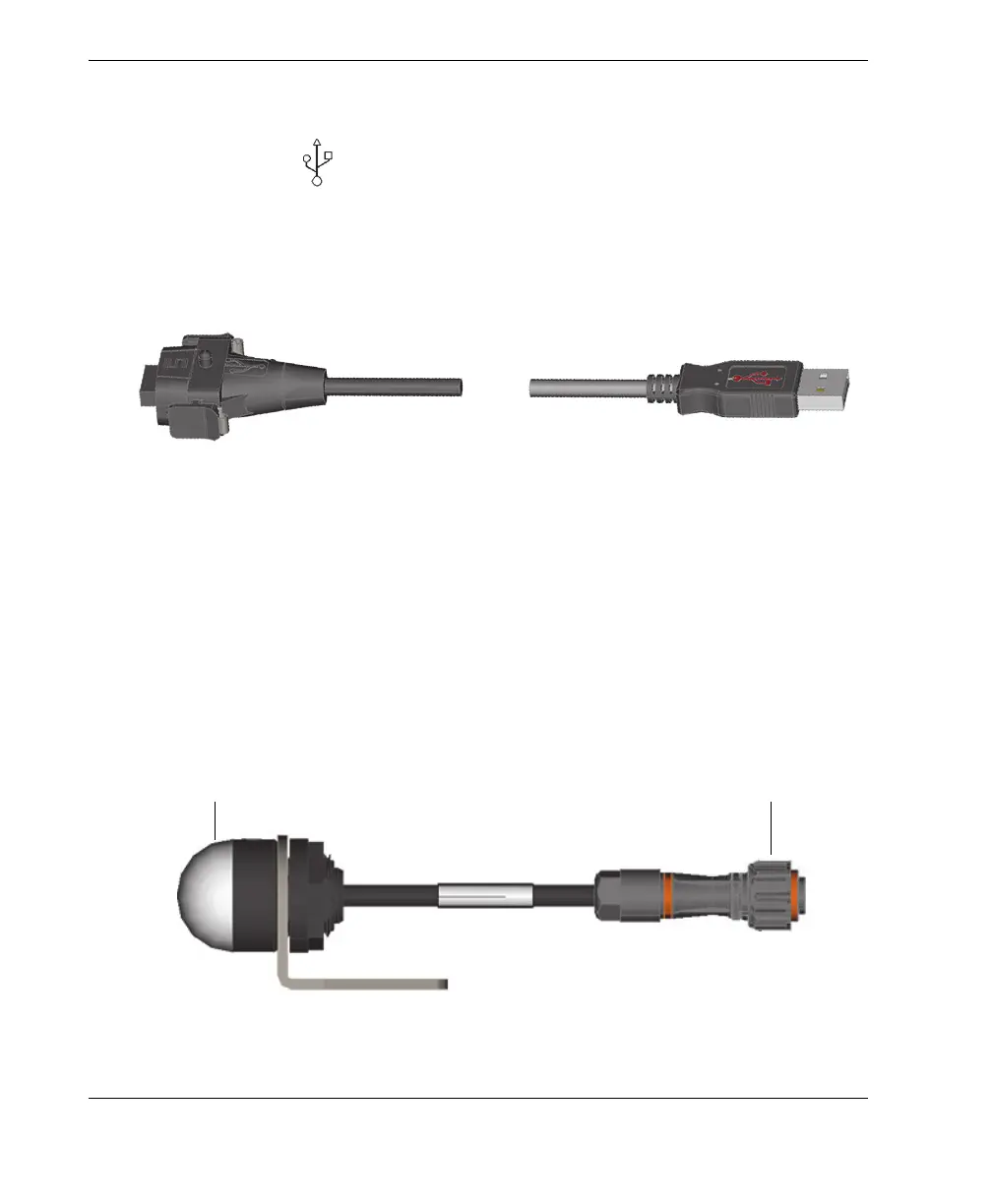

3.1.2 USB Connector and Data Cable
The USB connector ( ) enables you to connect a USB cable. Vanta iX XRF analyzers
come standard with one USB A cable
(Figure 3-4 on page 38). This cable provides the
ability to connect to USB peripheral devices.
The USB cable comes with a USB A connector on one end to connect to the Vanta iX
I/O panel, and a USB A connector on the other end.
Figure 3-4 USB data cable
3.1.3 LED Connector and Cable Assembly
The LED connector enables you to use the radiation LED cable assembly to indicate
when the X-ray tube is energized or radiation is being emitted.
The Vanta iX comes standard with one LED cable assembly (Figure 3-5 on page 38).
The assembly comes with a connector on one end to connect to the Vanta iX I/O panel.
The other end includes an LED to indicate when the X-ray tube is energized and
radiation is being emitted.
Figure 3-5 Radiation LED assembly
