Olympus Vanta iX Series User Manual

10-019116-01EN, Rev. 2, January 2021
Chapter 452
3. Pull out the rear of the latch to release the tension on the faceplate (Figure 4-2 on
page 52).

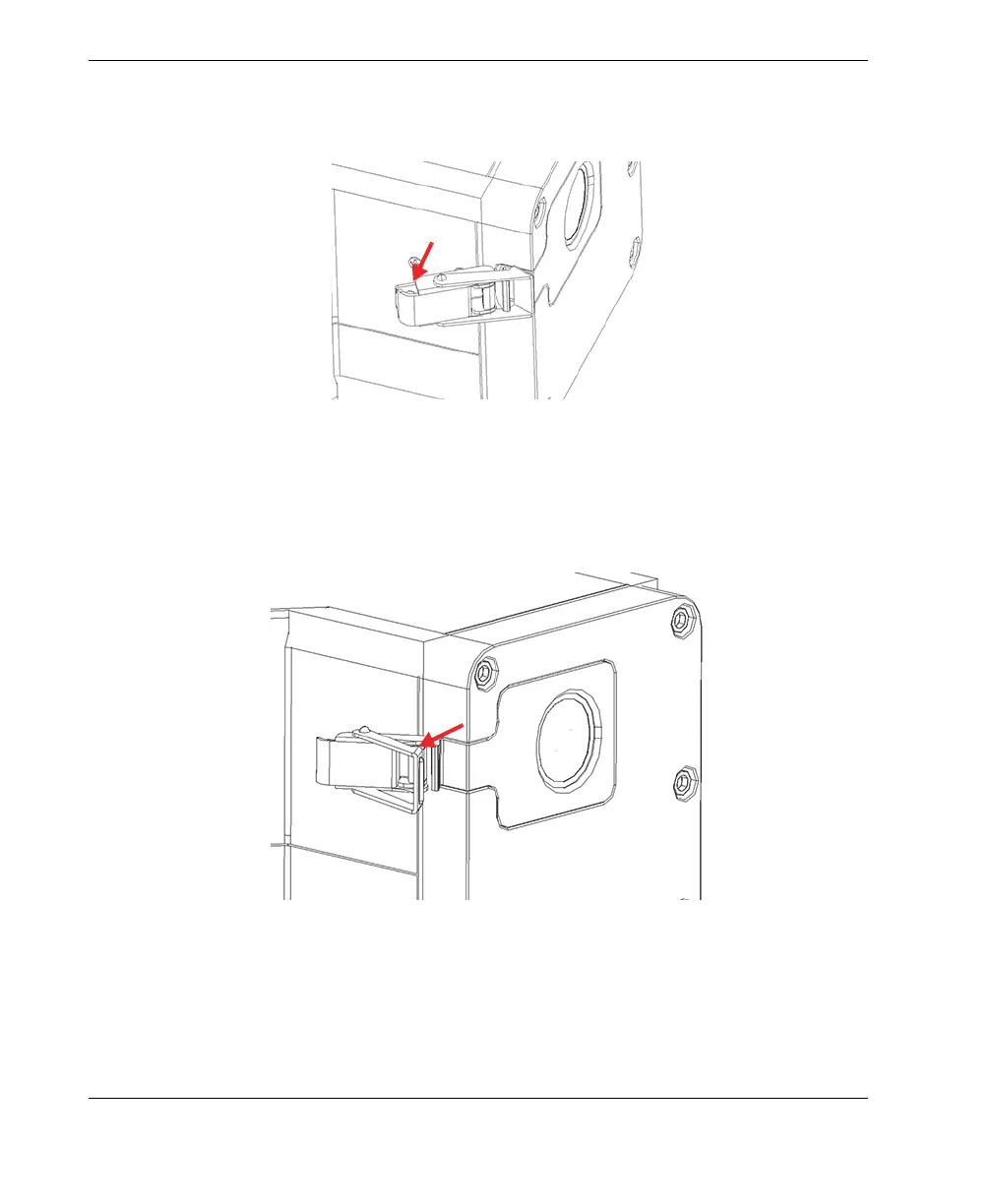

Figure 4-2 Latch pulled out
4. Pull out the front of the latch to fully open the faceplate latch (Figure 4-3 on
page 52).
Figure 4-3 Faceplate latch fully open
5. Pull the faceplate slightly to the left until the alignment tab is fully visible
(Figure 4-4 on page 53), then lift the faceplate away from the instrument.
