Olympus Vanta iX Series User Manual

10-019116-01EN, Rev. 2, January 2021
Maintenance and Troubleshooting 53

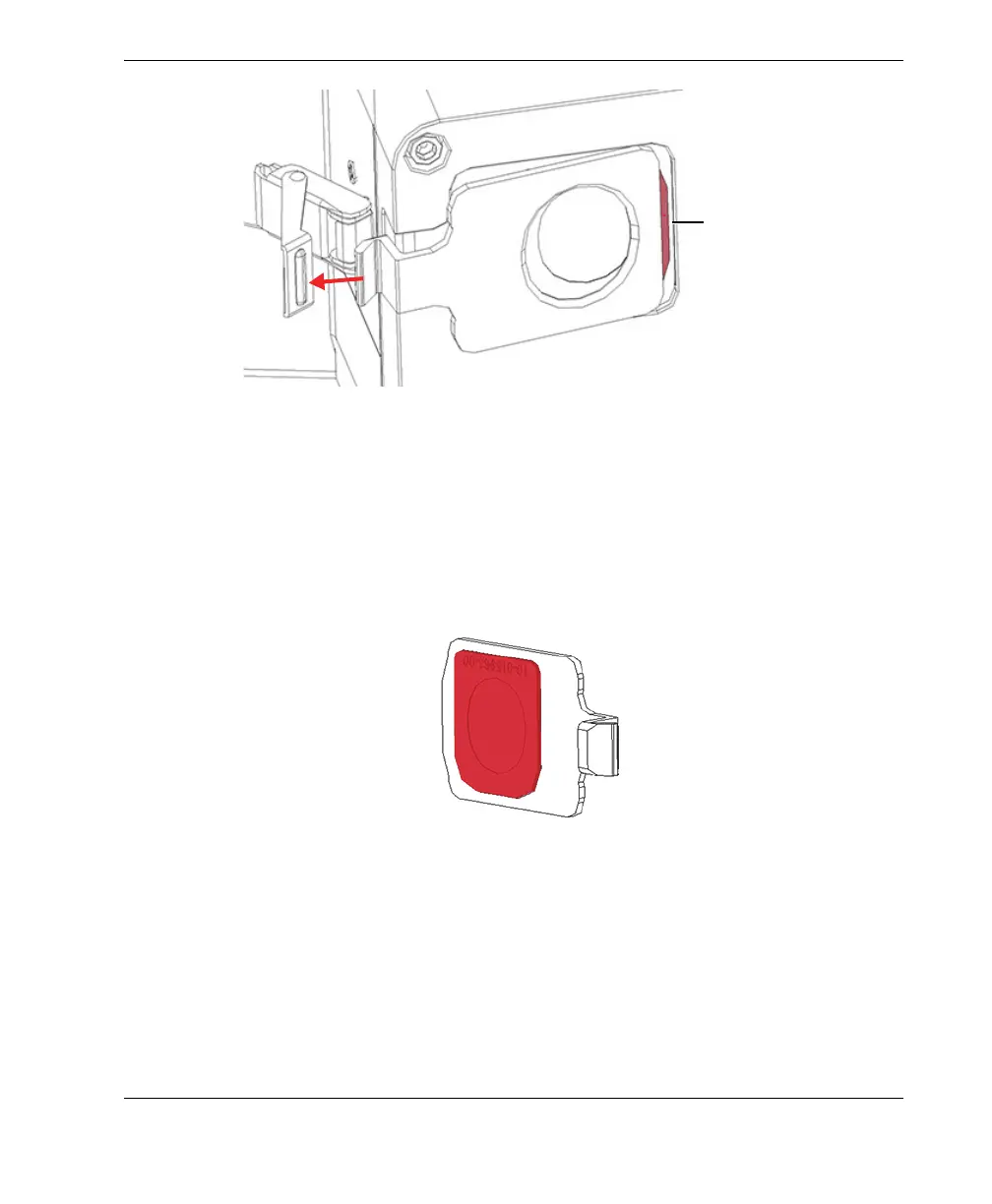

Figure 4-4 Faceplate alignment tab fully visible
4.1.3 Measurement Window Replacement
The measurement window is attached by an adhesive to the back of the faceplate
(Figure 4-5 on page 53). This procedure requires that you peel off the old window and
place the new window.
Figure 4-5 Measurement window on faceplate
To remove the window
 Peel a corner of the measurement window and pull it off the faceplate (Figure 4-6
on page 54).
Alignment tab
