Olympus Vanta iX Series - Figure 4-6 Peeling the Window (Left) and Pulling It off (Right); Figure 4-7 Peeling the Window from Its Backing

10-019116-01EN, Rev. 2, January 2021
Chapter 454

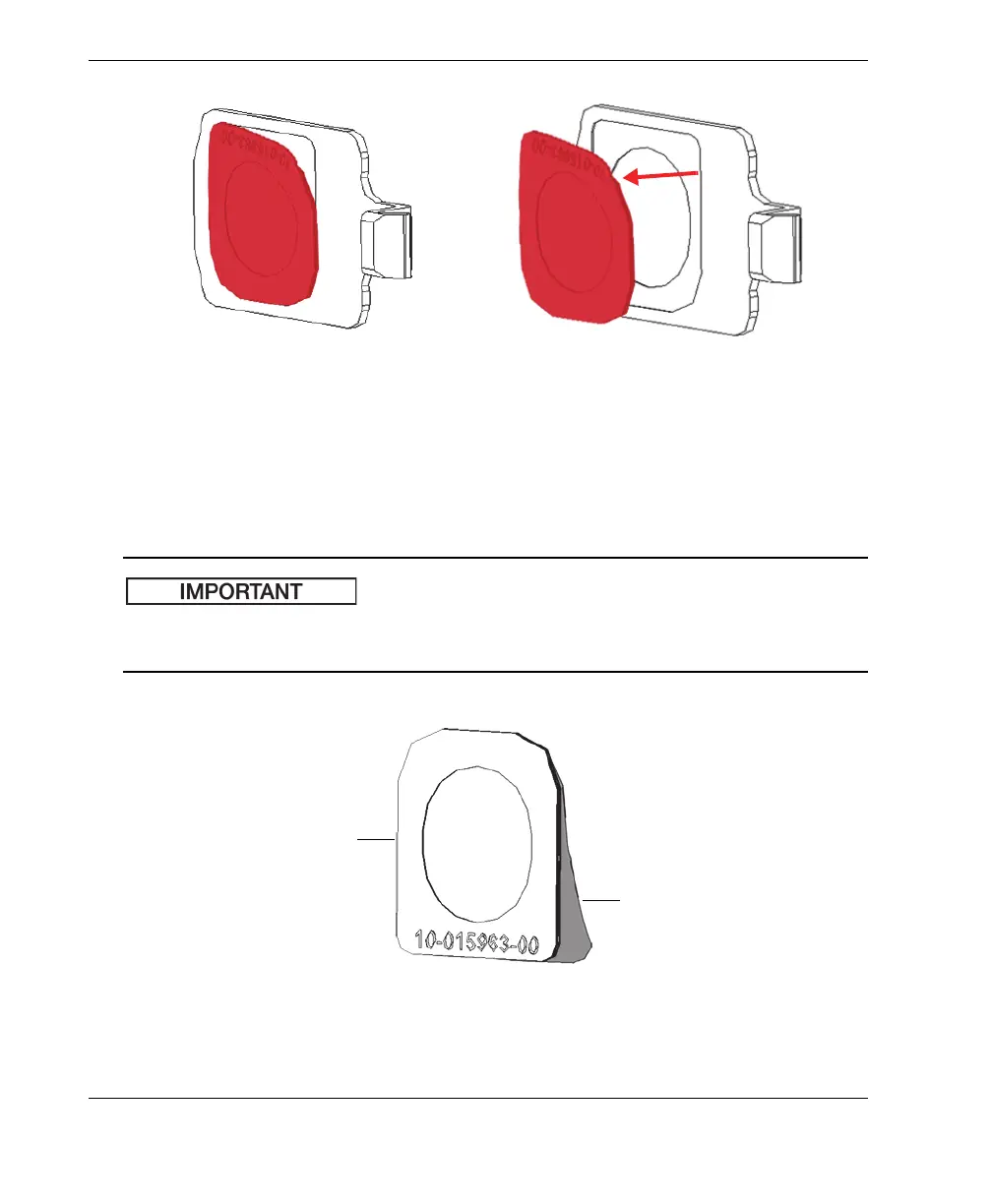

Figure 4-6 Peeling the window (left) and pulling it off (right)
To replace the window
1. Remove the window from its packaging and peel the backing material completely
off the window (Figure 4-7 on page 54).
The back of the measurement window is coated with a sticky adhesive. Do not touch
the back of the window after removing the backing material.
Figure 4-7 Peeling the window from its backing
IMPORTANT
Window
Backing
