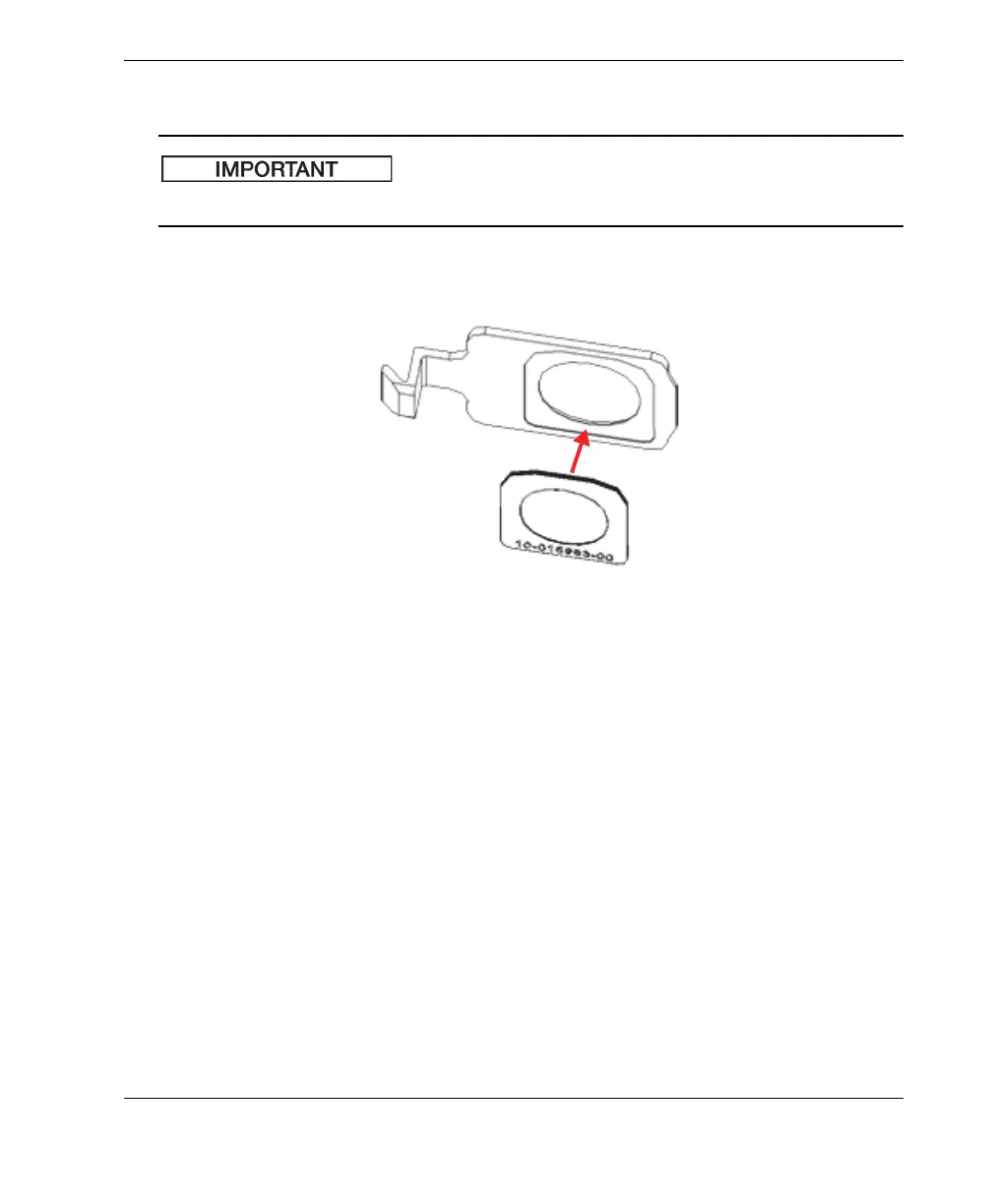

Maintenance and Troubleshooting
55
2.
Align and carefully
press the window on
to the faceplate (Figure
4-8 on page
55).
Handle the window by the edges to prev
en
t contamination of the measurement area.
Figure
4-8 New window ali
gned with faceplate
IMPORTANT
