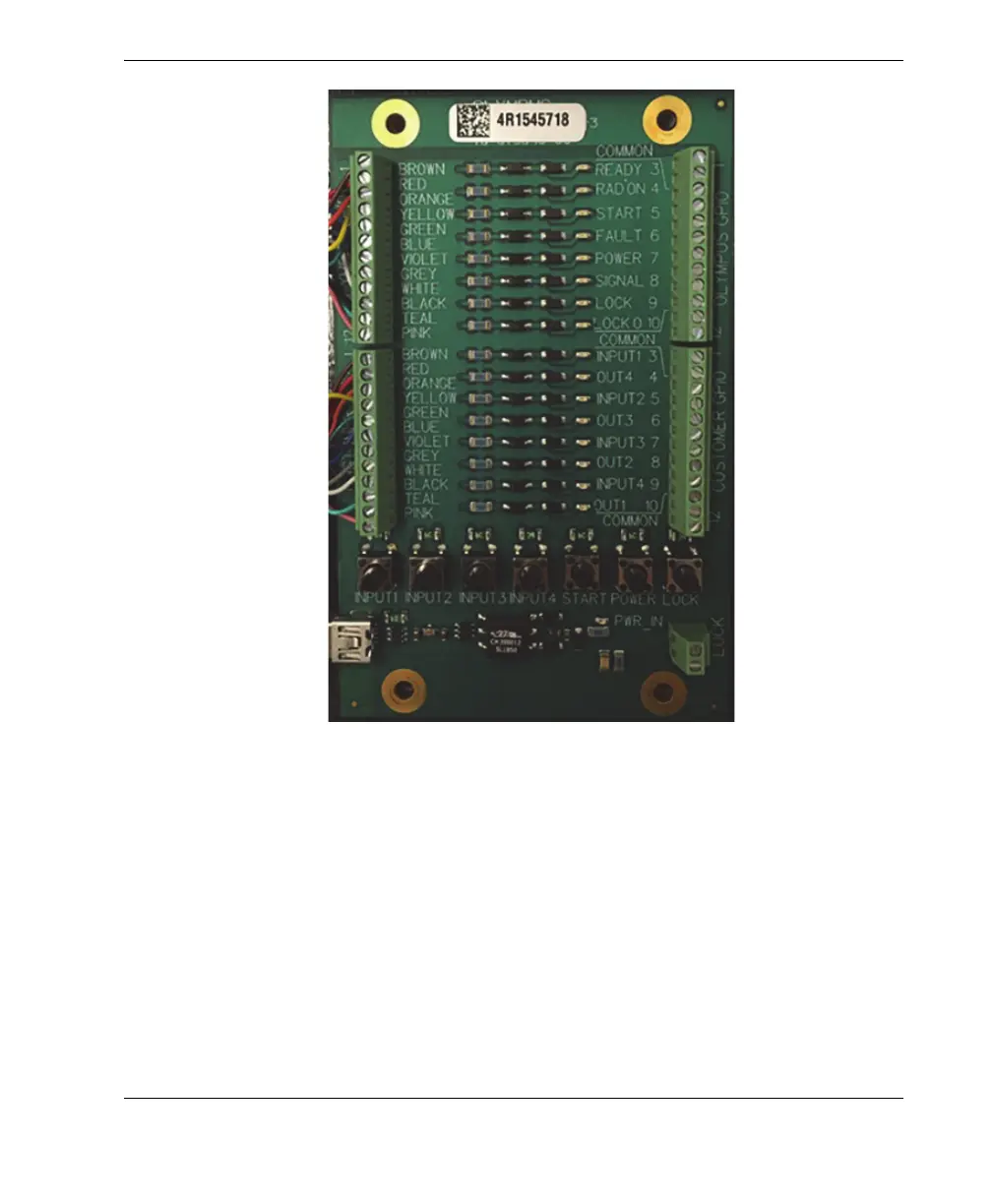

Figure 3-8 GPIO board
The connectors on the top half of the breakout board are intended for the standard
Olympus I/O. The connectors on the bottom half of the breakout board are intended
for customer configured I/O. The left side is intended for connection to the Vanta iX.
The right side is intended for connection to the PLC or other type of control system.
For more information contact Olympus After-Sales Service.
3.2 Power Button
The power button manually turns on and off power to the Vanta iX.
