123
Advanced Functions
You can shape very steep slopes by entering two delta levels at the same
frequency. To select either the rising or falling edge, adjust the sequence of the
delta levels:
1. Click in the respective frequency cell.
2. Right-click in the selected frequency cell, and then click Set as First or
Set as Second.

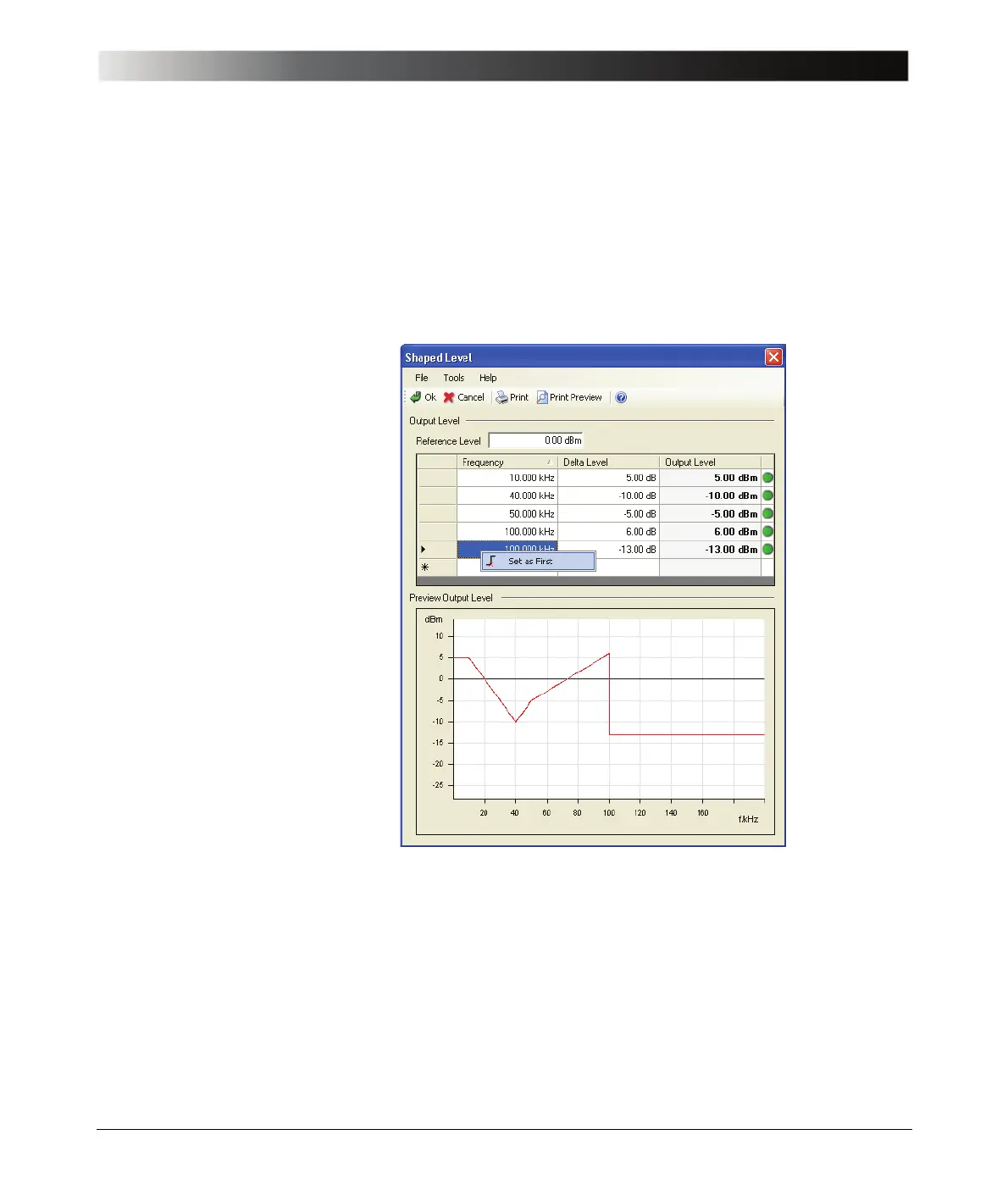

Figure 9-23:
Original characteristic
The figure shows the output level frequency characteristic before clicking
Set as First.
