Omicron Bode 100 - Page 122

Bode 100 User Manual
122
You can shift the output level frequency characteristic up or down by changing
the reference level in the Reference Level box.

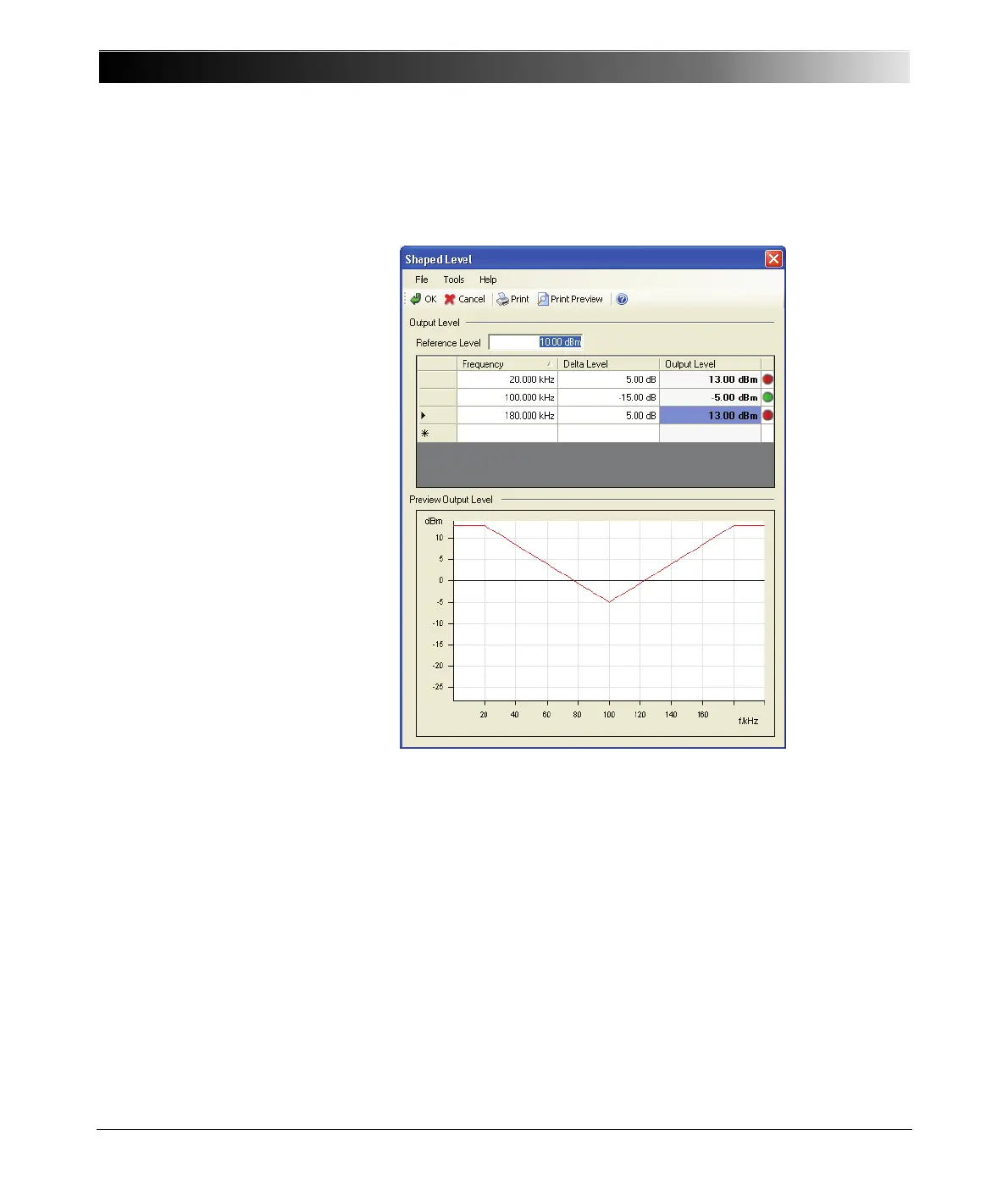

Figure 9-22:
Change reference level
Hint: Based on the entered delta level the calculated output levels at 20 kHz and
180 kHz are outside the level range of the Bode 100. Therefore the values are
limited to the maximum possible output level and the red indicators are
activated.
