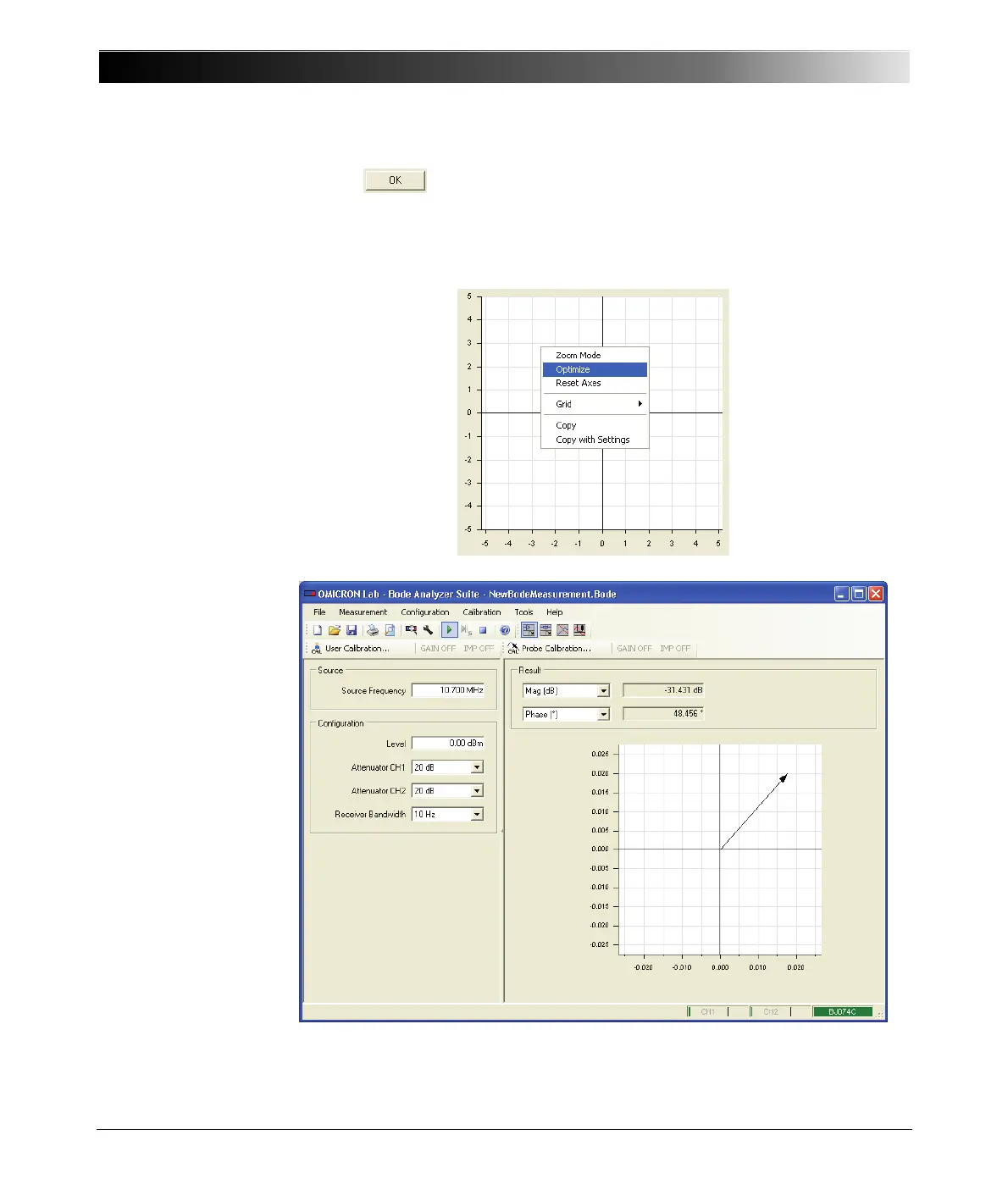

7. Click to close the Configuration window and to get back to the
Gain/Phase mode window.
8. For a better view of the Gain/Phase vector in the complex plane, right-click
in the diagram, and then click Optimize.
Result: The IF filter has a magnitude of –31.43 dB at 10.7 MHz. Your result may
differ because each IF filter is slightly different.
