Gain/Phase Mode
5. Click the Connection Setup tab.

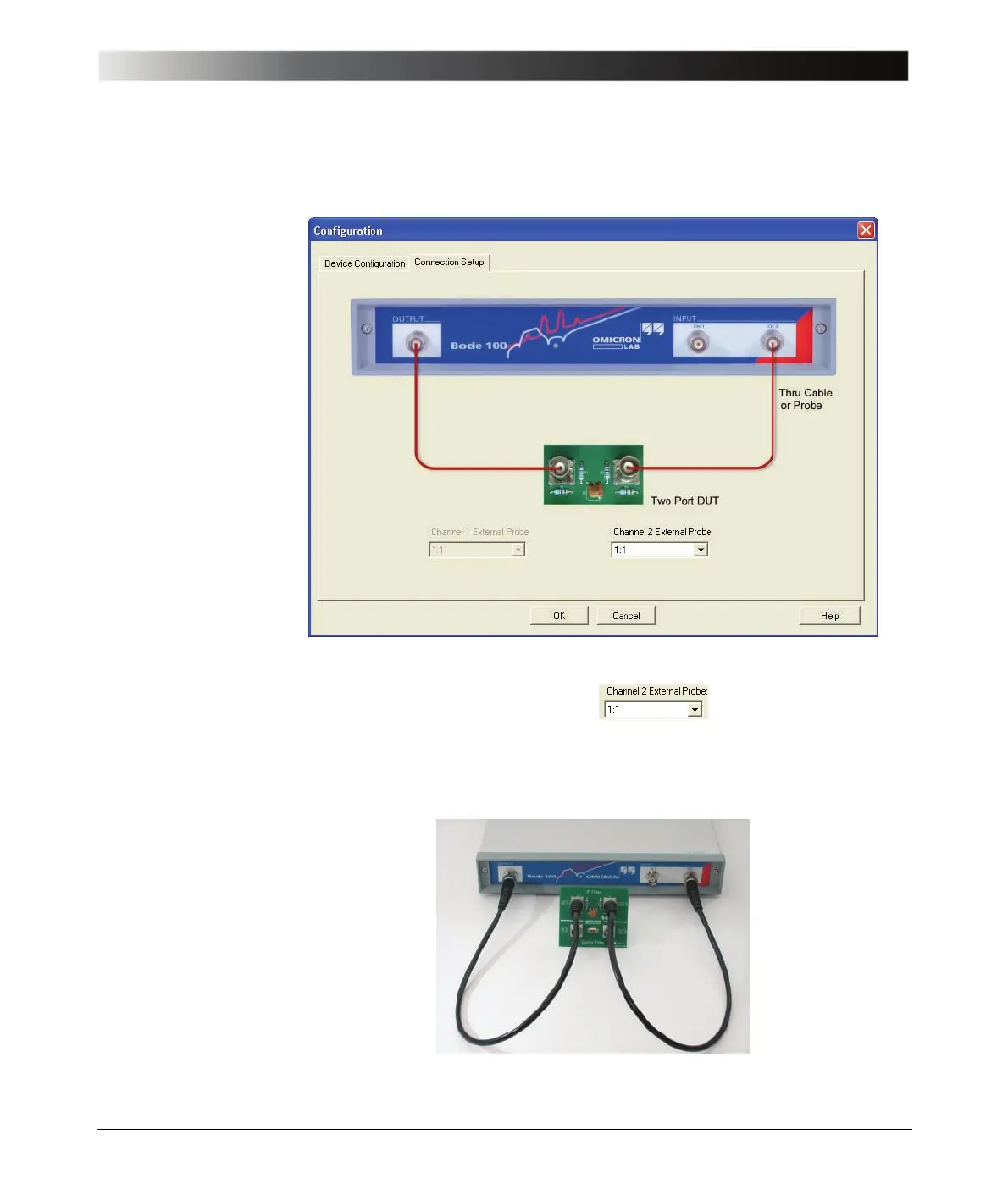

The connection diagram shows how to connect the DUT to the Bode 100.
Hint: Set the voltage ratio in the box if you use a probe
instead of cable connection (see 9.2 "Advanced Sweep Options" on
page 116).
6. Connect the IF filter to the Bode 100 as shown.
