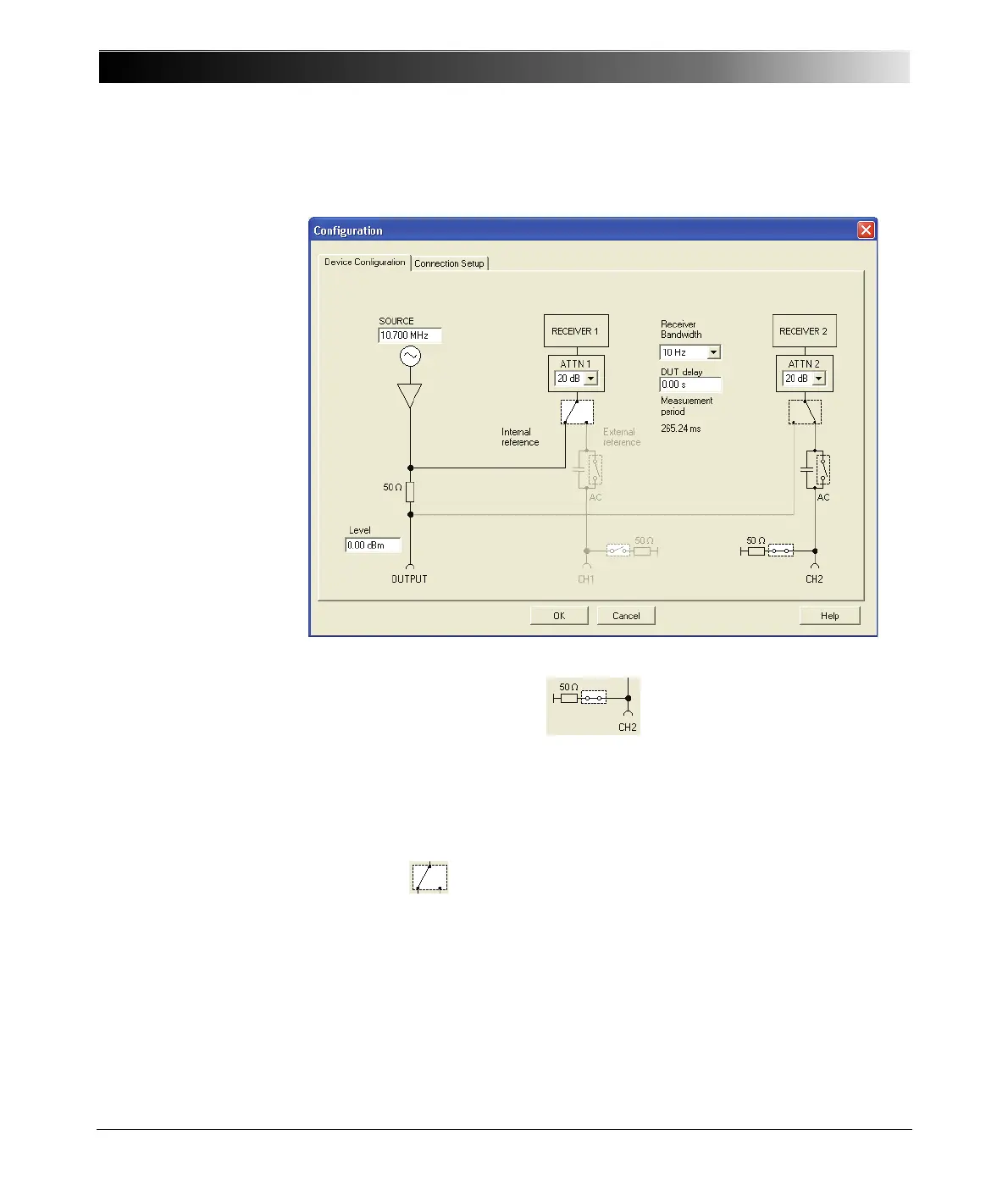

4. In the Configuration window, set:
•CH2: 50Ω ON (click the switch as shown)
• SOURCE: 10.7 MHz
• Receiver bandwidth: 10 Hz
• ATTN 1 (channel 1 input attenuator): 20 dB
• ATTN 2 (channel 2 input attenuator): 20 dB
• The switch (before ATTN1) to the internal source as reference
• Level: 0 dBm
Hint: Setting the receiver bandwidth to 10 Hz makes the readout more stable
but also makes the measurement slower.
