Bode 100 User Manual
30
4. Click .
5. Reconnect the IF filter.
Hint: If you change settings you must repeat the User Calibration. If you use
the Probe Calibration instead you can change settings without
repeating the calibration. For more information, see 7 "Calibrating the Bode 100"
on page 75.

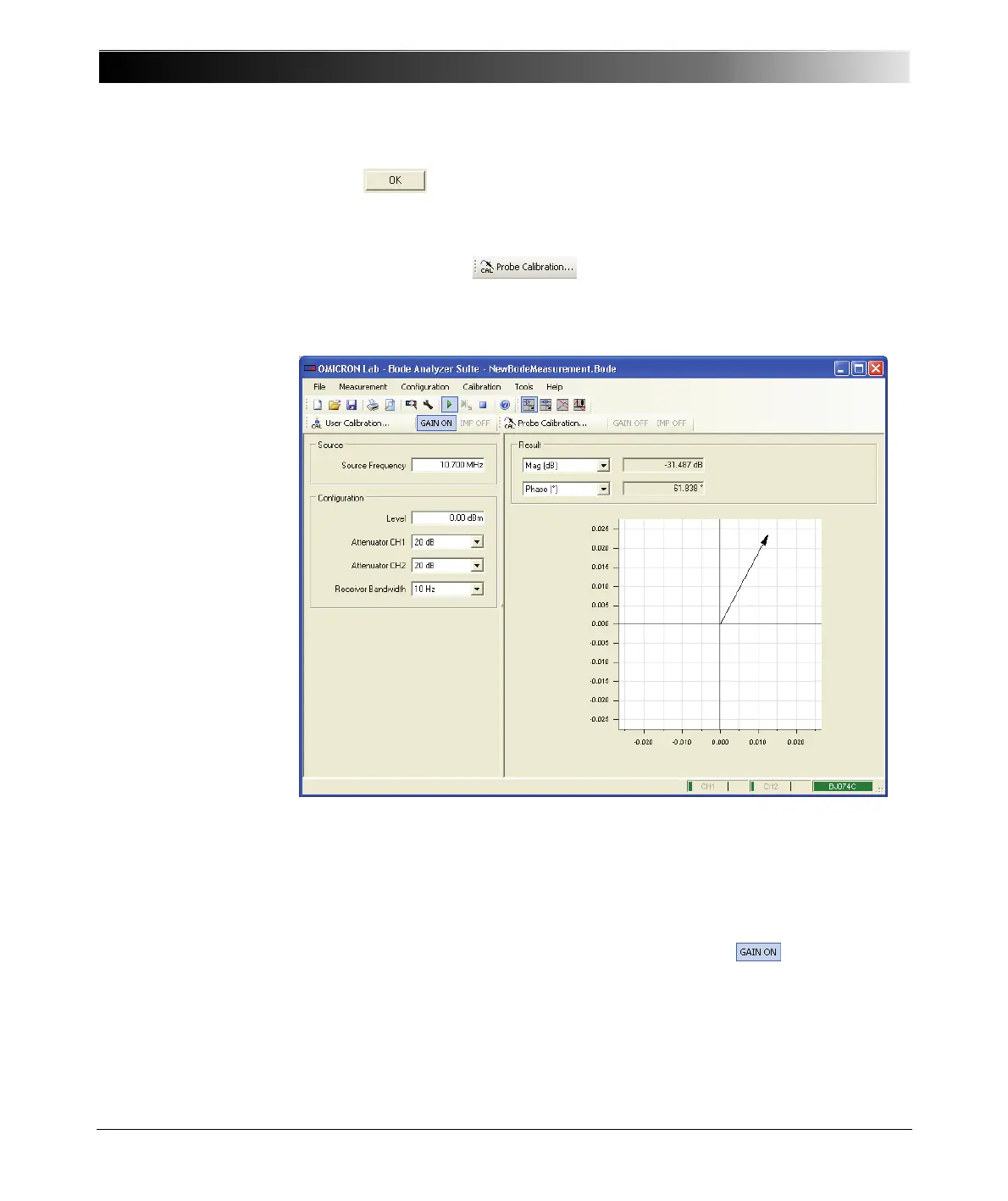

Result: The transfer function of the IF filter has a magnitude of –31.49 dB and
a phase shift of 61.8º at 10.7 MHz.
Again, your results may differ because every IF filter and measurement setup is
slightly different.
Hint: You can toggle between the measurement results with calibration and
without calibration by clicking the GAIN ON toolbar button .
