Impedance/Reflection Mode

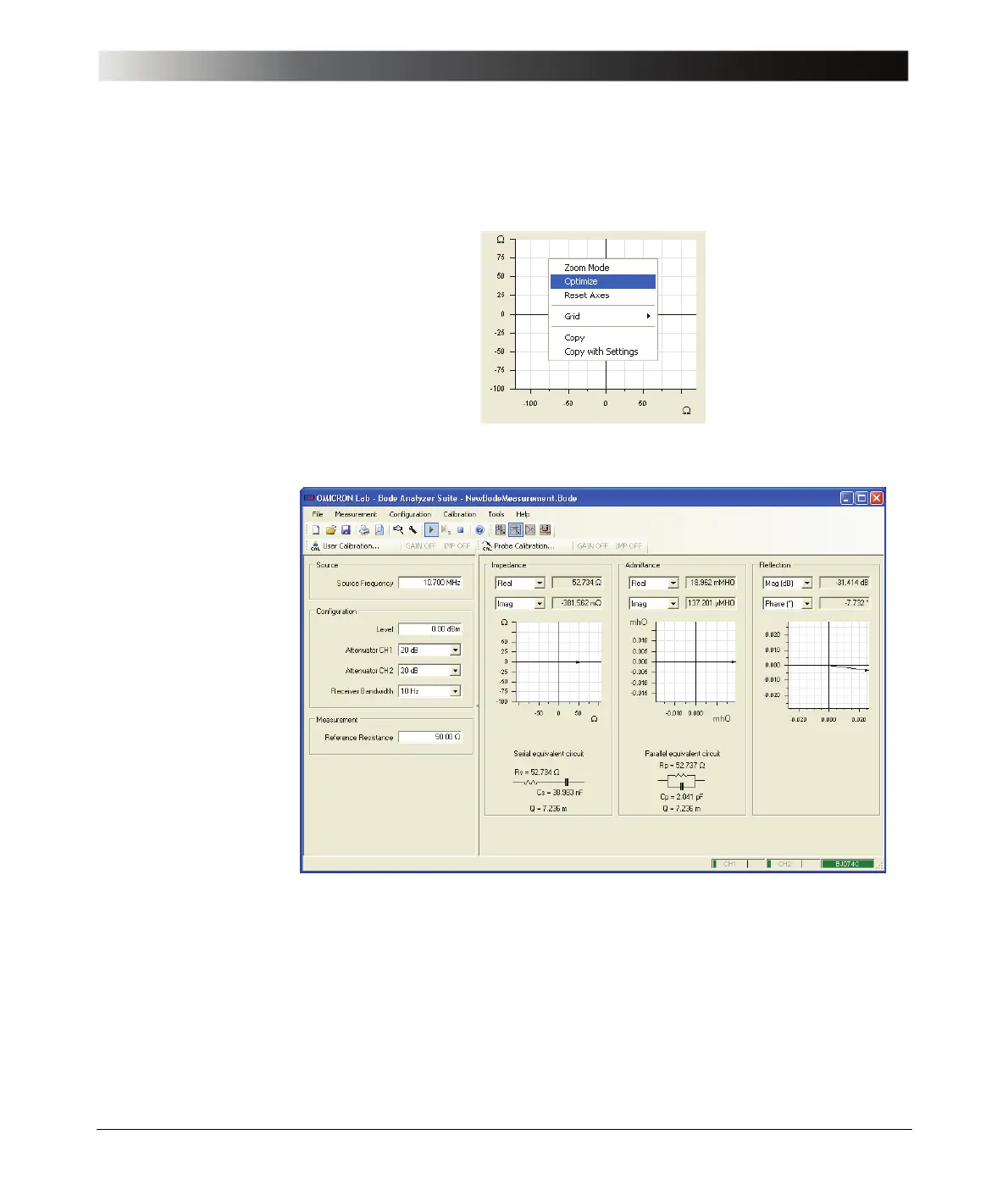

9. For a better view of the impedance, admittance and reflection vectors in the
complex plane, right-click in the respective diagrams, and then click Optimize.
10.View the results.
Result: The measured values of the IF filter at 10.7 MHz are:
• Reflection coefficient: –31.4 dB
• Impedance: nearly 50 Ω
Again, your results may differ because every IF filter and measurement setup is
slightly different.
Hint: To increase the size of the diagrams, make the window larger or hide the left
pane by clicking the split bar. To restore the left pane, click the split bar again.
