Bode 100 User Manual
50

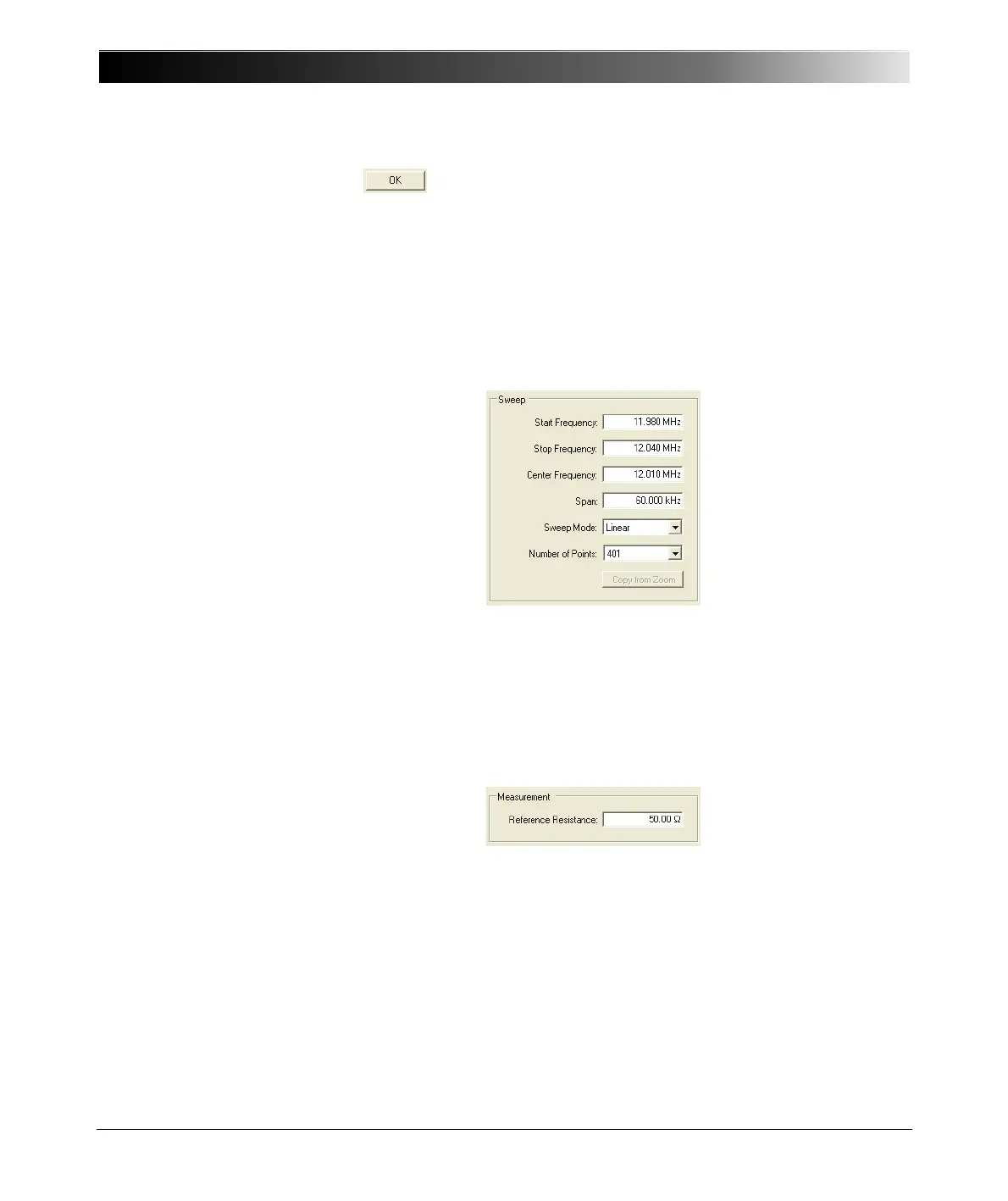

7. Click to close the Configuration window and to get back to the
Frequency Sweep mode window.
8. Set the sweep frequencies:
• Start frequency: 11.98 MHz
• Stop frequency: 12.04 MHz
• Number of points: 401
The other settings will be automatically calculated and the Sweep area of the
Frequency Sweep mode window should now look like below.
Hint: A setting which results in an out-of-range frequency for any other
parameter will be corrected to ensure that all sweep frequencies (start, stop,
center) are within the range of 10 Hz…40 MHz or 1 Hz…40 MHz if you
selected the extended measurement range (see 8.2 "Setting the
Measurement Range" on page 98).
9. Set the reference resistance.
Default: 50 Ω
The reference resistance is used to calculate the reflection coefficient and
the VSWR.
