Frequency Sweep Mode
5. Click the Connection Setup tab.

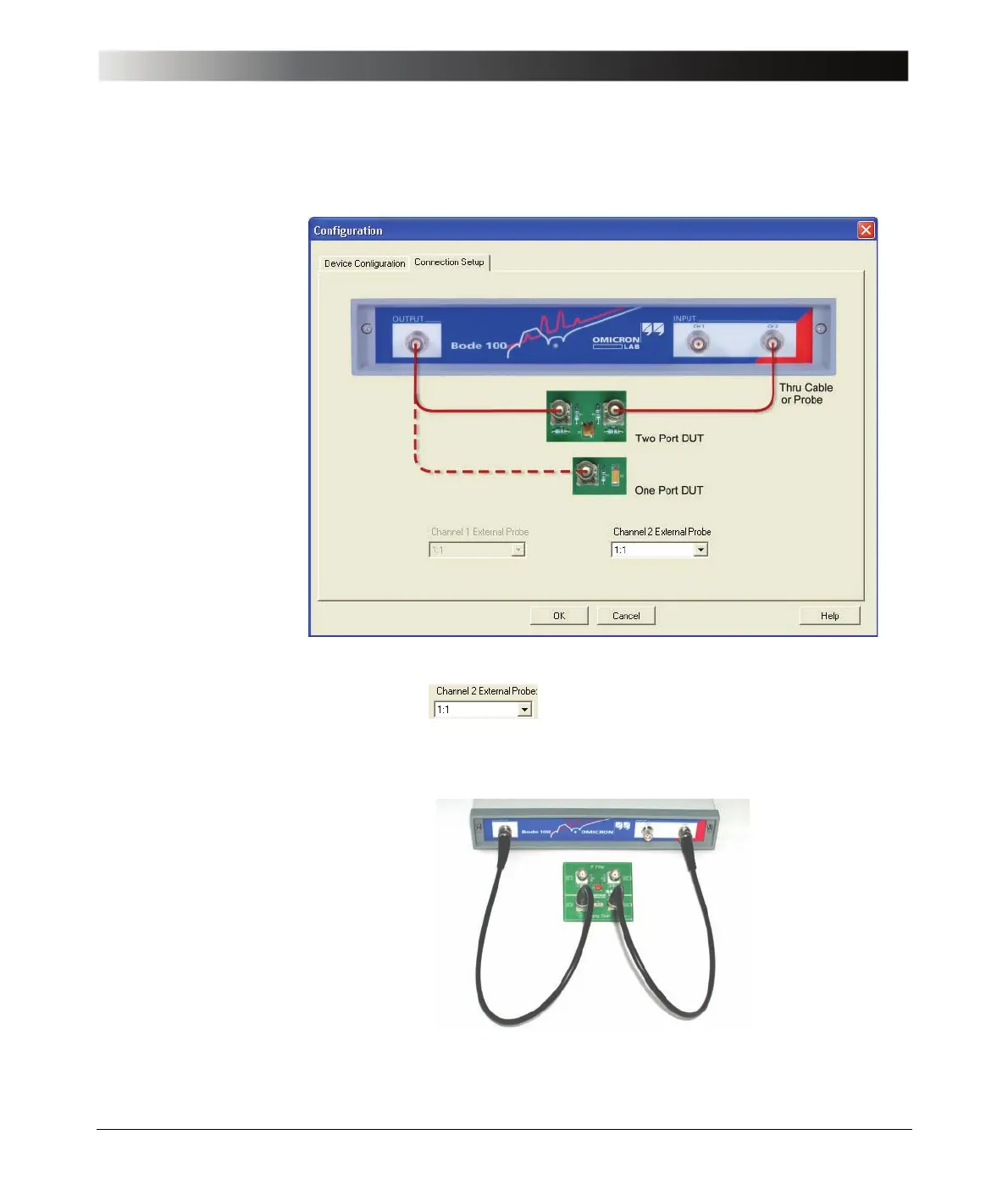

The connection diagram shows how to connect the DUT to the Bode 100.
Hint: Use the box to set the voltage ratio when you use a
probe instead of cable connection (see 9.4 "Using Probes" on page 125).
6. Connect the quartz filter to the Bode 100 as shown.
