Bode 100 User Manual
58

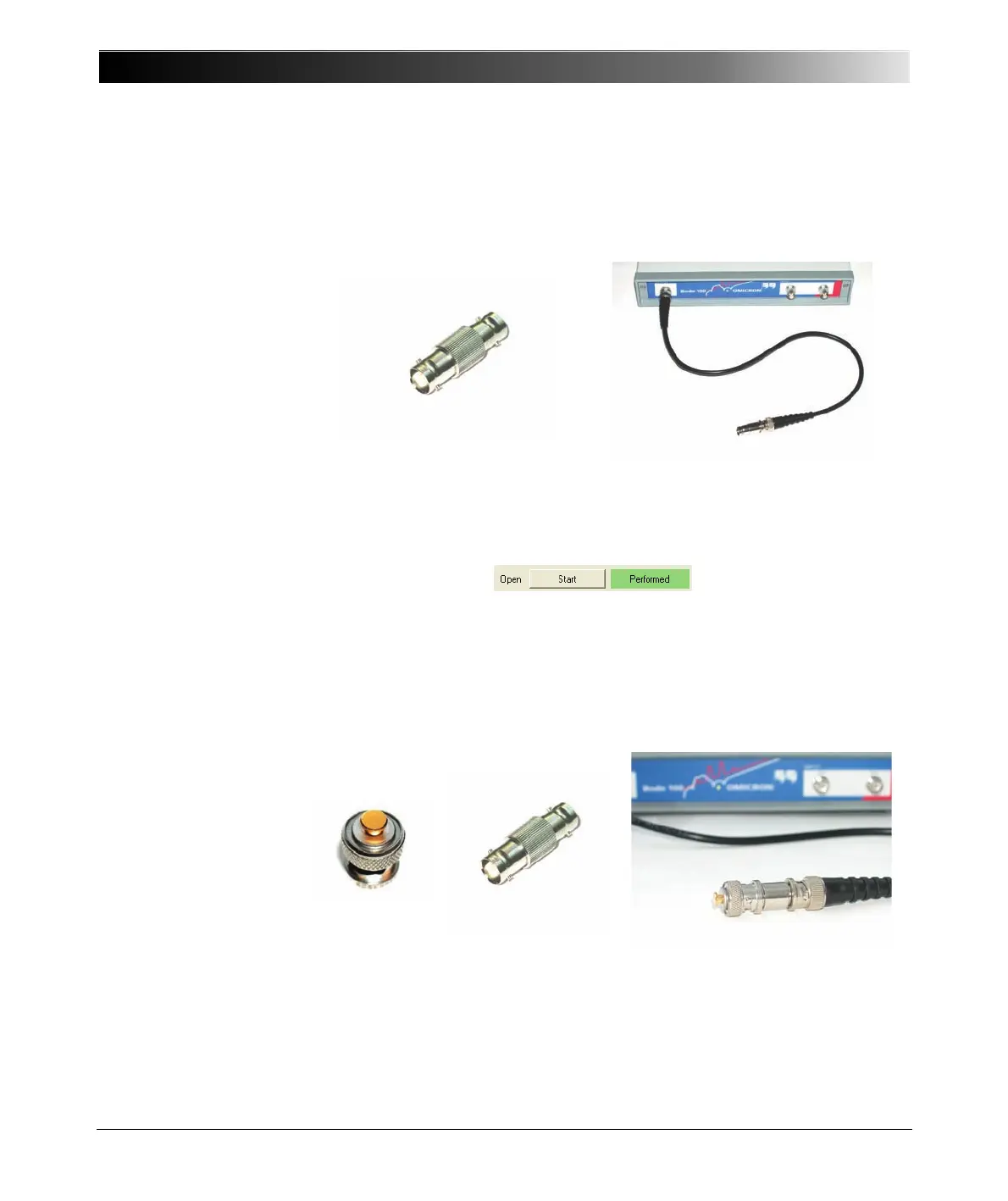

2. Connect the cable you want to use for the measurement to the OUTPUT
connector of the Bode 100. Plug the BNC straight adapter on the other end
of the cable.
3. Click the Start button next to Open in the Impedance area of the calibration
window. After the calibration has been finished, the field on the right displays
Performed on green background.
With the measurement settings the calibration may take about 35 seconds.
Hint: You can reduce the calibration time by setting fewer measurement
points, a wider receiver bandwidth, or by choosing the Probe Calibration.
4. Plug the BNC short circuit on the straight adapter connected to the cable.
