Frequency Sweep Mode

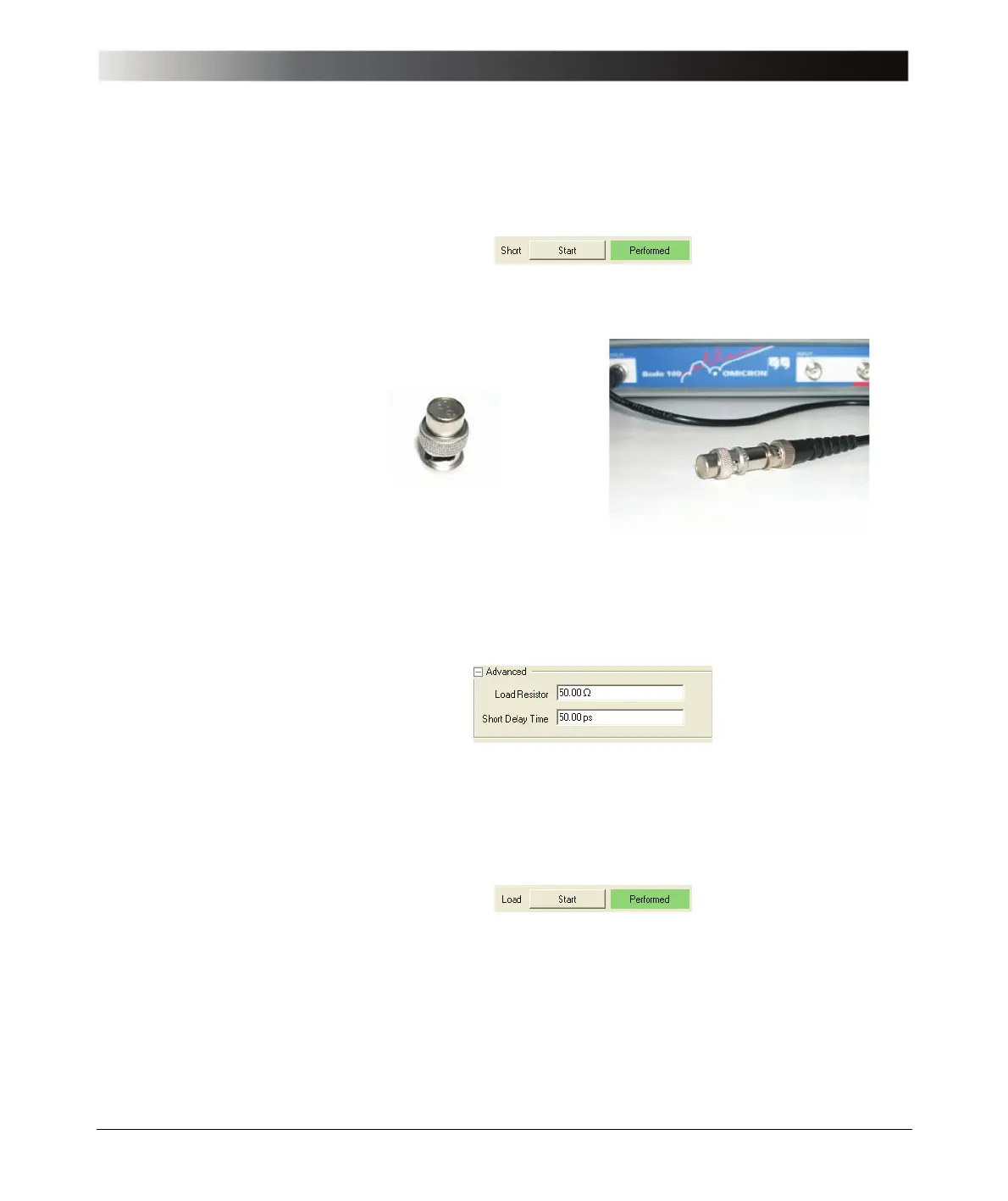

5. Click the Start button next to Short in the Impedance area of the calibration
window. After the calibration has been finished, the field on the right displays
Performed on green background.
6. Replace the BNC short circuit with the BNC 50 Ω load.
7. For very accurate measurements or if you use a load resistor different from
50 Ω, click the + symbol next to Advanced, and then enter the exact
resistance of the load resistor.
Hint: For more information on the advanced calibration settings, see
7.4 "Calibration in the Impedance/Reflection Mode" on page 83.
8. Click the Start button next to Load in the Impedance area of the calibration
window. After the calibration has been finished, the field on the right displays
Performed on green background.
