Bode 100 User Manual

How to:

• Eliminate the effect of the cable

• Connect the cable in the open, short and load condition

• Connect the DUT

Questions:

• What is the real part of the impedance in Ω?

• What is the reflection coefficient in dB?

To find out the answers, proceed as follows:

1. Click the Impedance/Reflection toolbar button to switch to the

Impedance/Reflection mode.

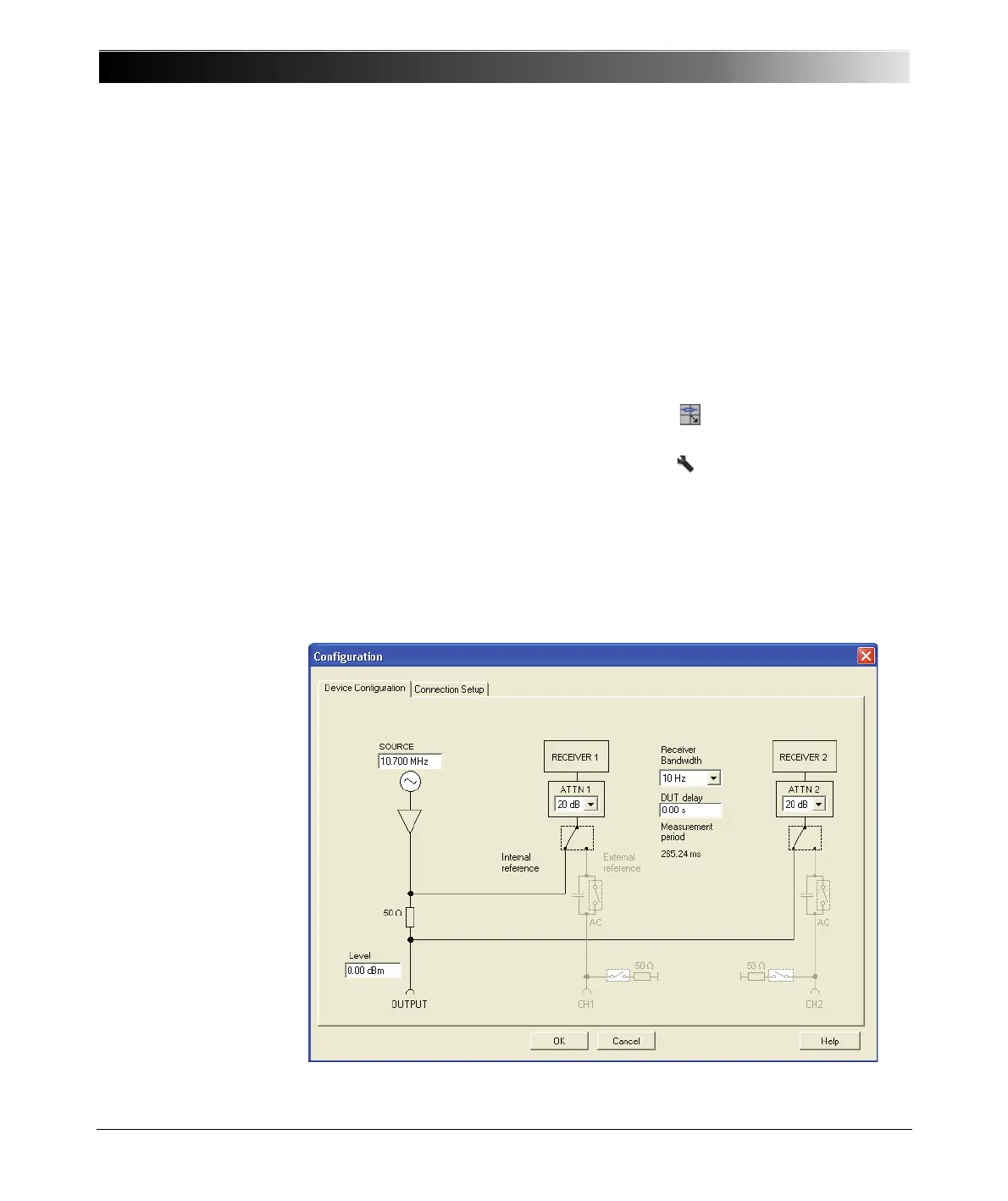

2. Click the Device Configuration toolbar button to open the

Configuration window.

3. Because we want to test the 10.7 MHz IF filter, set:

• SOURCE: 10.7 MHz

• Receiver bandwidth: 10 Hz

• Level: 0 dB
