Omicron Bode 100 User Manual

85

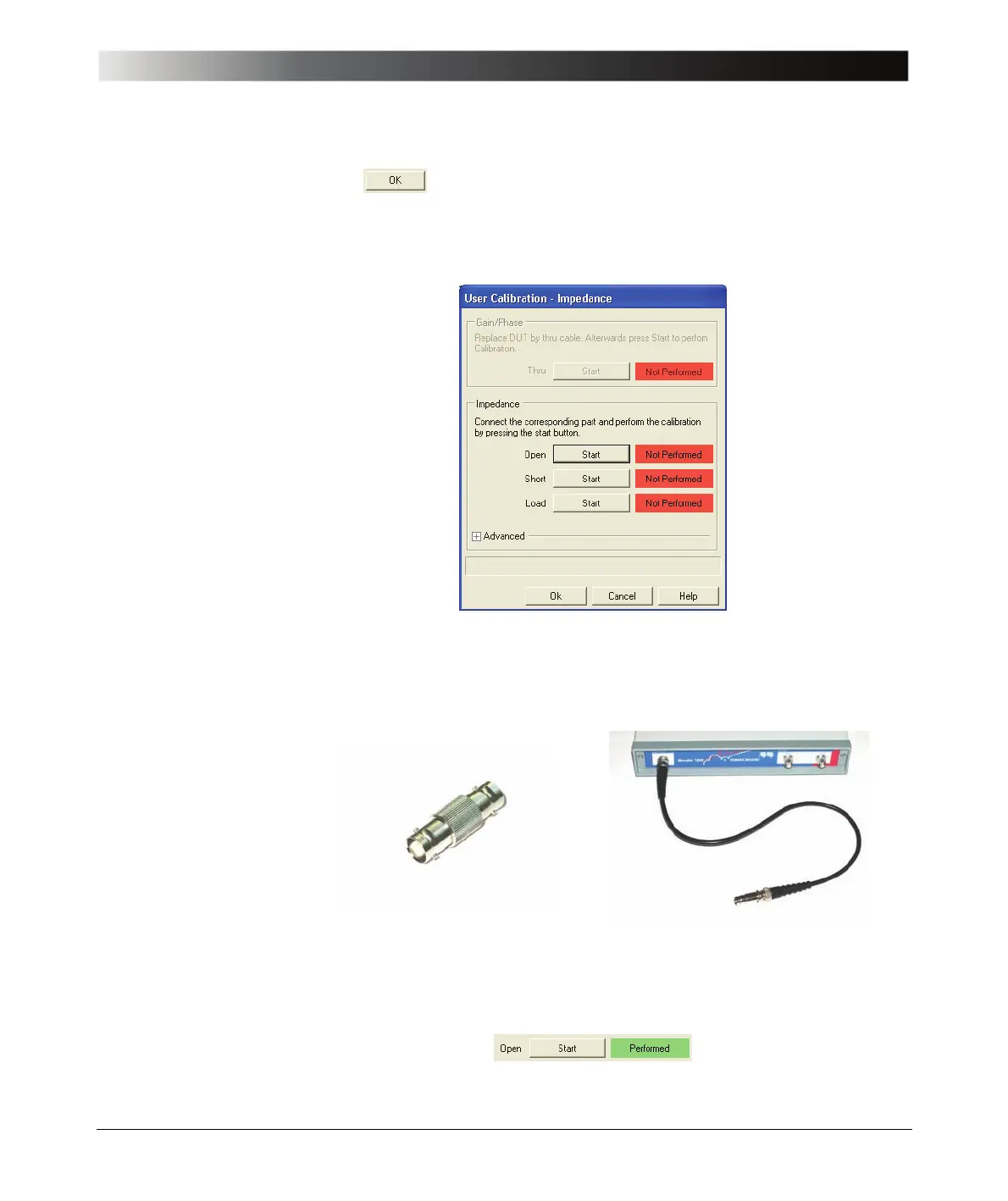

Calibrating the Bode 100
4. Click .
5. Choose either the Probe Calibration or the User Calibration and click the
respective toolbar button.
6. Connect the cable you want to use for the measurement to the OUTPUT
connector of the Bode 100. Plug the BNC straight adapter on the other end
of the cable to have the same reference plane for calibration.
7. Click the Start button next to Open in the Impedance area of the calibration
window. After the calibration has been finished, the field on the right displays
Performed on green background.
