Bode 100 User Manual
86

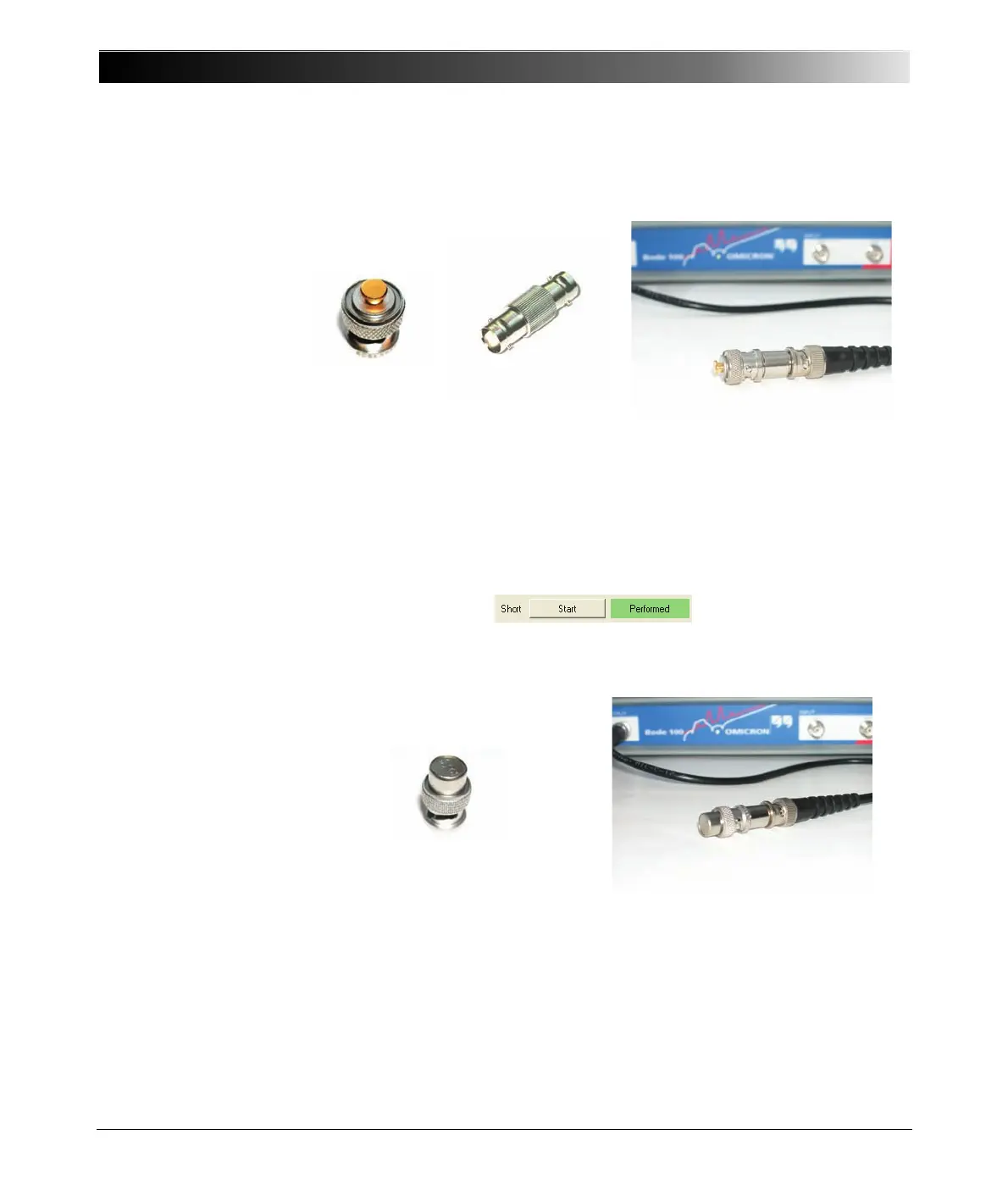

8. Plug the BNC short circuit on the straight adapter connected to the cable.
Hint: If you use a short circuit other than the one delivered with your
Bode 100 you can enter the short delay by clicking the + symbol next to
Advanced and typing the short delay time.
9. Click the Start button next to Short in the Impedance area of the calibration
window. After the calibration has been finished, the field on the right displays
Performed on green background.
10.Replace the BNC short circuit with the BNC 50 Ω load.
11.For very accurate measurements or if you use a load resistor different from
50 Ω, click the + symbol next to Advanced, and then enter the exact
resistance of the load resistor.
