Bode 100 User Manual
94

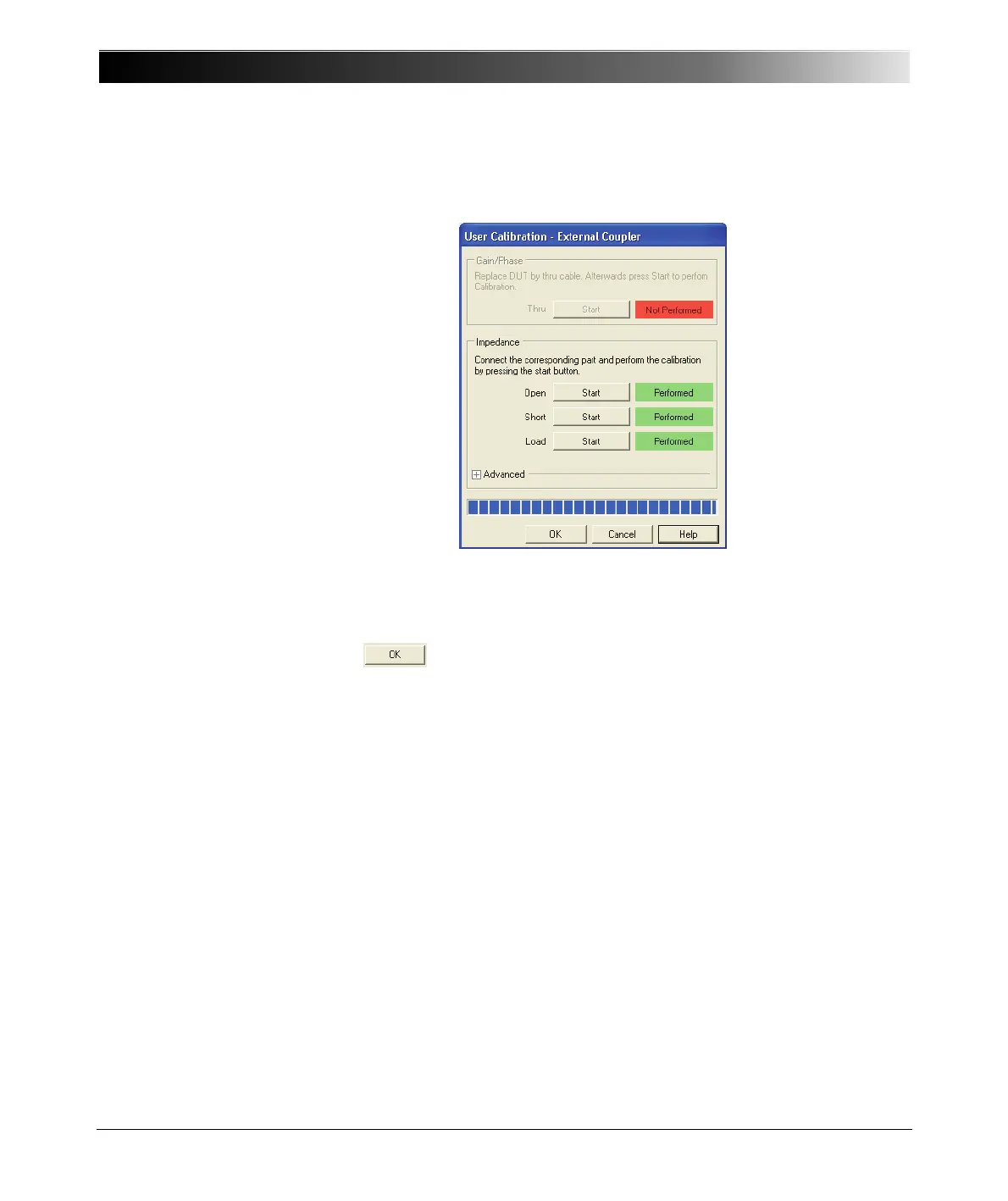

11.After the calibration has been finished, the calibration window looks like
shown below.
Hint: A yellow warning symbol displayed close to Advanced indicates that
the short delay and/or the load resistance entered in the Advanced area
differ from the factory settings.
12.Click . You have done the Impedance calibration in the
Frequency Sweep (External Coupler) mode.
