CP TD12/15 User Manual
44 OMICRON
For the measurement of C
T
, the HV-output has to be attached to the TV winding. The other windings are
connected to IN A and IN B. This way, also C
LT
and C
HT
could be measured (see Figure 5-10 and Table
5-6 below).

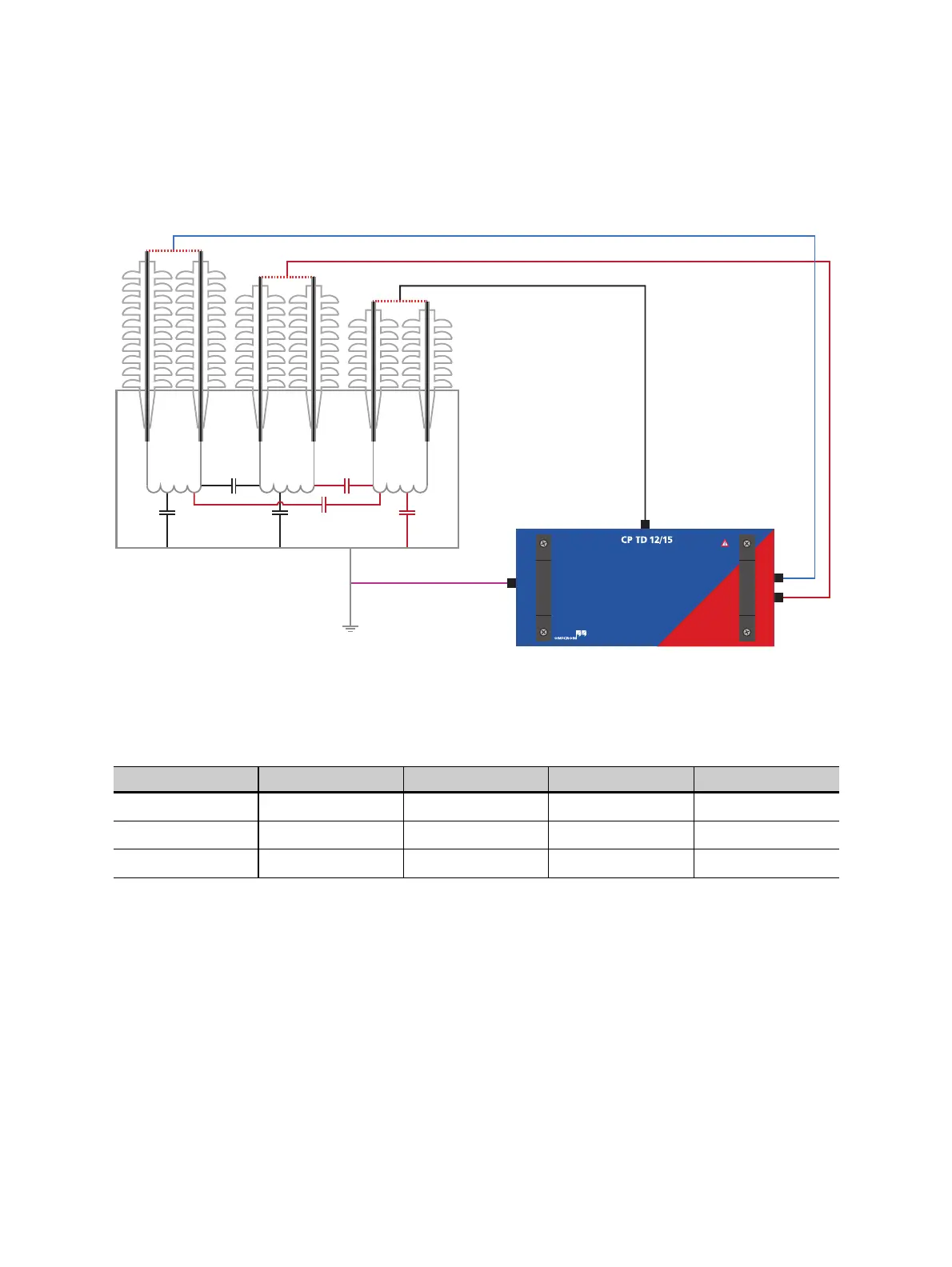

Figure 5-11: CP TD12/15 connected to a three-winding transformer for the measurement of C
T
With this setup the following 3 configurations are available:
Table 5-7: Modes available with a measurement setup as seen in Figure 5-11
Mode IN A IN B Ground Result
GSTg-(A+B) Guarded Guarded Measured C
T
UST-A Measured Guarded Guarded C
LT
UST-B Guarded Measured Guarded C
HT
LVHV
C
HL
C
L
C
H
C
LT
C
T
C
HT
TV
IN A
IN B
HV output
Measurement
ground
