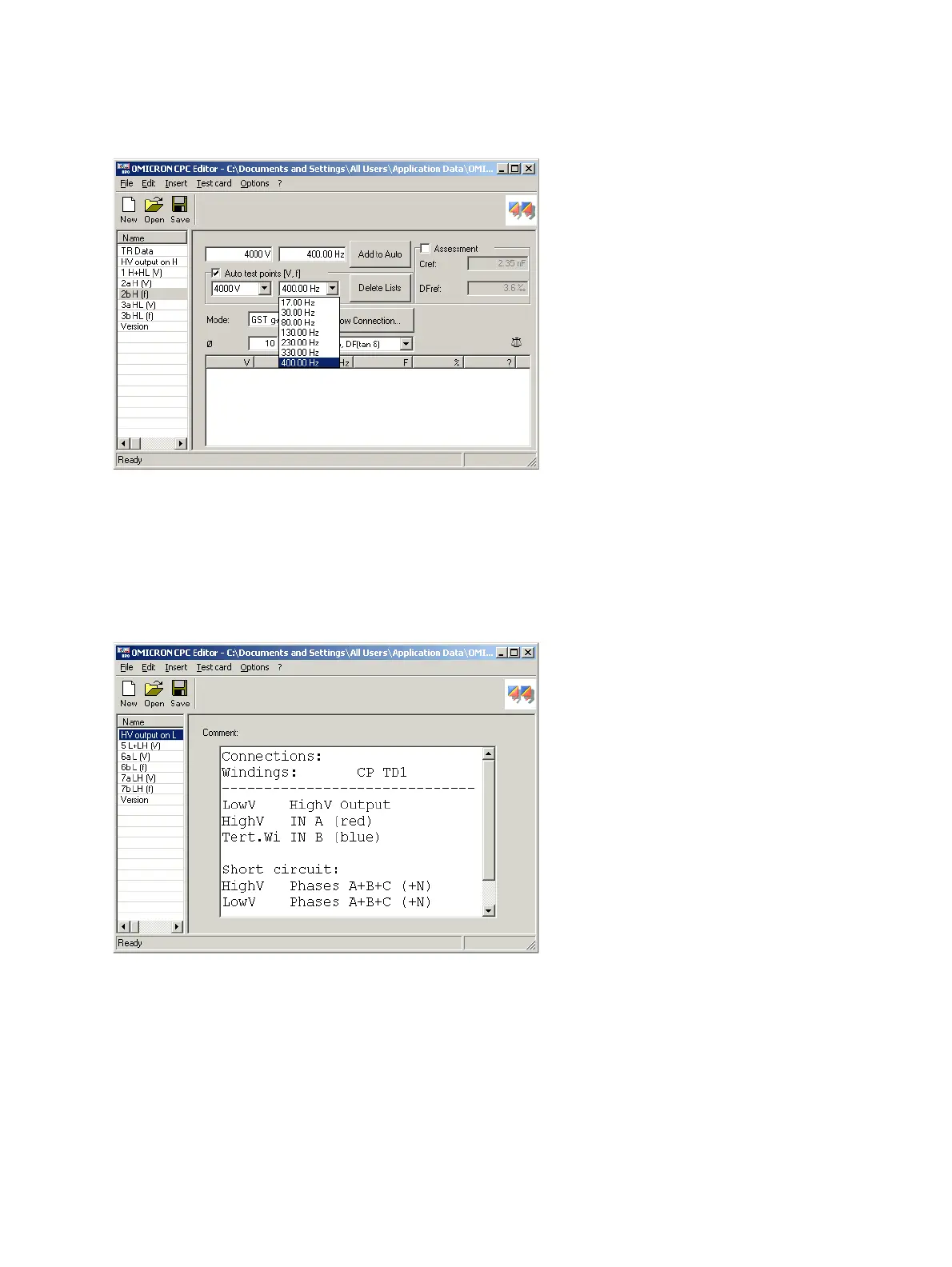

Figure 5-17: Frequency-scan of high-voltage windings to tank and core (GST gA+B)
The other tests for H
L
are prepared analogously to the examples.
Second file
A second test file contains the tests with the LV-winding connected to the HV-output of the CP TD12/15.
Figure 5-18 shows the first screen with the connection instructions.
Figure 5-18: Connection instructions for the tests with energized LV-winding
