Omron DST1-ID12SL-1 User Manual

129
Examples of Wiring for Each Application Section 8-2
8-2-5 Limit Switch Dual Channel Inputs and a Manual Reset

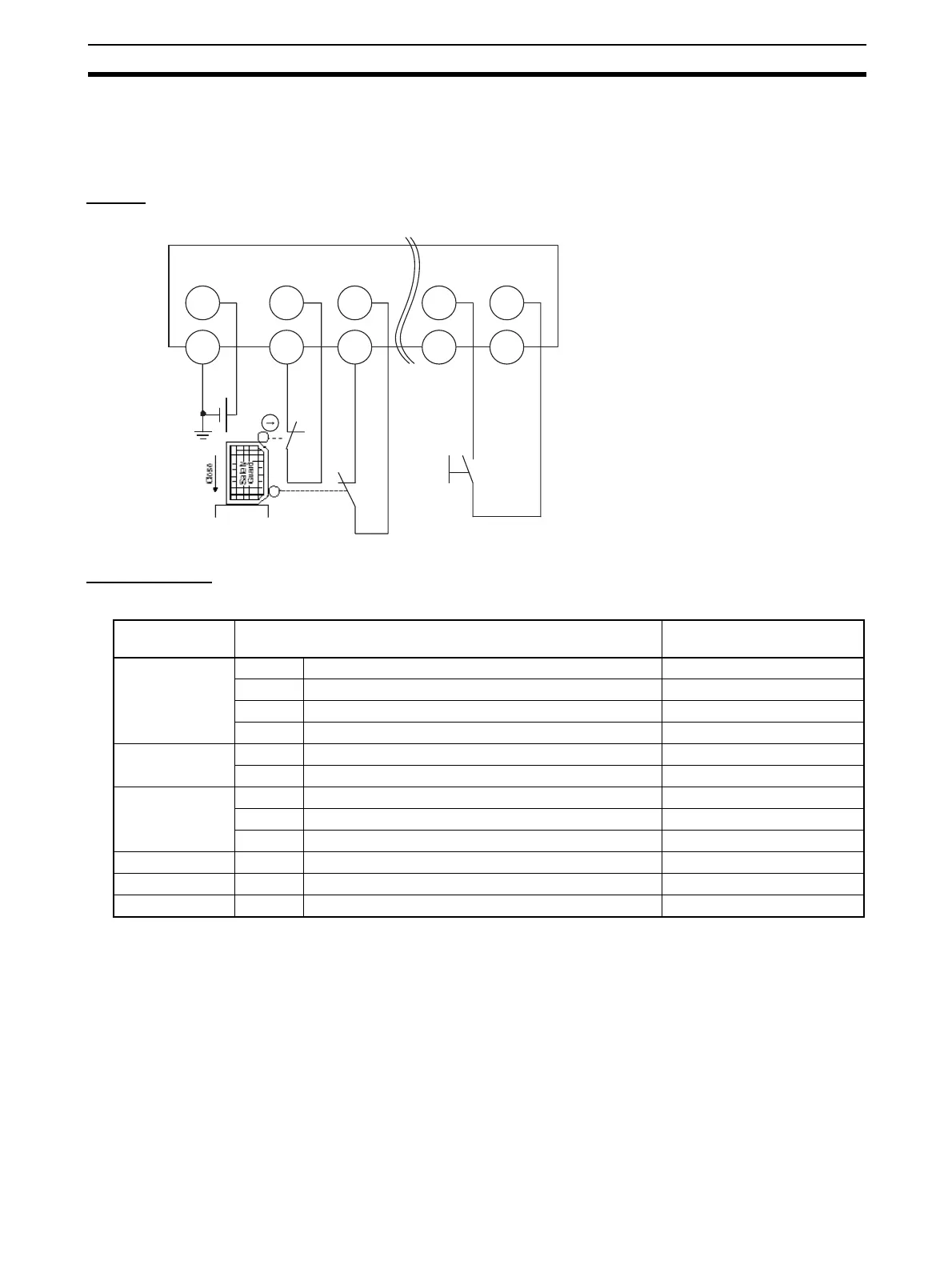

An example of the wiring and configuration when using the DST1-ID12SL-1 is
shown below.
Wiring
Configuration
11
12
23
24
S1
E1
S2
S3
GND
E1: 24-V DC Power Supply (S8@@)
S1: Safety Limit Switch (D4D or D4B)
(positive opening mechanism)
S2: Limit switch
S3: Reset switch
IN0
T0 T1
IN
11
T1
T2
G
IN1V
G
Parameter
group
Parameter name Value
Safety Input 0 0008 Safety Input 0 Channel Mode Test pulse from test out
0009 Safety Input 0 Test Source Test Output 0
0054 Dual Channel Safety Input 0/1 Mode Dual Channel Equivalent
0055 Dual Channel Safety Input 0/1 Discrepancy Time 100 x 10 ms
Safety Input 1 0012 Safety Input 1 Channel Mode Test pulse from test out
0013 Safety Input 1 Test Source Test Output 1
Safety Input 11 0052 Safety Input 11 Channel Mode Used as standard input
0053 Safety Input 11 Test Source Not Used
0064 Dual Channel Safety Input 10/11 Mode Single Channel
Test Output 0 0001 Test Output 0 Mode Pulse Test Output
Test Output 1 0002 Test Output 1 Mode Pulse Test Output
Test Output 2 0003 Test Output 2 Mode Power Supply Output
