Omron DST1-ID12SL-1 User Manual

130
Examples of Wiring for Each Application Section 8-2
8-2-6 Safety Light Curtain Input

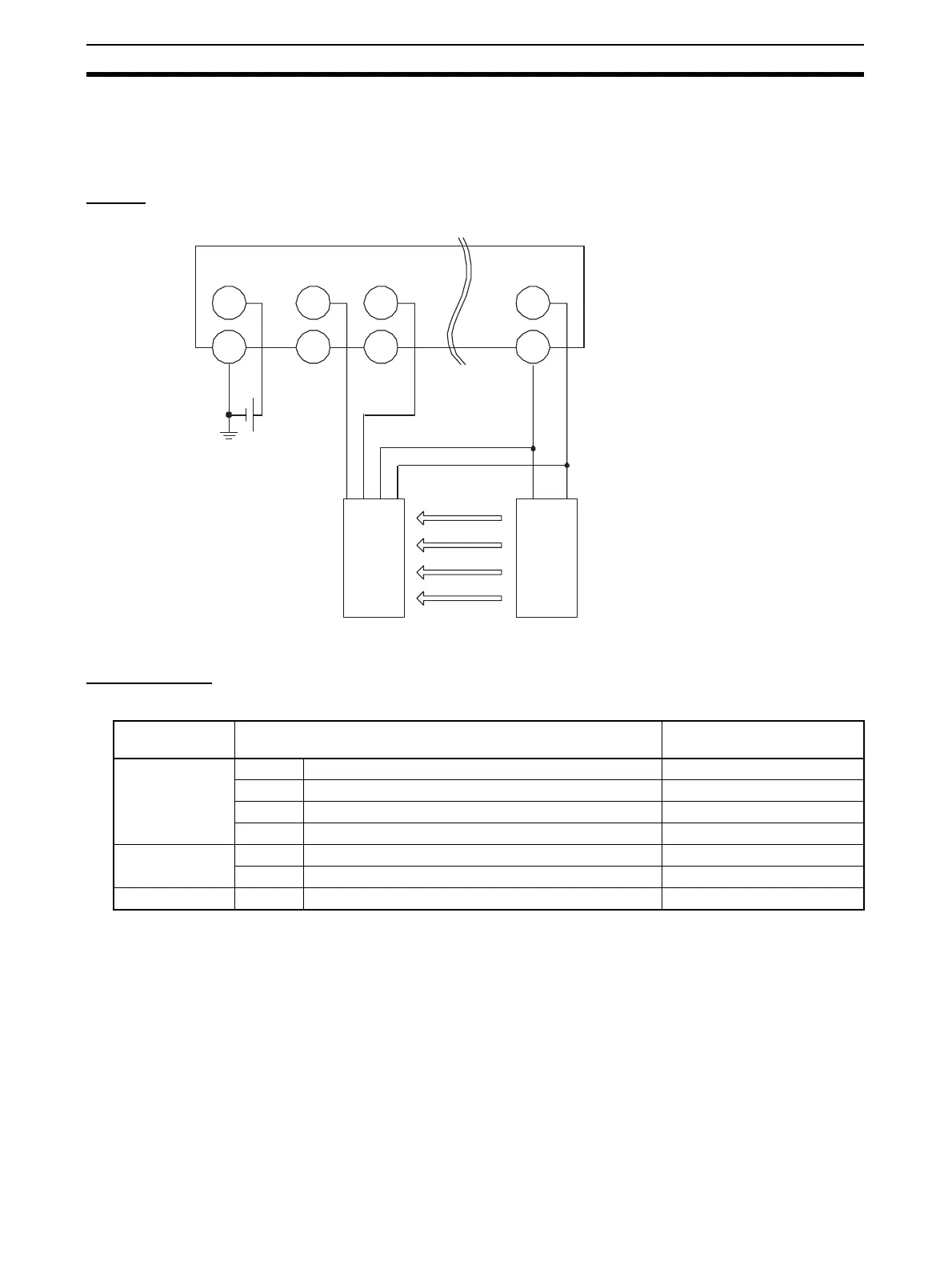

An example of the wiring and configuration when using the DST1-ID12SL-1 is
shown below.
Wiring
Configuration
V
G
IN0
T0
IN1
T1
E1
T2
G
GND
0V
+24V
F3SN-A
EmitterReceiver
OSSD1
OSSD2
0V
+24V
E1: 24-V DC Power Supply (S8@@)
F3SN-A: Safety Light Curtain
Parameter
group
Parameter name Value
Safety Input 0 0008 Safety Input 0 Channel Mode Used as safety input
0009 Safety Input 0 Test Source Not Used
0054 Dual Channel Safety Input 0/1 Mode Dual Channel Equivalent
0055 Dual Channel Safety Input 0/1 Discrepancy Time 100 x 10 ms
Safety Input 1 0012 Safety Input 1 Channel Mode Used as safety input
0013 Safety Input 1 Test Source Not Used
Test Output 2 0003 Test Output 2 Mode Power Supply Output
