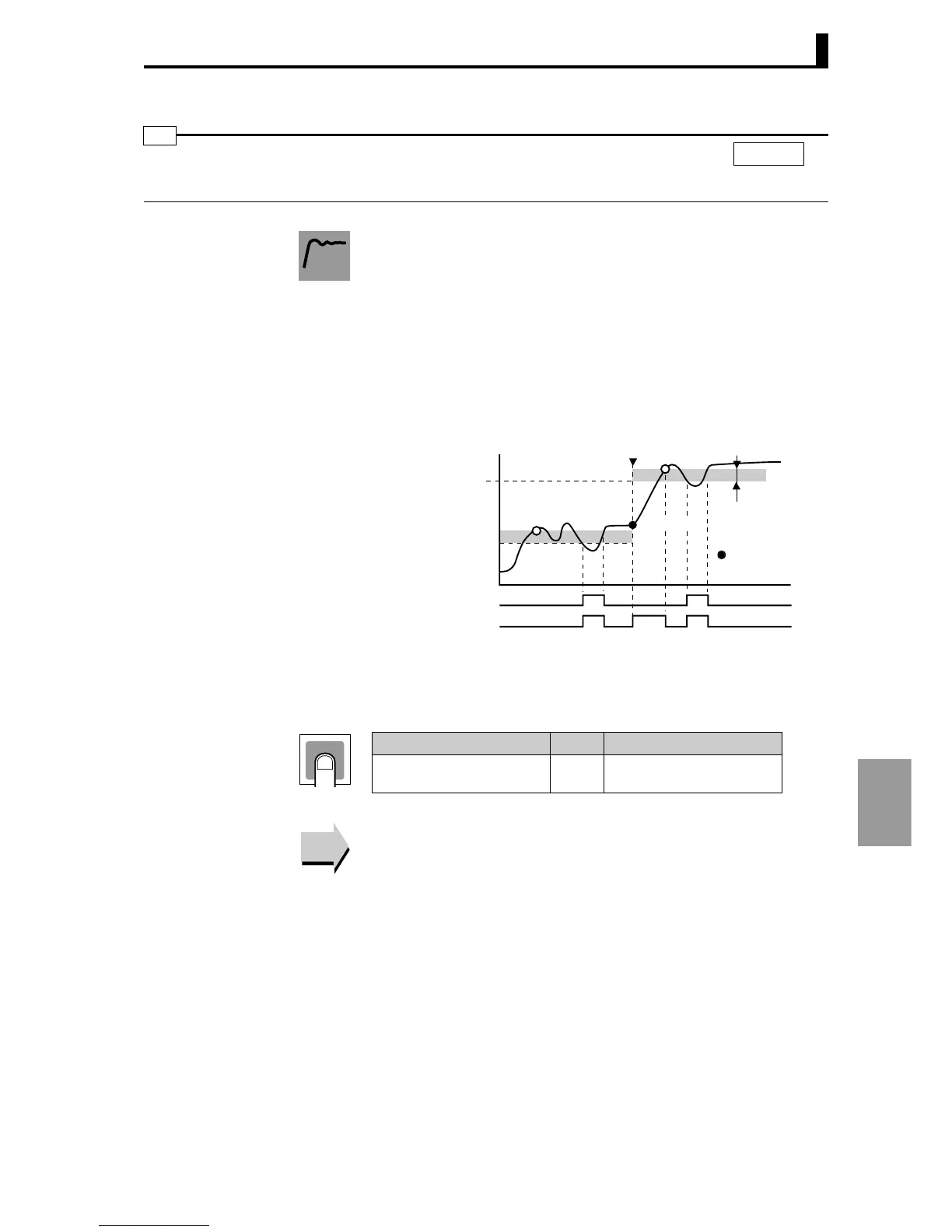

8.12 Alarm setting level (l.3)
8-57
Setting data
• Use this setting to select the condition for restarting the standby
sequence after it has been canceled.
• Condition A: Operation startup (including power on), when an alarm
value (alarm upper- and lower-limit) or input shift value
(input value for input calibration 1 and 2, input shift 1
and 2) is changed, or when the SP is changed.
• Condition B: Power on
• The following example shows operation using a lower-limit alarm
with standby sequence.
• After changing the standby sequence restart setting, a software
reset must be executed or the power turned off and on to make the
change take effect.
● Related setting data
"Alarm
∗ type" (Alarm setting level) (P.8-54)
"Alarm
∗ latch" (Alarm setting level) (P.8-55)
Standby sequence restart
rest
Alarm types 1 to 4 = With standby sequence
CH
l.3
Function
SP change
Alarm hysteresis
Alarm point
Alarm output: Condition A
Condition A only
Condition A only
Alarm output: Condition B
Alarm point
(after change)
O : Standby sequenc
e
off point
O : Standby sequenc
e
restart point
Setting
Setting range Units Default value
a: Condition A
b: Condition B
− a: Condition A
Reference
Reference
