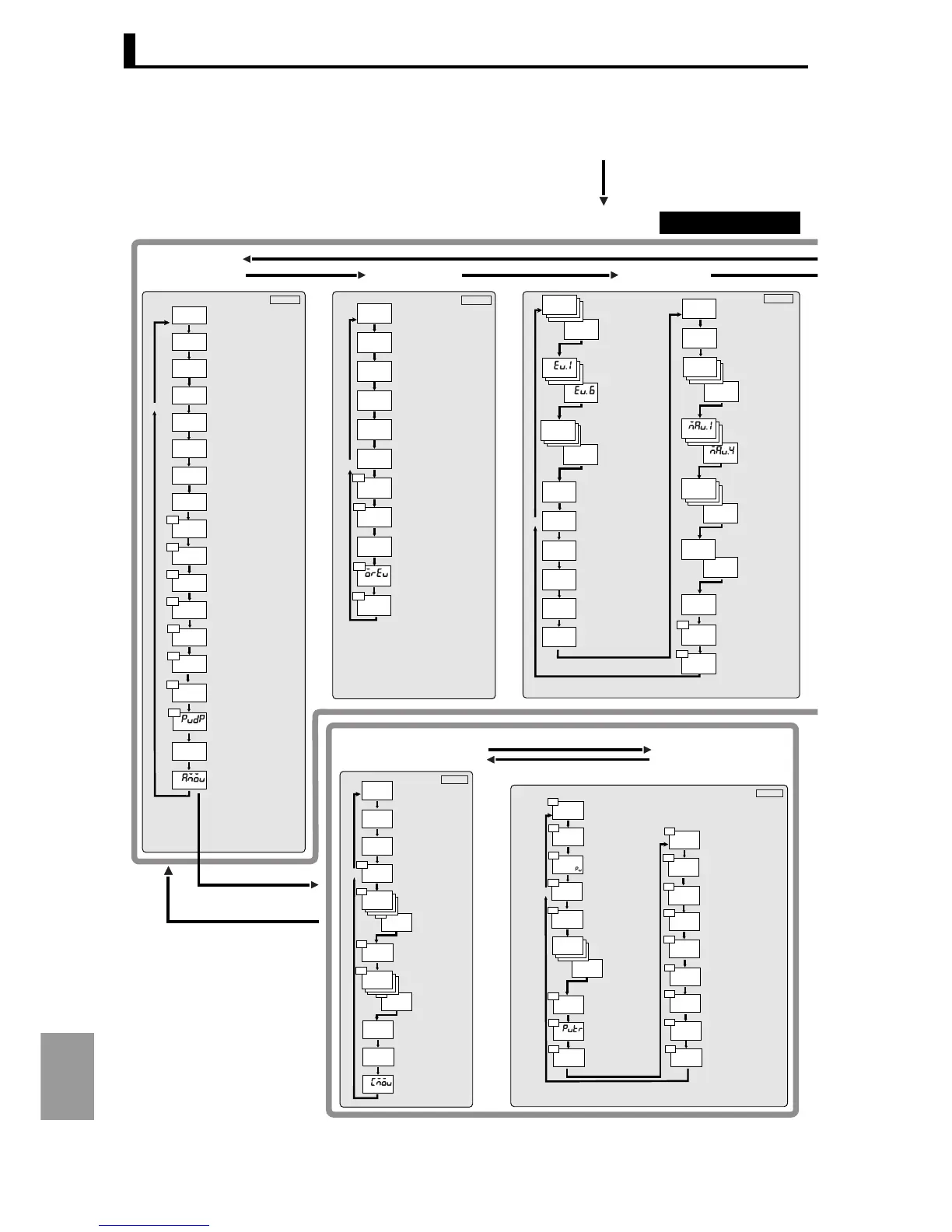

Input Initial
Setting Level
Control Initial
Setting 2 Level
Control Initial
Setting Level
CH-N: Number of
enabled channels
CMOV:
Move to calibration level
-1999-9999
PF1.1:
PF1 monitor / Setting item 1
0-19
PF1.2: PF1 monitor /
Setting item 2
0-19
PF1.5: PF1 monitor /
Setting item 5
0-19
PF2.1: PF2 monitor /
Setting item 1
0-19
INIT:
Parameter initialization
OFF / ON
PF2.2: PF2 monitor /
Setting item 2
0-19
PF2.5: PF2 monitor /
Setting item 5
0-19
PF1: PF1 setting
OFF/RUN/STOP/R-S/ALLR/
ALLS/AT/BANK/A-M/PFDP
PF2: PF2 setting
OFF/RUN/STOP/R-S/ALLR/
ALLS/AT/BANK/A-M/PFDP
RAMM: RAM write mode
BKUP / RAM
P-ON: Operation at power On
CONT / STOP / MANU
PIDH: PID set automatic
selection hysteresis
0.10-99.99
CJC.1: Input 1
Cold junction compensation
OFF / ON
CJC.4: Input 4
Cold junction
compensation
OFF / ON
ALFA: α
0.00-1.00
PVTR: PV tracking
OFF / ON
SPTR: SP tracking
OFF / ON
AT-G: AT calculated gain
0.1-10.0
TATE: Temporary AT execute
judgement deviation
0.0-100.0
∗1 Heating / cooling control
PIDI: PID set automatic
selection data
PV / DV
P-DB: PV dead band
0-99999
ORLM:
MV change rate limit mode
Mode 0:0 / Mode 1:1
AT-H: AT hysteresis
0.1-9.9
RBMP: Bumpless at Run
Disabled: OFF / Enabled: ON
PMEC:
Operation at potentiometer
input error
Stop: OFF / Continue: ON
DOST:
Disturbance overshoot
adjustment function
OFF / ON
MANT:
Manual output method
HOLD / INIT
MANI:Manual MV initial value
-5.0-105.0 (standard type) ∗1
LCMA:
Limit cycle MV amplitude
5.0-50.0
I1-T: Input 1 type
0-19
I2-T: Input 2 type
0-19
I1DU: Input 1 Temperature units
°
C / °F
I2DU: Input 2 Temperature units
°C / °F
PVDP:
PV decimal point display
OFF (0) / ON (1)
DP: Decimal point position
0-4
I3-T: Input 3 type
0-19
I3DU: Input 3 Temperature units
°C / °F
I4-T: Input 4 type
0-19
I4DU: Input 4 Temperature units
°C / °F
INP.1:
Scaling input value 1
DSP.1: Scaling display value 1
-19999-scaling display
value 2-1
INP.2:
Scaling input value 2
DSP.2: Scaling display value 2
Scaling display value 1 +
1-99999
RSPH: Lower limit of sensor
setting range to upper limit of
sensor setting range
RSPL: Lower limit of sensor
setting range to upper limit of
sensor setting range
SNC:
Sensor induction noise reduction
50Hz / 60Hz
AMOV:
Move to advanced
function setting level
-1999-9999
CO1-T:
Linear current output 1 type
0-20 mA (0) / 4-20 mA (1)
SL-L: SP lower limit
∗2
OREV: Forward reverse operation
Reverse: OR-R / Forward: OR-D
CO2-T:
Linear current output 2 type
0-20 mA (0) / 4-20 mA (1)
CO3-T:
Linear current output 3 type
0-20 mA (0) / 4-20 mA (1)
SL-H: SP upper limit
∗1
CO4-T:
Linear current output 4 type
0-20 mA (0) / 4-20 mA (1)
CLFL: Closed / Floating
Floating: FLOAT / Closed: CLOSE
O1-T: Output 1 type
Pulse voltage output (0) /
Linear current output (1)
O3-T: Output 3 type
Pulse voltage output (0) /
Linear current output (1)
MODE: Control mode
∗3
∗1 Temperature: SP lower limit + 1 to upper limit of
sensor setting range
∗2 Temperature: Lower limit of sensor setting range
to SP upperlimit - 1
∗3 1 / 4 input: Standard (0) / heating or cooling (1)
Standard (0) / heating or cooling (1) /
Standard with remote SP (2) /
Heating or cooling (3) with remote SP /
Proportional (4) / Cascade standard (5) /
Cascade heating or cooling (6)
EV.1: Event input 1 allocation
0 -25
EV.6: Event input 6
allocation
0-25
SBO.1:
Auxiliary output 1 allocation
0-36
SBO.4:
Auxiliary output 4
allocation
0-36
TRH.1:
Transfer output 1 upper limit
TRL1:
Transfer output 1 lower limit
TRH.2:
Transfer output 2 upper limit
TRL.2:
Transfer output 2 lower limit
TRH.3:
Transfer output 3 upper limit
TRL.3:
Transfer output 3 lower limit
OUT.1: Control / Transfer
output 1 allocation
0-32
OUT.4:
Control / Transfer
output 4 allocation
0-32
LAG.1: First order lag
operation 1 enabled
OFF / ON
LAG.4:
First order lag
operation 4
e
nabled
OFF / ON
MAV.1: Movement
average 1 enabled
OFF / ON
MAV.4: Movement
average 4 enabled
OFF / ON
SQR.1: Extraction of
square root 1 enabled
OFF / ON
SQR.4: Extraction of
square root 4
e
nabled
OFF / ON
FNC.1: Broken-line
approximation 1 enabled
OFF / ON
SCL.1: Straight-line
approximation 1 enabled
OFF / ON
SCL.2: Straight-line
approximation 2
enabled
OFF / ON
CALB: Motor calibration
OFF / ON
MOT: Travel time
1-999
TRH.4:
Transfer output 4 upper limit
HRL.4:
Transfer output 4
l
ower limit
